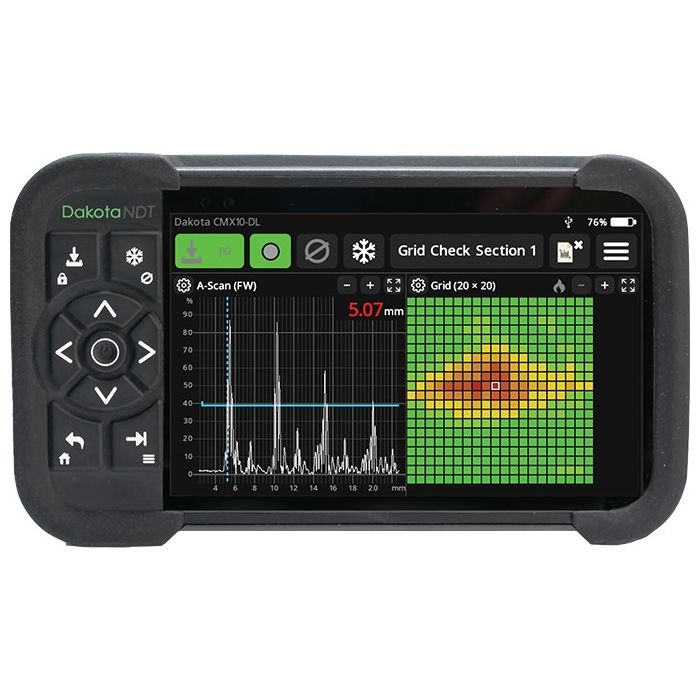

Dakota CMX10-DL Full Wave Capture Thickness Gauge

Dakota CMX10-DL With Dual Element Transducer

This is not just another A- Scan thickness gauge, this is an A- Scan gauge with full wave recording, B- Scan, TCG and 2nd layer, corrosion & precision thickness in one easy to use, affordable gauge.

要約
- 要約
- Incredibly user friendly
  The Dakota CMX10-DL Full Wave Capture Thickness Gauge is easy to navigate, simple to set up, all functions and features can be selected from the Menu icon. Create up to 50 custom setups for routine thickness inspections.
  Confident probability of detection
  The Dakota CMX10-DL A-Scan Thickness Gauge boosts confidence in probability of detection (POD) through visual waveform analysis, signal optimization tools, and stability indicators that help inspectors verify and reduce false negatives on defects like pits or corrosion.
  Full traceability for reassurance of inspection quality
  Useful variables such as transducer information, calibration methods, dates and calibration times can all be recorded, ensuring a high degree of consistency and repeatability.
  See the full picture, not just a number
  A-Scan and B-Scan recording lets inspectors visualize the material profile, review scans and accurately locate corrosion, pits and other defects.

  Enhanced Time Corrected Gain (TCG) and Backwall Echo Attenuation (BEA), plus flexible filtering and averaging, helps bring out critical signals in noisy or attenuative materials.
  The Dakota CMX10-DL is a powerful ultrasonic full wave thickness gauge designed for both corrosion surveys and high-precision measurements, in a rugged, field-ready package inspectors can rely on every day.
  Touchscreen and button keypad supports operation in the harshest environments.

  Heavy duty, rubberized, impact resistant, dust and waterproof case up to IP65.

  Up to 20,000 A-Scans on 128MB internal storge or approximately 5 million on a 32GB external memory card.

  Up to 15 hours battery life with LI-Ion Rechargeable Smart Battery or Mains Power Supply.

  Enhanced Time Corrected Gain (TCG) & Backwall Echo Attenuation (BEA), improving detection of porosity, inclusions, and cracks.

  Compatible with DakMaster™ for instant report generation and firmware updates.
特長
- 特長

  Dakota CMX10-DL Full Wave Capture Thickness Gauge

  Dakota CMX10-DL Features Explained
  Time Corrected Gain (TCG)
  Improve possibility of detection
  Time Corrected Gain (TCG) and filtering lets you lift later echoes without saturating the near surface. That is useful on rough or heavily corroded backwalls where the important echoes are weak and buried in noise.
  Backwall Echo Attenuation (BEA) – enables on screen monitoring of backwall signal amplitude. A drop in backwall amplitude indicates an issue, useful in composite inspections and many other materials.
  Second Layer Inspection
  Less intrusive inspection better remaining life assessment
  The second layer/cladding measurement feature is about seeing the true condition of the base metal and liner separately.
  The gauge interprets multiple echoes so it can distinguish the outer wall from the inner liner or cladding layer beneath. In practice, that means you can get one reading for total wall and another that represents the remaining thickness of the inner liner, or outer liner, even when it is behind a coating or outer shell.
  Crack Prove-Up Capability
  Fast confirmation of critical flaw
  High-resolution, accurate crack prove-up capability for fast confirmation of critical flaws, even in complex geometries.
  The Dakota CMX10-DL Thickness Gauge increases the probability of detection of hard to detect pits and cracks using traditional angle transducer inspection methods, to supporting confident fitness-for-service decisions.
  Image Collect
  For guided inspection locations
  Upload a custom photo or CAD model of the part via DakMaster™ and then tap on that image to drive the next measurement location directly on the gauge itself.
  Internal Defect
  With point-to-point measurement
  B-Scan supports additional identification of defects in a composite layer beyond that of a traditional A- Scan gauge.
  Cursors for point to point measurement provide accurate depth measurement.
  Overlay Comparison
  Identify differences in waveforms
  The Dakota CMX10-DL ultrasonic thickness gauge can help identify differences in waveform signal patterns to indicate changes in structure or areas of concern.
  From inspection to professional reports at the click of a button
  It’s not all about inspection, it’s what you do next that counts. Save up to 30% of your working week by producing professional inspection reports in seconds using DakMaster™ software.
  DakMaster™
  Click Here
  Single Element Transducers
  Click Here
  Dual Element Transducers
  Click Here

Dakota CMX10-DL Full Wave Capture Thickness Gauge

Model	CMX10-DL
COR Screen Displayed Range	23.3” (592mm) (steel)
測定範囲	PE: 0.007” to 58.3” (0.18mm to 1480mm) (probe dependant), EE: 0.007” to 23.3” (0.18mm to 592mm) (probe dependant), EEV: 0.007” to 11.7” (0.18mm to 296mm) (probe dependant), 2nd Layer Thickness (PE2): 0.007” to 58.3” (0.18mm to 1480mm) (probe dependant), 2nd Layer Thickness ThruPaint™ (EE2): 0.007” to 23.3” (0.18mm to 592mm) (probe dependant)
速度の校正範囲	0.0079 to 0.7874 in/μs / (200 to 20000 m/sec)
COR Transmitter Pulse	Square
COR Transmitter Pulse Voltage (peak-to-peak)	50 - 200V (User Adjustable in 1Volt steps)
COR Pulse Rise Time	<10 ns
COR Pulse Duration	25 to 250nS (Dependent on probe frequency)
COR Gain Control	0-74dB in 0.1dB steps features: Time Controlled Gain, Auto80
周波数の範囲	1 - 20MHz
測定精度	0.001” (±0.01mm) or ±1% of Reading (whichever is largest) *@ 5MHz 1/4” on Steel.
分解能	±0.0001” (±0.001mm)
COR Min & Max Measurement	(Steel @ 5920m/s) Minimum: 0.007” (0.18mm) Maximum: 23.3” (592mm) (Delay: 0.1” - 35” (-3mm - 888mm))
校正方法	Zero (using the integral zero disc) , 1点式 , 2点式 , Custom Velocity, Preset Material
ゲート	Flank, Zero-Cross, Peak
COR Number Gates	1-3 Depending on Mode Selected
COR Filter Settings	Low Pass (10Mhz, 20Mhz, 30Mhz), High Pass (0.5Mhz, 2.5Mhz, 5Mhz) and Broadband
COR Time Corrected Gain (TCG)	Ramp, Curve (up to 16 points)
COR Pulse Repetition Frequencies (PRFs)	2KHz
Back Wall Echo Suppression
Vパス補正(二振動子の路程誤差補正)	Automatically corrects for V-path (Dakota NDT transducers only)
DakMaster Software™
DakMaster™ Mobile App
探触子の型	Dual Contact, Single Contact, Single Delay, Angular (Prove Up)
COR Auto Detect & Transducer Set Up	Feature compatible with ODU style Transducers
画面	800 x 480 pixels, Colour, Touchscreen, Graphical, TFT Display
画面のリフレッシュレート	60Hz
COR Waveform Refresh Rate	20Hz (50ms)
COR Display & Recall Facilities	Numerical Reading, A- Scan, B- Scan and Video Recordings can be stored and retrieved in Data logs
Aスキャン	Rectified +/-, RF, Full Wave
COR B-Scan	Timed Includes Recording and Analysis with 2 Curser Measurement
差分モード
COR Display Freeze	Freeze Screen and Overlay Signal on Screen
COR Expanded Gate	Expand signal displayed under gate
COR Transducer Stability Indicator	Speed 20Hz (50ms)
COR Display Colour Inversion	A- Scan Sunlight Assist
COR Brightness Adjust	Manual and automatic screen brightness level adjustment
COR Display Configurations	A-Scan, Statistics, Live Reading, Grid, Image Collect
COR Image Collect Library	Part Display Images (Multiple Formats)
COR Screen Share & Control	Remote Viewing Feature with Control
データ出力	USB and Bluetooth® LE Data Output
COR Log Formats	Sequential, Grid, Recording, Amplitude/Depth Colour Options
COR Screen Capture	On Gauge and Screen view function in DakMaster™
COR Note Ability	OBSTRUCT to indicate inaccessible, with notes
COR Full Traceability Feature	Set Up Library, Transducer Library, Calibration Library
COR Data Log File Format Options	Projects, Folders, Individual Files

仕様

Technical Specification

Dakota CMX10-DL Full Wave Capture Thickness Gauge

Part Number	Description
CMX10-DL	Dakota CMX10-DL Full Wave Capture Thickness Gauge
COR Operation of Gauge Controls	Keypad Only, Touchscreen Only or Keypad & Touchscreen Combined Control
本体寸法	7.1 x 4.1 x 2.0" (180 x 105 x 50mm)
本体重量	1.92lbs (872g)
使用温度	14ºF to 122ºF (-10 to 50ºC)
COR Probe Sockets Type(s)	1/2 x Lemo-00 1x ODU Smart Port
電源	LI-Ion - Rechargeable Smart Battery or Mains Power Supply
電池の寿命	9 to 15 hrs (Dependant on usage)
COR Ingress Protection (IP)	Dust tight and protected against low power water jets in any direction; equivalent to IP65
証明書	校正証明書
COR Warranty	1 year limited
Manufacture	Made in the United Kingdom
内用品	Dakota CMX10-DL Gauge, Ultrasonic Couplant; 120ml (4fl oz), Power Supply (UK, EU and US) Adapters, Rechargeable Battery, Hand Strap (x1), Extension straps (x2), Screen Protector x 1, USB Cable, Calibration Certificate, User Guide, DakMaster™ download card, Transit Case

ダウンロード
- ダウンロード
  Dakota CMX10-DL Full Wave Capture Thickness Gauge - Instruction Manual Beta

  Dakota CMX10-DL Full Wave Capture Thickness Gauge - Datasheet

  Dakota CMX10-DL Full Wave Capture Thickness Gauge - CE Declaration of Conformity

  Dakota CMX10-DL Full Wave Capture Thickness Gauge - UKCA Declaration of Conformity

  Dakota CMX10-DL Rechargeable Smart Battery PACK - Material Safety Datasheet
コード番号
- コード番号

  Dakota CMX10-DL Full Wave Capture Thickness Gauge
  No data found!!
  - Dakota CMX10-DL Full Wave Capture Thickness Gauge

    コード番号 : CMX10-DL
アクセサリー
- アクセサリー

  Dakota CMX10-DL Full Wave Capture Thickness Gauge
  - Screen Protector, Pack of 5
    コード番号T92033669
  - Hand Strap (including extension pieces)
    コード番号T92033670
  - Transit Case
    コード番号T92033673
  - USB Cable
    コード番号T92033668
  - Rechargeable Smart Battery Pack
    Li-Ion 10.8V, 3.35Ah, 36.2Wh
    コード番号T92033672
  - Power Supply with UK, EU and US Adapters
    コード番号T92033671

Home
Thickness Gauges
試料の厚さ・探傷
Dakota CMX10-DL Full Wave Capture Thickness Gauge

Dakota CMX10-DL Full Wave Capture Thickness Gauge

This is not just another A- Scan thickness gauge, this is an A- Scan gauge with full wave recording, B- Scan, TCG and 2nd layer, corrosion & precision thickness in one easy to use, affordable gauge.

Dakota CMX10-DL Full Wave Capture Thickness Gauge - User Friendly Touchscreen & Keypad

Incredibly user friendly

The Dakota CMX10-DL Full Wave Capture Thickness Gauge is easy to navigate, simple to set up, all functions and features can be selected from the Menu icon. Create up to 50 custom setups for routine thickness inspections.

Dakota CMX10-DL Full Wave Capture Thickness Gauge - Pinch & Zoom

Confident probability of detection

The Dakota CMX10-DL A-Scan Thickness Gauge boosts confidence in probability of detection (POD) through visual waveform analysis, signal optimization tools, and stability indicators that help inspectors verify and reduce false negatives on defects like pits or corrosion.

Dakota CMX10-DL Full Wave Capture Thickness Gauge - 4 Screens in One

Full traceability for reassurance of inspection quality

Useful variables such as transducer information, calibration methods, dates and calibration times can all be recorded, ensuring a high degree of consistency and repeatability.

See the full picture, not just a number

A-Scan and B-Scan recording lets inspectors visualize the material profile, review scans and accurately locate corrosion, pits and other defects.

Enhanced Time Corrected Gain (TCG) and Backwall Echo Attenuation (BEA), plus flexible filtering and averaging, helps bring out critical signals in noisy or attenuative materials.

要約

Dakota CMX10-DL Full Wave Capture Thickness Gauge

The Dakota CMX10-DL is a powerful ultrasonic full wave thickness gauge designed for both corrosion surveys and high-precision measurements, in a rugged, field-ready package inspectors can rely on every day.

Touchscreen and button keypad supports operation in the harshest environments.
Heavy duty, rubberized, impact resistant, dust and waterproof case up to IP65.
Up to 20,000 A-Scans on 128MB internal storge or approximately 5 million on a 32GB external memory card.
Up to 15 hours battery life with LI-Ion Rechargeable Smart Battery or Mains Power Supply.
Enhanced Time Corrected Gain (TCG) & Backwall Echo Attenuation (BEA), improving detection of porosity, inclusions, and cracks.
Compatible with DakMaster™ for instant report generation and firmware updates.

ダウンロード

Dakota CMX10-DL Full Wave Capture Thickness Gauge - Instruction Manual Beta
Dakota CMX10-DL Full Wave Capture Thickness Gauge - Datasheet
Dakota CMX10-DL Full Wave Capture Thickness Gauge - CE Declaration of Conformity
Dakota CMX10-DL Full Wave Capture Thickness Gauge - UKCA Declaration of Conformity
Dakota CMX10-DL Rechargeable Smart Battery PACK - Material Safety Datasheet

特長

Dakota CMX10-DL Full Wave Capture Thickness Gauge

Dakota CMX10-DL Features Explained

Time Corrected Gain (TCG)

Improve possibility of detection

Time Corrected Gain (TCG) and filtering lets you lift later echoes without saturating the near surface. That is useful on rough or heavily corroded backwalls where the important echoes are weak and buried in noise.
Backwall Echo Attenuation (BEA) – enables on screen monitoring of backwall signal amplitude. A drop in backwall amplitude indicates an issue, useful in composite inspections and many other materials.

Second Layer Inspection

Less intrusive inspection better remaining life assessment

The second layer/cladding measurement feature is about seeing the true condition of the base metal and liner separately.

The gauge interprets multiple echoes so it can distinguish the outer wall from the inner liner or cladding layer beneath. In practice, that means you can get one reading for total wall and another that represents the remaining thickness of the inner liner, or outer liner, even when it is behind a coating or outer shell.

Crack Prove-Up Capability

Fast confirmation of critical flaw

High-resolution, accurate crack prove-up capability for fast confirmation of critical flaws, even in complex geometries.

The Dakota CMX10-DL Thickness Gauge increases the probability of detection of hard to detect pits and cracks using traditional angle transducer inspection methods, to supporting confident fitness-for-service decisions.

Image Collect

For guided inspection locations

Upload a custom photo or CAD model of the part via DakMaster™ and then tap on that image to drive the next measurement location directly on the gauge itself.

Internal Defect

With point-to-point measurement

B-Scan supports additional identification of defects in a composite layer beyond that of a traditional A- Scan gauge.
Cursors for point to point measurement provide accurate depth measurement.

Overlay Comparison

Identify differences in waveforms

The Dakota CMX10-DL ultrasonic thickness gauge can help identify differences in waveform signal patterns to indicate changes in structure or areas of concern.

From inspection to professional reports at the click of a button

It’s not all about inspection, it’s what you do next that counts. Save up to 30% of your working week by producing professional inspection reports in seconds using DakMaster™ software.

製品の特長

Dakota CMX10-DL Full Wave Capture Thickness Gauge

Model	CMX10-DL
COR Screen Displayed Range	23.3” (592mm) (steel)
測定範囲	PE: 0.007” to 58.3” (0.18mm to 1480mm) (probe dependant), EE: 0.007” to 23.3” (0.18mm to 592mm) (probe dependant), EEV: 0.007” to 11.7” (0.18mm to 296mm) (probe dependant), 2nd Layer Thickness (PE2): 0.007” to 58.3” (0.18mm to 1480mm) (probe dependant), 2nd Layer Thickness ThruPaint™ (EE2): 0.007” to 23.3” (0.18mm to 592mm) (probe dependant)
速度の校正範囲	0.0079 to 0.7874 in/μs / (200 to 20000 m/sec)
COR Transmitter Pulse	Square
COR Transmitter Pulse Voltage (peak-to-peak)	50 - 200V (User Adjustable in 1Volt steps)
COR Pulse Rise Time	<10 ns
COR Pulse Duration	25 to 250nS (Dependent on probe frequency)
COR Gain Control	0-74dB in 0.1dB steps features: Time Controlled Gain, Auto80
周波数の範囲	1 - 20MHz
測定精度	0.001” (±0.01mm) or ±1% of Reading (whichever is largest) *@ 5MHz 1/4” on Steel.
分解能	±0.0001” (±0.001mm)
COR Min & Max Measurement	(Steel @ 5920m/s) Minimum: 0.007” (0.18mm) Maximum: 23.3” (592mm) (Delay: 0.1” - 35” (-3mm - 888mm))
校正方法	Zero (using the integral zero disc) , 1点式 , 2点式 , Custom Velocity, Preset Material
ゲート	Flank, Zero-Cross, Peak
COR Number Gates	1-3 Depending on Mode Selected
COR Filter Settings	Low Pass (10Mhz, 20Mhz, 30Mhz), High Pass (0.5Mhz, 2.5Mhz, 5Mhz) and Broadband
COR Time Corrected Gain (TCG)	Ramp, Curve (up to 16 points)
COR Pulse Repetition Frequencies (PRFs)	2KHz
Back Wall Echo Suppression
Vパス補正(二振動子の路程誤差補正)	Automatically corrects for V-path (Dakota NDT transducers only)
DakMaster Software™
DakMaster™ Mobile App
探触子の型	Dual Contact, Single Contact, Single Delay, Angular (Prove Up)
COR Auto Detect & Transducer Set Up	Feature compatible with ODU style Transducers
画面	800 x 480 pixels, Colour, Touchscreen, Graphical, TFT Display
画面のリフレッシュレート	60Hz
COR Waveform Refresh Rate	20Hz (50ms)
COR Display & Recall Facilities	Numerical Reading, A- Scan, B- Scan and Video Recordings can be stored and retrieved in Data logs
Aスキャン	Rectified +/-, RF, Full Wave
COR B-Scan	Timed Includes Recording and Analysis with 2 Curser Measurement
差分モード
COR Display Freeze	Freeze Screen and Overlay Signal on Screen
COR Expanded Gate	Expand signal displayed under gate
COR Transducer Stability Indicator	Speed 20Hz (50ms)
COR Display Colour Inversion	A- Scan Sunlight Assist
COR Brightness Adjust	Manual and automatic screen brightness level adjustment
COR Display Configurations	A-Scan, Statistics, Live Reading, Grid, Image Collect
COR Image Collect Library	Part Display Images (Multiple Formats)
COR Screen Share & Control	Remote Viewing Feature with Control
データ出力	USB and Bluetooth® LE Data Output
COR Log Formats	Sequential, Grid, Recording, Amplitude/Depth Colour Options
COR Screen Capture	On Gauge and Screen view function in DakMaster™
COR Note Ability	OBSTRUCT to indicate inaccessible, with notes
COR Full Traceability Feature	Set Up Library, Transducer Library, Calibration Library
COR Data Log File Format Options	Projects, Folders, Individual Files

Technical Specification

Dakota CMX10-DL Full Wave Capture Thickness Gauge

Part Number	Description
CMX10-DL	Dakota CMX10-DL Full Wave Capture Thickness Gauge
COR Operation of Gauge Controls	Keypad Only, Touchscreen Only or Keypad & Touchscreen Combined Control
本体寸法	7.1 x 4.1 x 2.0" (180 x 105 x 50mm)
本体重量	1.92lbs (872g)
使用温度	14ºF to 122ºF (-10 to 50ºC)
COR Probe Sockets Type(s)	1/2 x Lemo-00 1x ODU Smart Port
電源	LI-Ion - Rechargeable Smart Battery or Mains Power Supply
電池の寿命	9 to 15 hrs (Dependant on usage)
COR Ingress Protection (IP)	Dust tight and protected against low power water jets in any direction; equivalent to IP65
証明書	校正証明書
COR Warranty	1 year limited
Manufacture	Made in the United Kingdom
内用品	Dakota CMX10-DL Gauge, Ultrasonic Couplant; 120ml (4fl oz), Power Supply (UK, EU and US) Adapters, Rechargeable Battery, Hand Strap (x1), Extension straps (x2), Screen Protector x 1, USB Cable, Calibration Certificate, User Guide, DakMaster™ download card, Transit Case

コード番号

Dakota CMX10-DL Full Wave Capture Thickness Gauge

Dakota CMX10-DL Full Wave Capture Thickness Gauge
- コード番号 : CMX10-DL

アクセサリー

Dakota CMX10-DL Full Wave Capture Thickness Gauge

Screen Protector, Pack of 5
コード番号: T92033669
Hand Strap (including extension pieces)
コード番号: T92033670
Transit Case
コード番号: T92033673
USB Cable
コード番号: T92033668
Rechargeable Smart Battery Pack
Li-Ion 10.8V, 3.35Ah, 36.2Wh
コード番号: T92033672
Power Supply with UK, EU and US Adapters
コード番号: T92033671
