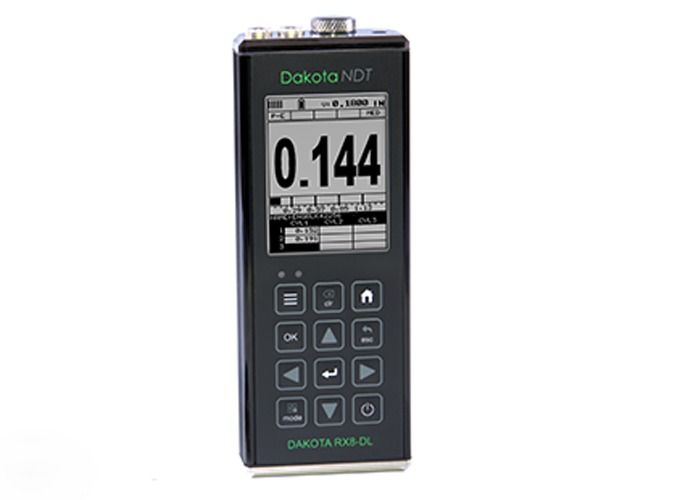

Dakota RX8-DL Sonic Tester
The Dakota RX8-DL Sonic Tester is our most advanced sonic tester designed for the racing industry.
- 要約
-
要約
-

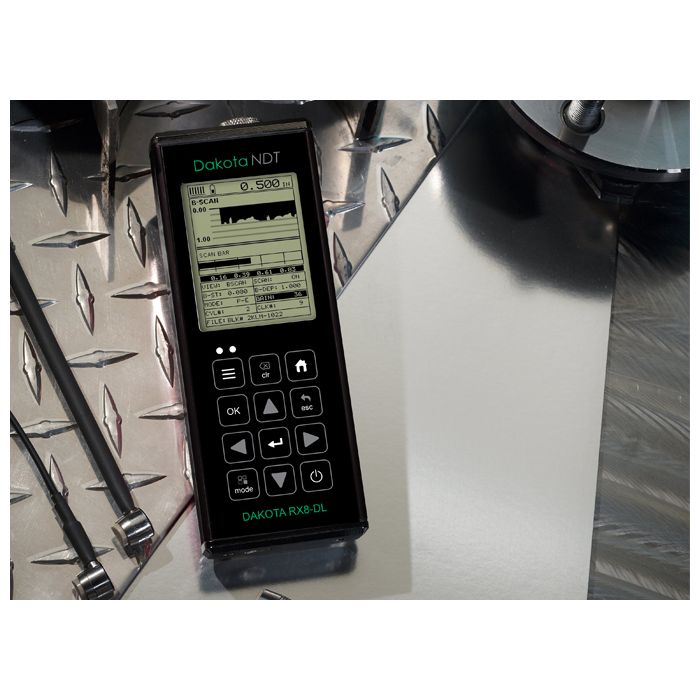

The Dakota RX8-DL Sonic Tester is most commonly used to measure the thickness of cylinder walls, head ports, decks, chassis tubing, body panels, and windshields. The time-based B-Scan feature of the Dakota RX8-DL Sonic Tester displays a cross section view to see the profile/contour of the back surface while scanning cylinders.
Transducer Options
A wide range of Dual Element Transducers available
-
- 特長
-
特長
Dakota RX8-DL Sonic Tester
Applications
Cylinders
Chassis Tubing
Roll Cages
Head Ports
Firmware Upgrades
Regularly checking and updating your firmware is crucial for maintaining performance, and ensuring compatibility with new features.
Make sure your Dakota Sonic Tester is running the latest firmware, select your gauge below.
Dakota Ultrasonic PR-8V
DakotaNDT RX8-DL
-
- 仕様
-
Technical SpecificationDakota RX8-DL Sonic Tester
Part Number Description Certificate Z-158-0004 Dakota RX8-DL Sonic Tester (PR-8V) Racing Operating Temperature -10 to 60ºC (14 to 140ºF) Racing Power Supply 3 x AA batteries and via USB Racing Battery Life Alkaline – 35 hrs, Nicad – 10 hrs and NI-MH – 35 hrs Racing Gauge Weight 383g (13.5oz) - including batteries Racing Gauge Dimensions 63.5 x 165 x 31.5mm (2.5 x 6.5 x 1.24”) 内用品 Unit, Standard Transducer, Couplant, Manual, Plastic Carrying Case and AA Batteries. PC Engine Mapping Software and Transfer Cable
-
- 適合規格
-
適合規格Dakota RX8-DL Sonic Tester
Factory calibration traceable to NIST & MIL-STD-45662A
-
- ダウンロード
-
ダウンロード
-
水中測定用超音波厚さ計 Elcometer UG20DL - 取扱説明書
-
水中測定用超音波厚さ計 Elcometer UG20DL - データシート
-
水中測定用超音波厚さ計 UG20DL - 適合宣言書
- コード番号
-
コード番号Dakota RX8-DL Sonic Tester
-
Dakota RX8-DL Sonic Tester (PR-8V)- コード番号 : Z-158-0004
-
Dakota RX8-DL Sonic Tester
The Dakota RX8-DL Sonic Tester is our most advanced sonic tester designed for the racing industry.
要約
Dakota RX8-DL Sonic Tester
The Dakota RX8-DL Sonic Tester is most commonly used to measure the thickness of cylinder walls, head ports, decks, chassis tubing, body panels, and windshields. The time-based B-Scan feature of the Dakota RX8-DL Sonic Tester displays a cross section view to see the profile/contour of the back surface while scanning cylinders.
Transducer Options
A wide range of Dual Element Transducers available
ダウンロード-
水中測定用超音波厚さ計 Elcometer UG20DL - 取扱説明書
-
水中測定用超音波厚さ計 Elcometer UG20DL - データシート
-
水中測定用超音波厚さ計 UG20DL - 適合宣言書
特長
Dakota RX8-DL Sonic Tester
Applications
Cylinders
Chassis Tubing
Roll Cages
Head Ports
Firmware Upgrades
Regularly checking and updating your firmware is crucial for maintaining performance, and ensuring compatibility with new features.
Make sure your Dakota Sonic Tester is running the latest firmware, select your gauge below.
Dakota Ultrasonic PR-8V
DakotaNDT RX8-DL
製品の特長Dakota RX8-DL Sonic TesterModel RX8-DL Racing Display Mode Racing Material thickness digits display Racing B-Scan cross sectional display Racing Combined B-Scan and digits display Racing Coating Thickness Display Racing Scan Bar Display Racing Measurement Range PE: 0.63 - 914.4mm (0.025 - 36")
EE: 2.54 - 101.6mm (0.100 - 4.0”)Racing Resolution 0.01mm (0.001”)Racing Velocity Range 305 - 18,542m/s (0.0120 - 0.7300in/μs)Racing Additional Features Racing High Speed Scan 10 - 200 readings per secondRacing Pulser 150 volt square wave pulserRacing Gain Manual or automatic gain control (AGC) with 50dB rangeRacing Timing Precision temperature controlled crystal oscillator (TCXO) timing with single shot 100MHz 8bit ultra-low power digitizerRacing Memory and Data Logging Grid (alpha numeric)
Engine Map (cylinder scans)Screen Capture: Bitmap graphic capture for quick documentation (.tif )
OBSTRUCT to indicate inaccessible locationsRacing Calibration Options Racing 1 - point Calibration Racing 2 - point Calibration Racing Material selection Racing Velocity (speed of sound) Racing Transducer Probe Type Dual ElementRacing Transducer Frequency Range 1 - 10MHzRacing V-path / dual path error correction AutomaticRacing Probe Zero Manual (via integrated probe disk)Racing Display 1/8in VGA grayscale display (240 x 160 pixels);
viewable area 2.4 x 1.8in (62 x 5.7mm)Racing Units (selectable) mm or inchesRacing LED Backlight on/off/autoRacing Repeatability / Stability Indicator Technical SpecificationDakota RX8-DL Sonic TesterPart Number Description Certificate Z-158-0004 Dakota RX8-DL Sonic Tester (PR-8V) Racing Operating Temperature -10 to 60ºC (14 to 140ºF) Racing Power Supply 3 x AA batteries and via USB Racing Battery Life Alkaline – 35 hrs, Nicad – 10 hrs and NI-MH – 35 hrs Racing Gauge Weight 383g (13.5oz) - including batteries Racing Gauge Dimensions 63.5 x 165 x 31.5mm (2.5 x 6.5 x 1.24”) 内用品 Unit, Standard Transducer, Couplant, Manual, Plastic Carrying Case and AA Batteries. PC Engine Mapping Software and Transfer Cable -
-
