Dakota MultiMax - 4 Channel Bolt Tension Monitor

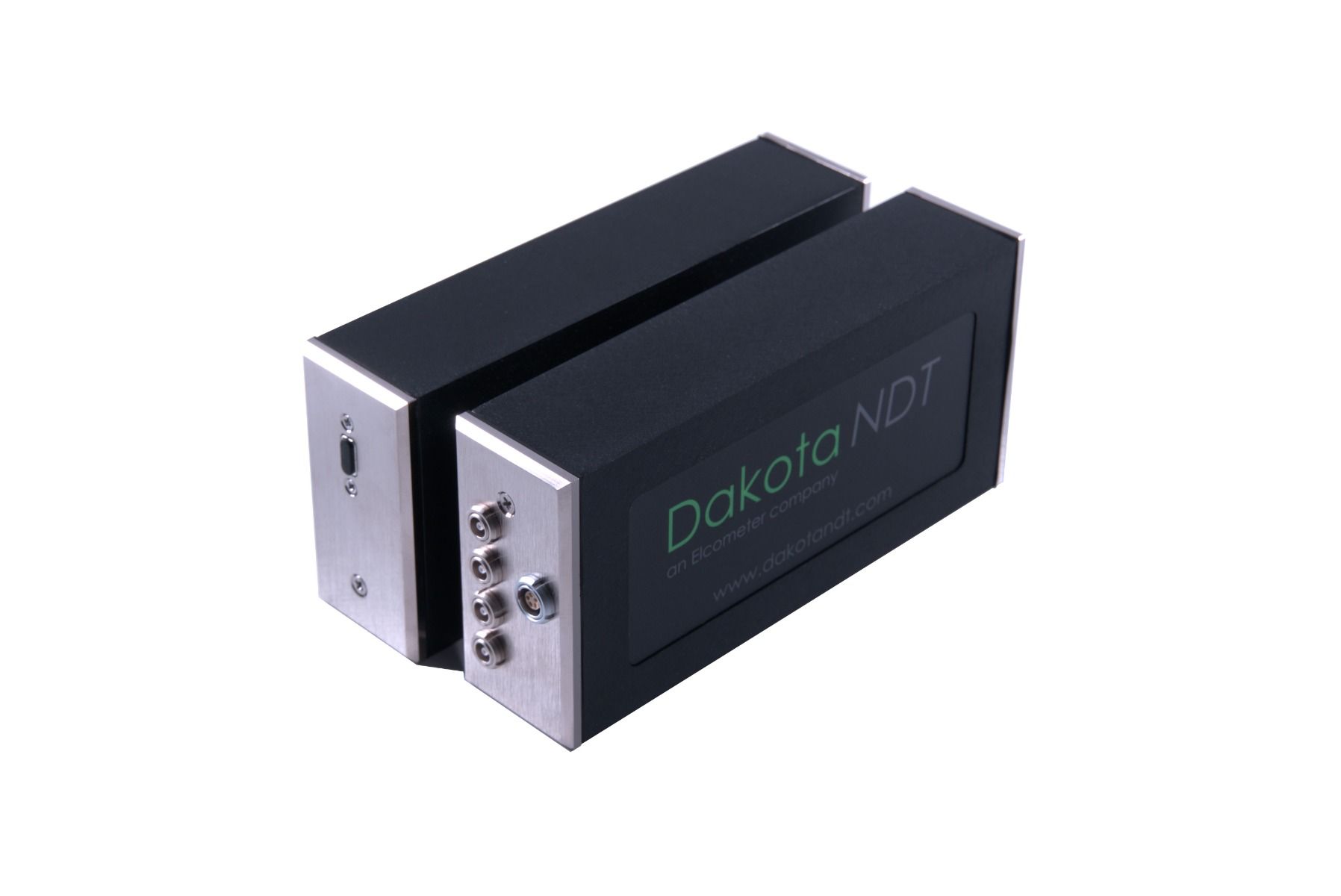

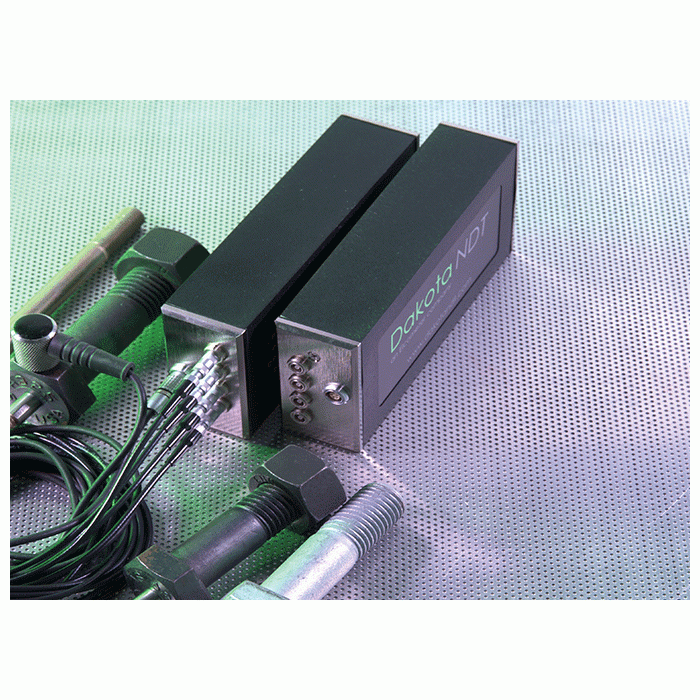

The MultiMax by Dakota NDT is a cutting-edge 4 Channel Ultrasonic Bolt Tension Monitor that delivers precise, real-time data on fastener stretch, load, stress, and strain – all from anywhere in the world.
- 要約
-
要約
-
The Dakota MultiMax revolutionizes fastener monitoring by directly measuring bolt tension with ultrasonic precision – eliminating the inaccuracies caused by friction. Now, imagine having absolute accuracy and real-time insights into your critical bolted joints, no matter how far away they are.
The Dakota MultiMax Bolt Tension Monitor provides remote, continuous measurement of fastener length changes. Seamlessly integrate it into your existing condition monitoring system with the intuitive Dakota MultiUI software. This powerful combination enables real-time condition monitoring of bolt elongation, empowering proactive maintenance and preventing costly failures. Plus, the MultiMax is easily expandable, allowing you to monitor hundreds of bolts simultaneously.
Gain unprecedented control and ensure the integrity of your bolted connections. Choose the Dakota NDT MultiMax.
-
- 特長
-
特長
Dakota MultiMax - 4 Channel Bolt Tension Monitor
Key Features and Benefits:
- Highly Accurate Measurements: The Dakota MultiMax measures the stretch (elongation), load, stress and %strain of a fastener under tension with extreme precision.
- Ultrasonic Technology: By sending an ultrasonic wave down the length of the fastener and measuring the change in transit time, the Dakota MultiMax provides accurate calculations, avoiding the limitations of torque-based methods.
- Multi-Channel Efficiency: With four independent channels, the Dakota MultiMax can simultaneously monitor four bolts, increasing productivity.
- Scalability: Multiple Dakota MultiMax modules can be stacked together, allowing users to monitor numerous channels from a single interface.
- User-Friendly Software: The Dakota MultiUI interface software simplifies setup and monitoring of the Dakota MultiMax, and can be accessed from local or remote locations.
- Remote Control: The built-in remote commander operating system enables remote control of individual modules and channels.
- Customizable Interface: Users have the option to create their own UI software platform, thanks to the Dakota MultiMax's built-in operating system.
- Durable and Compact: The Dakota MultiMax features an extruded aluminium body with nickel-plated aluminium end caps, meeting IP65 requirements, and weighs only 16 ounces.
- Versatile Transducer Options: The Dakota MultiMax supports single element transducers from 1MHz to 10 MHz, glue-on transducers for permanent installation, and various connector types.
- Automatic Features: Includes automatic zeroing, gating & display configuration.
- Temperature Monitoring: Real-time temperature monitoring and compensation ensure accurate measurements.
- Data Logging and Storage: Measurements can be auto stored, and data can be archived in various formats on the 4GB internal SD memory.
Warranty and Support:
The Dakota MultiMax comes with a 2-year limited warranty and is proudly made in the USA.
Applications
The MultiMax is ideal for various industries where precise bolt tension is critical including:
Automotive
Construction
Aerospace
Manufacturing
Energy
Firmware Upgrades
Regularly checking and updating your firmware is crucial for maintaining performance, and ensuring compatibility with new features.
Make sure your Dakota MultiMax is running the latest firmware, select your gauge below.
Dakota NDT MultiMax
-
- 製品の特長
-
Dakota NDT MultiMax 4 Channel Bolt Tension Monitor
製品の特長Dakota MultiMax - 4 Channel Bolt Tension Monitor
Model Multi Max BTM Measurement Range PE - 25.4 - 25,400mm (1 - 999”) EE, EEV速度の校正範囲 1250 - 13,99m/秒 (0.0492 - 0.5510 “/μ秒)自動温度補正 メモリとデータの記録 4GB internal memory , Fixed grid format校正のオプション 自動、固定、一点式と二点式探触子の型 一振動子周波数の範囲 1 - 10MHz単位(選択可能) in/mm, μs電池の残量アイコン 探触子のコネクタの形式 Microdot, Lemo and BNCUSB接続 温度センサー タイミング 高精度TCXO(温度補償水晶発振器)1回発振100MHz の低消費電力8ビットデジタイザーパルス発振器 Spike. Pulser Voltage: 100 – 200v Selectable step options Spike, Thin, Wide減衰 50 ohms Fixed周波数帯 広帯域1.8～19MHz（-3dB）フィルター水平方向直線性 +/- 0.4% FSW垂直方向直線性 +/- 1% FSH増幅器直線性 +/- 1 dB遅延 鋼測定用音速で25,400mm（0～999.9インチ）測定ゲート Three independent gates depending on measurement mode selected, with audible and visual alarms. Amplitude 5-95%, 1% steps自動設定 個々のボルトの探知、スコープ、設定プロセスの表示を自動化測定現場での校正 負荷と応力を使った精密測定用のベクトルまたは回帰補正曲線探知 ゼロ交差時間の単位 ナノ秒伸び 長さの変化（インチ/mm）を測定負荷 荷重負荷（KIPまたはMPa単位）をかけて測定応力 単位面積当たりの応力（インチ/インチまたはmm/mm）を測定ひずみ（%） 有効長に対する伸び率を測定ボルトの材質 設定済みまたは独自作成の材質リストから選択接着剤式 伸びが非常に小さい短いボルトの測定時に、トランスデューサーの配置エラー をなくす目的で使用可能
-
Dakota NDT MultiMax 4 Channel Bolt Tension Monitor
- 仕様
-
仕様Dakota MultiMax - 4 Channel Bolt Tension Monitor
コード番号 説明 証明書 Z-226-0001 Dakota MultiMax Bolt Tension Monitor
使用温度 -10～60ºC (14～140ºF) 電源 USB Only 本体重量 454g (16oz) - including batteries 本体寸法 76 x 165 x 38mm ( 3.0 x 6.5 x 1.5" )
-
- 適合規格
-
適合規格Dakota MultiMax - 4 Channel Bolt Tension Monitor
ASTM E1685-20
-
- ダウンロード
-
ダウンロード
-
Dakota MultiMax Bolt Tension Monitor Datasheet
-
Dakota MultiMax Bolt Tension Monitor - Instruction Manual
-
Dakota MultiMax Bolt Tension Monitor CE Certificate
-
Dakota MultiMax CE Certificate - FCC ICES
- コード番号
-
コード番号Dakota MultiMax - 4 Channel Bolt Tension Monitor
-
Dakota MultiMax 4 Channel Bolt Tension Monitor- コード番号 : Z-226-0001
-
