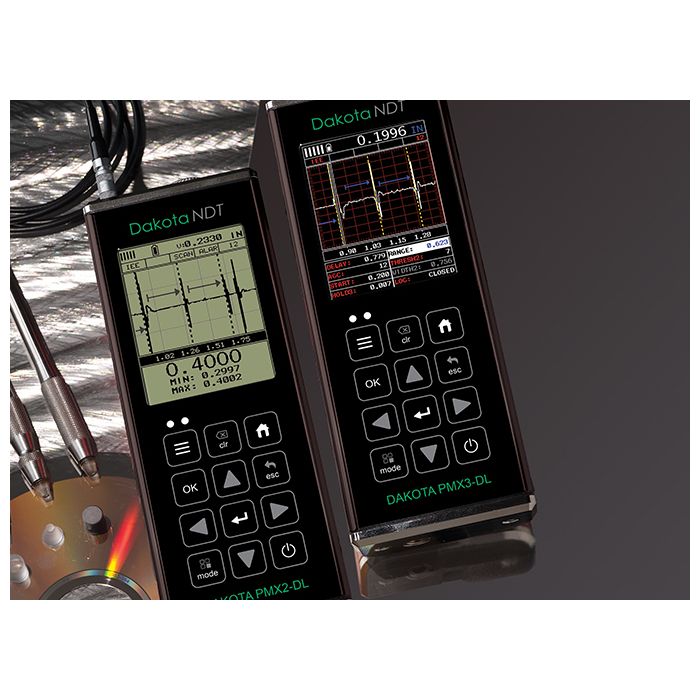

Dakota PMX Precision Thickness Gauges (PVX)
The Dakota PMX Precision Thickness Gauge can display the thickness value with A and B-Scan displays, allowing users to accurately assess a wide range of materials.
- 要約
-
要約
-
The Dakota PMX Precision Thickness Gauge offers user selectable resolution of either 0.01mm or 0.001mm (0.001/0.0001").
The auto find feature locates the detection point(s) and adjusts the display settings to bring the waveform into view.
The high speed scan feature on the Dakota PMX thickness gauge speeds up the inspection process by taking 250 measurements per second. Remove the transducer from the test material and display the minimum measurement scanned.
Features:
- 0.001mm high resolution
- Range of display options: A-Scan, B-Scan, Pulse-Echo, Echo-Echo
- Manual or AGC gain control with 110dB range, varies with mode selected
- Automatic gain control (AGC)
- User definable setups
- Multiple language display
- Visual and audible alarm with high and low limit settings for specific application tolerances.
- Multiple calibration and material selection options
- High speed scan: 250 readings per second
- Differential mode
- Minimal thickness alarm
- Data output and storage: 4GB internal memory
- Data management software
Transducer Options
A wide range of Single Element Transducers available
DakMaster™
From inspection to professional reports at the click of a button
-
- 特長
-
特長
Dakota PMX Precision Thickness Gauges (PVX)
Accuracy
Measures thin materials with pinpoint accuracy
Flexible & easy to use, the Dakota PMX Precision Thickness Gauge is able to measure the thinnest point of the substrate with maximum precision.
Powerful
Store each measurement for further analysis
Up to 4GB of readings and waveforms can be saved into the gauge memory as each measurement is taken, which can be downloaded later into an inspection application or into DakMaster® Software for further analysis and reporting.
Intelligent
User definable limits for pass/fail indication
Limits can be set on the Dakota PMX Thickness Gauge for individual readings or for each batch with audible & visual alarms.
Customisable
Choose & customise the reading display
With a choice of display modes, the user can select the most appropriate option for their needs; Readings, Selected Statistics, Bar Graph, Run Chart & Differential Mode.
Applications
Precision Machining
Stamping
Aircraft
Automotive
Thin Plastics
Firmware Upgrades
Regularly checking and updating your firmware is crucial for maintaining performance, and ensuring compatibility with new features.
Make sure your Dakota Precision Thickness Gauge is running the latest firmware, select your gauge below.
Dakota Ultrasonics PVX Precision Thickness Gauge
Dakota NDT PMX Precision Thickness Gauge
-
- 製品の特長
-
製品の特長Dakota PMX Precision Thickness Gauges (PVX)
Model PMX2-DL PMX3-DL 表示モード 厚さ - 数値 Bスキャン(断面図) Bスキャンと数値の組み合わせ スキャンバー Aスキャン 正半波、負半波、全波(RF)+ Rectified, - Rectified, Full Waveform (RF), Landscape ViewPT Measurement Range PE contact on steel - 1.00 - 9144mm (0.040 - 360”)
IE on steel - 1.27 - 25.4mm (0.050 - 1”)
IE on plastic - from 0.127mm (0.005”)
EE contact on steel - 2.54 - 914.4mm (0.100 - 36”)
IEE on steel - 0.152 - 12.7mm (0.006 - 0.5”)
EEV contact on steel - 2.54 - 152.4mm (0.100 - 6”)PE contact on steel - 1.00 - 9144mm (0.040 - 360”)
IE on steel - 1.27 - 25.4mm (0.050 - 1”)
IE on plastic - from 0.127mm (0.005”)
EE contact on steel - 2.54 - 914.4mm (0.100 - 36”)
IEE on steel - 0.152 - 12.7mm (0.006 - 0.5”)
EEV contact on steel - 2.54 - 152.4mm (0.100 - 6”)分解能 0,001mm（0.0001インチ）選択可能0,001mm（0.0001インチ）選択可能測定頻度 手動 1秒間に8回読み取り1秒間に8回読み取りスキャンモード 1秒間に250回読み取り1秒間に250回読み取りスキャンバー 1秒間に10～33回読み取り1秒間に10～33回読み取りその他の機能 高速スキャンモード 制限値のアラームモード 分解能の選択 Bスキャン表示速度 1画面あたり10 ～ 200秒1画面あたり10 ～ 200秒測定条件の設定 ユーザー設定可能64件、PCに転送可能ユーザー設定可能64件、PCに転送可能ゲート 3 adjustable gates, depending on measure mode selected3 adjustable gates, depending on measure mode selectedパルス発振器 横波、パルス幅を調節可能(spike、thin、wide)横波、パルス幅を調節可能(spike、thin、wide)ゲイン Manual or Automatic Gain Control (AGC) with 110dB range, varies with mode selected
Adjustable damping (35, 50, 75, 300, 600 & 1500ohms)Manual or Automatic Gain Control (AGC) with 110dB range, varies with mode selected
Adjustable damping (35, 50, 75, 300, 600 & 1500ohms)タイミング制御 高精度TCXO(温度補償水晶発振器)1回発振100MHzの低消費電力8ビットデジタイザー高精度TCXO(温度補償水晶発振器)1回発振100MHzの低消費電力8ビットデジタイザーメモリとデータの記録 •4GBの内蔵メモリ
•連続データと表形式データ
•英数字のバッチID
OBSTRUCTは、到達不可能な部位を示す
•ビットマップ画像の撮影と画像ビューア•4GBの内蔵メモリ
•連続データと表形式データ
•英数字のバッチID
OBSTRUCTは、到達不可能な部位を示す
•ビットマップ画像の撮影と画像ビューア校正のオプション 一点式と二点式、音速と試料の材質一点式と二点式、音速と試料の材質探触子の型 遅延材付き一振動子、遅延材付きペンシル、 接触型遅延材付き一振動子、遅延材付きペンシル、 接触型周波数の範囲 1～25MHz1～25MHz探触子の認識 手動 - リストから選択手動 - リストから選択画面 1/8 VGA(グレースケール)、表示領域62 x 45.7mm (2.4 x 1.8インチ)1/4 VGA AMOLED colour display 57.6 x 43.2mm (2.27 x 1.78”) viewable area画面のリフレッシュレート 25Hz25Hz単位(選択可能) mmまたはインチmmまたはインチLEDのバックライト オン/オフ/自動オン/オフ/自動繰り返し性と安定性のインジケーター
-
- 仕様
-
仕様Dakota PMX Precision Thickness Gauges (PVX)
コード番号 説明 証明書 Z-157-0006 Dakota PMX2-DL Precision Thickness Gauge (PVX)
Z-157-0007 Dakota PMX3-DL Precision Thickness Gauge (PVX Colour) 使用温度 -10～60ºC (14～140ºF) 電源 AA電池3本またはUSB接続 電池の寿命 Alkaline: greyscale 35 hrs, colour 12 hrs
Nicad: greyscale 10 hrs, colour 5 hrs
NI-MH: greyscale 35 hrs, colour 12 hrs本体重量 383g (13.5ンス) - 電池を含む 本体寸法 63.5 x 165 x 31.5mm (2.5 x 6.5 x 1.24インチ) 内用品 Unit, standard 1/4" Delay Line Transducer (2 Delay Tips – 3/8” & 1/2” L) & Cable, Couplant, Manual, Certificate of Calibration, AA Batteries and Plastic Carrying Case. ● Certificate of Calibration supplied as standard.
-
- 適合規格
-
適合規格Dakota PMX Precision Thickness Gauges (PVX)
Factory calibration: traceable to NIST & MIL-STD-45662A
-
- ダウンロード
-
ダウンロード
-
Elcometer 超音波精密厚さ計PG70ABDL - 取扱説明書
-
超音波精密厚さ計PG70ABDL - データシート
-
超音波精密厚さ計PG70ABDL - 適合 宣言 書
- コード番号
-
コード番号Dakota PMX Precision Thickness Gauges (PVX)
-

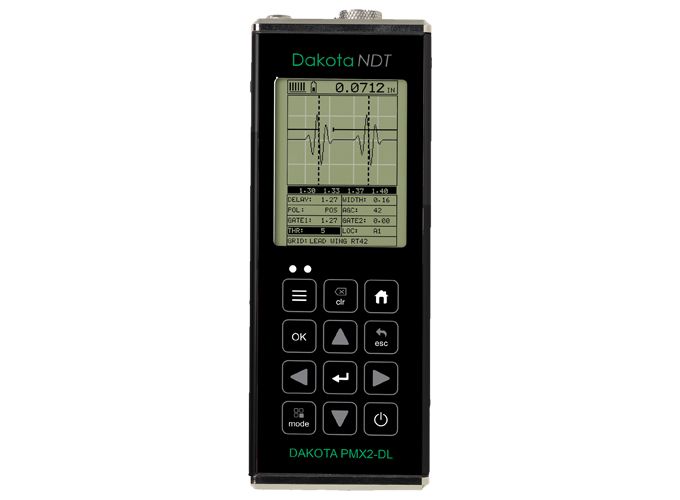

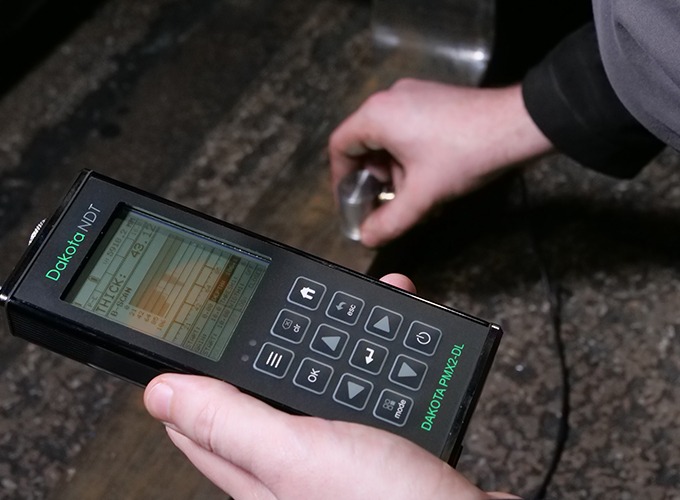

Dakota PMX2-DL Precision Thickness Gauge (PVX)- コード番号 : Z-157-0006
-

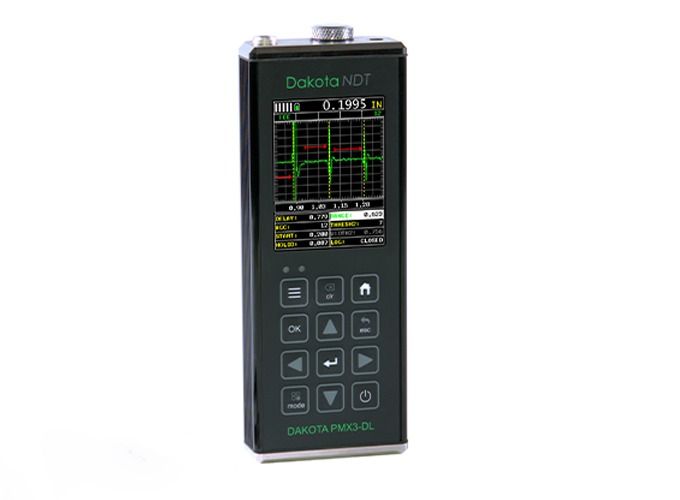

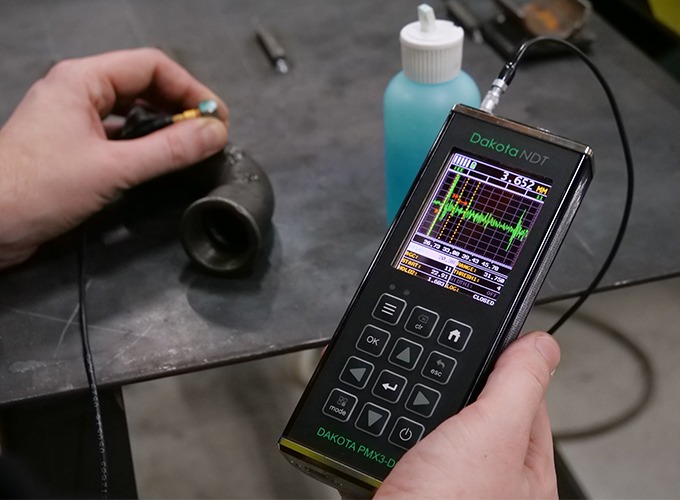

Dakota PMX3-DL Precision Thickness Gauge (PVX Colour)- コード番号 : Z-157-0007
-
