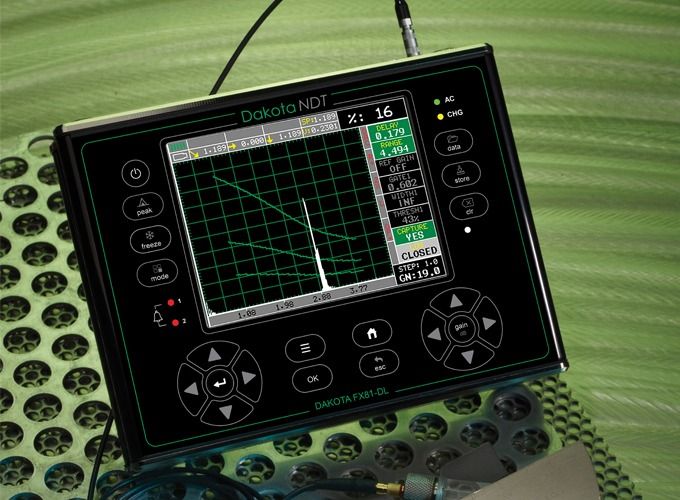

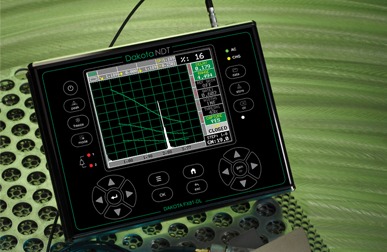

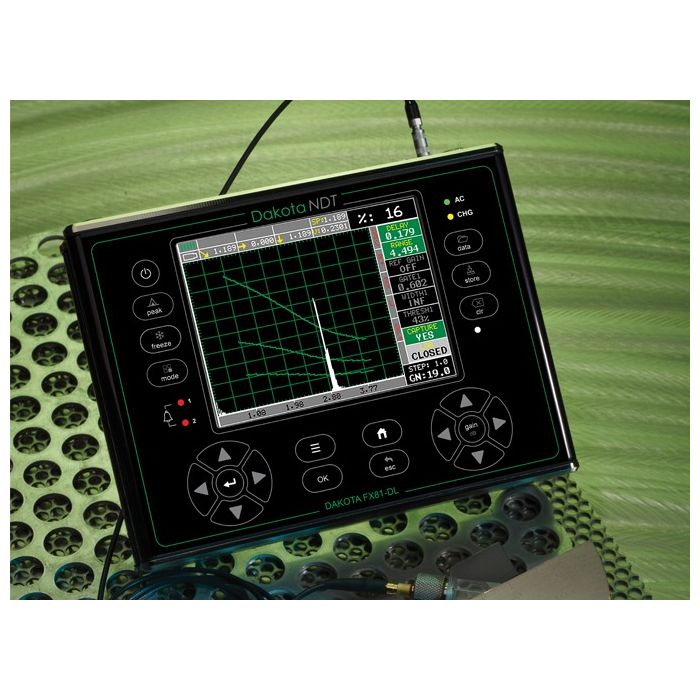

Dakota FX81-DL Benchtop Flaw Detector (DFX-8+)
The Dakota FX81-DL Bench Top Flaw Detector combines state-of-the-art flaw detection with advanced material thickness capabilities.
- Sommario
-
Sommario
-
The Dakota FX81-DL Flaw Detector is designed for use in the laboratory these gauges are the tool you need for all your flaw detecting needs.
The time corrected gain (TCG) feature automatically compensates for sound attenuation through a material, further increasing the performance of the gauge.
Within the grid batching of the Dakota FX81-DL Flaw Detector the user has the capability to enter 'OBSTRUCT' on to the grid for easy identification of inaccessible locations to measure.
The Dakota FX81-DL Ultrasonic Flaw Detector has a 4Gb internal memory and an external memory card slot which allows up to 64Gb with full data logging via RS232 data output to DakMaster™ data management software.
Transducer Options
A wide range of Shear Wave Transducers, Single Element Transducers and Transducer Wedges available
DakMaster™
From inspection to professional reports at the click of a button
-
- Caratteristiche principali
-
Caratteristiche principali
Dakota FX81-DL Benchtop Flaw Detector (DFX-8+)
Features:
- Blanview sunlight readable QVGA TFT colour display
- Sizing Toolkits: DAC, AWS, TCG, DGS
- Pulse Repetition Frequency: 8 to 333 Hz, adjustable
- Screen Refresh Rate: 60Hz
- Detection: Z-Cross, Flank & Peak
- Automatic: probe zero, probe recognition, and temperature compensation
- Measurement: Variety of modes to address a number of applications
- Large data storage: 4Gb internal & up to 64Gb external memory card slot
- Multiple formats: Alpha numeric grid and sequential with auto identifier
- 18-Hour Continuous Power: We engineered the Dakota FX81-DL Flaw Detector to handle the most demanding double shifts on a single charge
- Download to DakMaster™ data management software
Flaw Detector Firmware Upgrades
Regularly checking and updating your firmware is crucial for maintaining performance, and ensuring compatibility with new features.
Make sure your Dakota Flaw Detection Gauge is running the latest firmware, select your gauge below.
Dakota Ultrasonic DFX-8 Flaw Detector
Dakota NDT FX80 Series
-
- Dati tecnici
-
Specifiche TecnicheDakota FX81-DL Benchtop Flaw Detector (DFX-8+)
Codice articolo Descrizione Certificato Z-251-0001 Dakota FX81-DL Benchtop Flaw Detector (DFX-8+)
Temperatura di esercizio -10 a 60 ºC (14 a 140 ºF) Alimentazione 6 batterie AA e USB Durata batteria2 Alcaline (12 ore), nickel-cadmio (5 ore) e NI-MH (12 ore) Peso calibro 2.04kg (4.5lbs) - including batteries Dimensioni calibro 216,0 x 165,0 x 70,0mm (8,5 x 6,5 x 2,5 inches) Lista di imballaggio Unit, Couplant, Manual, Power Cable, Plastic Carrying Case, Certificate of Calibration and AA Batteries. PC Software and Data Transfer Cable ● Certificate of Calibration supplied as standard
-
- Standard
-
StandardDakota FX81-DL Benchtop Flaw Detector (DFX-8+)
Thickness Gauge: Factory calibration traceable to NIST & MIL-STD-45662A.
Flaw Detector: EN12668-1 compliant.
-
- Download
-
Download
-
Dakota FX81-DL Flaw Detector (DFX-8) - Flaw Instruction Manual
-
Dakota FX81-DL Flaw Detector (DFX-8) - Thickness Instruction Manual
-
Dakota FX81-DL Flaw Detector Datasheet
-
Dakota FX81-DL CE Certificate - FCC
-
Dakota FX81-DL CE Certificate - EN
-
Dakota FX81-DL CE Certificate - Compliance
- Codice articolo
-
Codice articoloDakota FX81-DL Benchtop Flaw Detector (DFX-8+)
-
Dakota FX81-DL Benchtop Flaw Detector (DFX-8+)- Codice articolo : Z-251-0001
-
Dakota FX81-DL Benchtop Flaw Detector (DFX-8+)
The Dakota FX81-DL Bench Top Flaw Detector combines state-of-the-art flaw detection with advanced material thickness capabilities.
Sommario
Dakota FX81-DL Benchtop Flaw Detector (DFX-8+)
The Dakota FX81-DL Flaw Detector is designed for use in the laboratory these gauges are the tool you need for all your flaw detecting needs.
The time corrected gain (TCG) feature automatically compensates for sound attenuation through a material, further increasing the performance of the gauge.
Within the grid batching of the Dakota FX81-DL Flaw Detector the user has the capability to enter 'OBSTRUCT' on to the grid for easy identification of inaccessible locations to measure.
The Dakota FX81-DL Ultrasonic Flaw Detector has a 4Gb internal memory and an external memory card slot which allows up to 64Gb with full data logging via RS232 data output to DakMaster™ data management software.
Transducer Options
A wide range of Shear Wave Transducers, Single Element Transducers and Transducer Wedges available
DakMaster™
From inspection to professional reports at the click of a button
Download-
Dakota FX81-DL Flaw Detector (DFX-8) - Flaw Instruction Manual
-
Dakota FX81-DL Flaw Detector (DFX-8) - Thickness Instruction Manual
-
Dakota FX81-DL Flaw Detector Datasheet
-
Dakota FX81-DL CE Certificate - FCC
-
Dakota FX81-DL CE Certificate - EN
-
Dakota FX81-DL CE Certificate - Compliance
Caratteristiche principali
Dakota FX81-DL Benchtop Flaw Detector (DFX-8+)
Features:
- Blanview sunlight readable QVGA TFT colour display
- Sizing Toolkits: DAC, AWS, TCG, DGS
- Pulse Repetition Frequency: 8 to 333 Hz, adjustable
- Screen Refresh Rate: 60Hz
- Detection: Z-Cross, Flank & Peak
- Automatic: probe zero, probe recognition, and temperature compensation
- Measurement: Variety of modes to address a number of applications
- Large data storage: 4Gb internal & up to 64Gb external memory card slot
- Multiple formats: Alpha numeric grid and sequential with auto identifier
- 18-Hour Continuous Power: We engineered the Dakota FX81-DL Flaw Detector to handle the most demanding double shifts on a single charge
- Download to DakMaster™ data management software
Flaw Detector Firmware Upgrades
Regularly checking and updating your firmware is crucial for maintaining performance, and ensuring compatibility with new features.
Make sure your Dakota Flaw Detection Gauge is running the latest firmware, select your gauge below.
Dakota Ultrasonic DFX-8 Flaw Detector
Dakota NDT FX80 Series
Specifiche TecnicheDakota FX81-DL Benchtop Flaw Detector (DFX-8+)Codice articolo Descrizione Certificato Z-251-0001 Dakota FX81-DL Benchtop Flaw Detector (DFX-8+) Temperatura di esercizio -10 a 60 ºC (14 a 140 ºF) Alimentazione 6 batterie AA e USB Durata batteria2 Alcaline (12 ore), nickel-cadmio (5 ore) e NI-MH (12 ore) Peso calibro 2.04kg (4.5lbs) - including batteries Dimensioni calibro 216,0 x 165,0 x 70,0mm (8,5 x 6,5 x 2,5 inches) Lista di imballaggio Unit, Couplant, Manual, Power Cable, Plastic Carrying Case, Certificate of Calibration and AA Batteries. PC Software and Data Transfer Cable ● Certificate of Calibration supplied as standardStandardDakota FX81-DL Benchtop Flaw Detector (DFX-8+)Thickness Gauge: Factory calibration traceable to NIST & MIL-STD-45662A.
Flaw Detector: EN12668-1 compliant.
-
-
