Dakota MultiMax - 4 Channel Bolt Tension Monitor

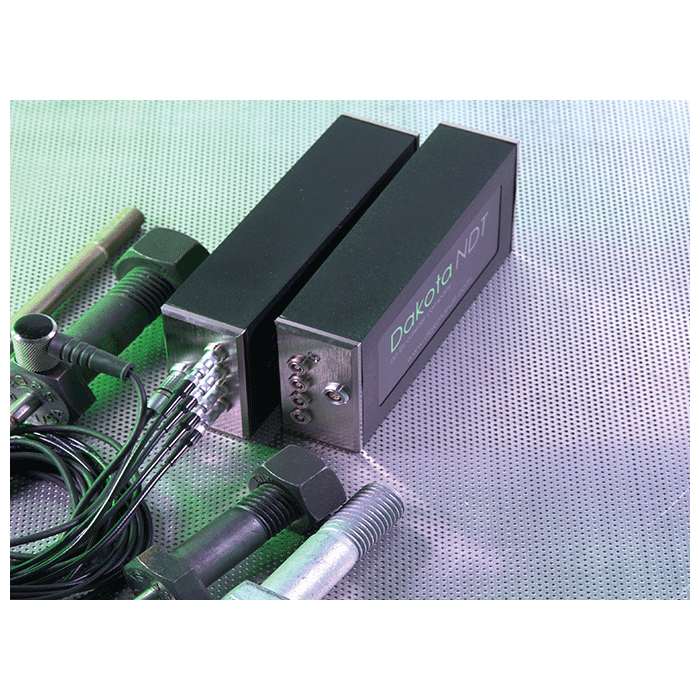

The MultiMax by Dakota NDT is a cutting-edge 4 Channel Ultrasonic Bolt Tension Monitor that delivers precise, real-time data on fastener stretch, load, stress, and strain – all from anywhere in the world.
- Sommario
-
Sommario
-
The Dakota MultiMax revolutionizes fastener monitoring by directly measuring bolt tension with ultrasonic precision – eliminating the inaccuracies caused by friction. Now, imagine having absolute accuracy and real-time insights into your critical bolted joints, no matter how far away they are.
The Dakota MultiMax Bolt Tension Monitor provides remote, continuous measurement of fastener length changes. Seamlessly integrate it into your existing condition monitoring system with the intuitive Dakota MultiUI software. This powerful combination enables real-time condition monitoring of bolt elongation, empowering proactive maintenance and preventing costly failures. Plus, the MultiMax is easily expandable, allowing you to monitor hundreds of bolts simultaneously.
Gain unprecedented control and ensure the integrity of your bolted connections. Choose the Dakota NDT MultiMax.
-
- Caratteristiche principali
-
Caratteristiche principali
Dakota MultiMax - 4 Channel Bolt Tension Monitor
Key Features and Benefits:
- Highly Accurate Measurements: The Dakota MultiMax measures the stretch (elongation), load, stress and %strain of a fastener under tension with extreme precision.
- Ultrasonic Technology: By sending an ultrasonic wave down the length of the fastener and measuring the change in transit time, the Dakota MultiMax provides accurate calculations, avoiding the limitations of torque-based methods.
- Multi-Channel Efficiency: With four independent channels, the Dakota MultiMax can simultaneously monitor four bolts, increasing productivity.
- Scalability: Multiple Dakota MultiMax modules can be stacked together, allowing users to monitor numerous channels from a single interface.
- User-Friendly Software: The Dakota MultiUI interface software simplifies setup and monitoring of the Dakota MultiMax, and can be accessed from local or remote locations.
- Remote Control: The built-in remote commander operating system enables remote control of individual modules and channels.
- Customizable Interface: Users have the option to create their own UI software platform, thanks to the Dakota MultiMax's built-in operating system.
- Durable and Compact: The Dakota MultiMax features an extruded aluminium body with nickel-plated aluminium end caps, meeting IP65 requirements, and weighs only 16 ounces.
- Versatile Transducer Options: The Dakota MultiMax supports single element transducers from 1MHz to 10 MHz, glue-on transducers for permanent installation, and various connector types.
- Automatic Features: Includes automatic zeroing, gating & display configuration.
- Temperature Monitoring: Real-time temperature monitoring and compensation ensure accurate measurements.
- Data Logging and Storage: Measurements can be auto stored, and data can be archived in various formats on the 4GB internal SD memory.
Warranty and Support:
The Dakota MultiMax comes with a 2-year limited warranty and is proudly made in the USA.
Applications
The MultiMax is ideal for various industries where precise bolt tension is critical including:
Automotive
Construction
Aerospace
Manufacturing
Energy
Firmware Upgrades
Regularly checking and updating your firmware is crucial for maintaining performance, and ensuring compatibility with new features.
Make sure your Dakota MultiMax is running the latest firmware, select your gauge below.
Dakota NDT MultiMax
-
- Caratteristiche del Prodotto
-
Dakota NDT MultiMax 4 Channel Bolt Tension Monitor
Caratteristiche del ProdottoDakota MultiMax - 4 Channel Bolt Tension Monitor
Model Multi Max BTM Measurement Range PE - 25.4 - 25,400mm (1 - 999”) EE, EEVRange di calibrazione velocità del suono 1250 - 13,995m/s (0.0492 - 0.5510 in/μs)Compensazione temperatura Memoria e registrazione dati 4GB internal memory , Fixed grid formatOpzioni di calibrazione Automatica, fissa a 1 punto e a 2 puntiTipo di sonda trasduttore Elemento singoloGamma di frequenza trasduttore 1 - 10MHzUnità (selezionabili) in/mm, μsTémoin Batterie faible Tipo di connettore trasduttore Microdot, Lemo and BNCInterfaccia USB Sensore di temperatura Temporizzazione Temporizzazione TCXO di precisione con digitalizzatore a potenza ultra bassa 8 bit a 100 MHz a colpo singoloTipo di impulsatore Spike. Pulser Voltage: 100 – 200v Selectable step options Spike, Thin, WideSmorzamento 50 ohms FixedBanda di frequenza Filtro a banda larga 1,8 - 19 Mhz (-3 dB)Linearità orizzontale +/- 0.4% FSWLinearità verticale +/- 1% FSHLinearità amplificatore +/- 1 dBRitardo 25.400 mm (0 - 999,9”) alla velocità dell’acciaioPorta di misurazione Three independent gates depending on measurement mode selected, with audible and visual alarms. Amplitude 5-95%, 1% stepsFunzione Auto Set Automatizza il processo di configurazione delle funzioni di rilevamento, portata e visualizzazione per ogni singolo bulloneCalibrazione sul campo Curva di correzione a vettori o regressione per ottenere maggiore precisione utilizzando i parametri di carico e sollecitazioneRilevamento Zero CrossingTempo NanosecondiAllungamento Modifica della lunghezza (mm/pollici)Carico Forza di carico applicata (in libbre, KIP o megapascal, MPa)Sollecitazione Forza di sollecitazione applicata per area unitaria (pollici su pollice o millimetri su millimetro)Percentuale di deformazione Rapporto di allungamento rispetto alla lunghezza effettivaMateriali dei bulloni Selezionare il tipo da un elenco predefinito o personalizzatoGlue-On (incollato) Disponibile per bulloni corti con allungamento minimo/limitato, per eliminare eventuali errori di posizionamento del trasduttore.
-
Dakota NDT MultiMax 4 Channel Bolt Tension Monitor
- Dati tecnici
-
Specifiche TecnicheDakota MultiMax - 4 Channel Bolt Tension Monitor
Codice articolo Descrizione Certificato Z-226-0001 Dakota MultiMax Bolt Tension Monitor
Temperatura di esercizio -10 a 60ºC (14 a 140ºF) Alimentazione USB Only Peso calibro 454g (16oz) - including batteries Dimensioni calibro 76 x 165 x 38mm ( 3.0 x 6.5 x 1.5" )
-
- Standard
-
StandardDakota MultiMax - 4 Channel Bolt Tension Monitor
ASTM E1685-20
-
- Download
-
Download
-
Dakota MultiMax Bolt Tension Monitor Datasheet
-
Dakota MultiMax Bolt Tension Monitor - Instruction Manual
-
Dakota MultiMax Bolt Tension Monitor CE Certificate
-
Dakota MultiMax CE Certificate - FCC ICES
- Codice articolo
-
Codice articoloDakota MultiMax - 4 Channel Bolt Tension Monitor
-
Dakota MultiMax 4 Channel Bolt Tension Monitor- Codice articolo : Z-226-0001
-
