Dual Element Transducers

Dual-Element-MTG_1
Dual-Element_1

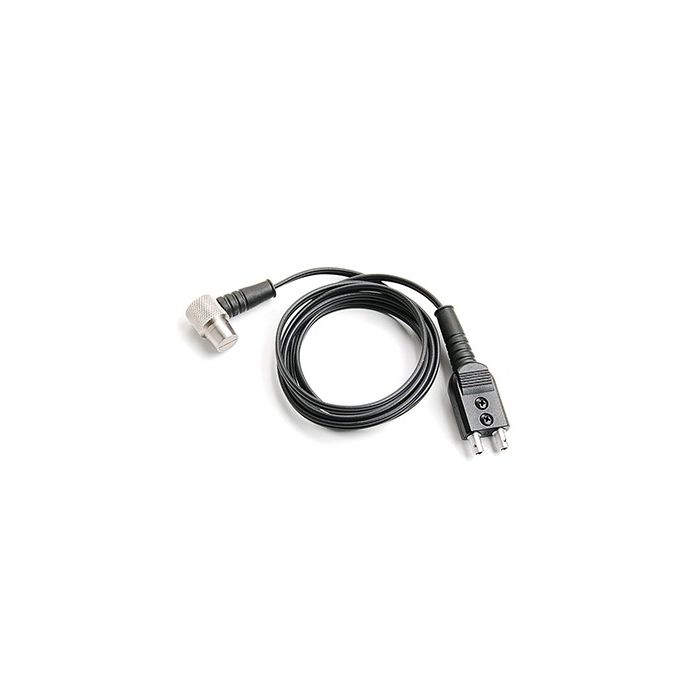

The Dakota range of Dual Element Transducers is designed to ultrasonically measure material thickness when access is only available to one side of the material under inspection.

  • Summary

    • Summary

    • Dual element transducers are designed with two crystals in one case, separated by an acoustic barrier. One crystal transmits a signal and receives on another crystal, this improves signal measuring speeds.

      The crystals are mounted at slight angles towards each other. Enabling better near surface focusing.

      Twin Crystal transducers are ideal for inspecting metal substrates but can also measure thicknesses of other materials, such as plastic, composites or fiberglass.

  • Technical Information
    • Technical Specification
      Dual Element Transducers
      Connector Type Suitable for
      Part Number Probe Diameter Probe Characteristic
      Damping
      ThruPaint™
      Potted
      Top
      Side
      CX 2
      CX 4
      CX8-DL

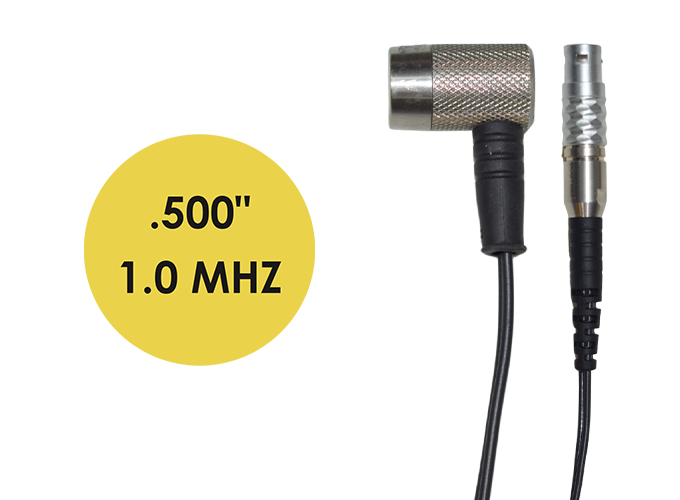

      1.00 MHz Dual Element Thickness Transducer
      Materials used: Cast iron, Plastics (polypropylene, polyethylene, etc.), Fiberglass
      T-1049-0000
      1/2"
      Standard
      S
      5.00MHz Dual Element Transducer
      Materials used: Steels, Glass, Thin plastics
      T-1029-2000
      1/4"
      Standard
      S
      T-1029-2700
      1/4"
      Standard
      HD
      T-0429-2000
      1/4"
      Hi Temp2
      S
      T-1049-2700
      1/2"
      Standard
      HD
      7.50MHz Dual Element Thickness Transducer
      Materials Used: Steels, Aluminum, Glass, Thin Plastics

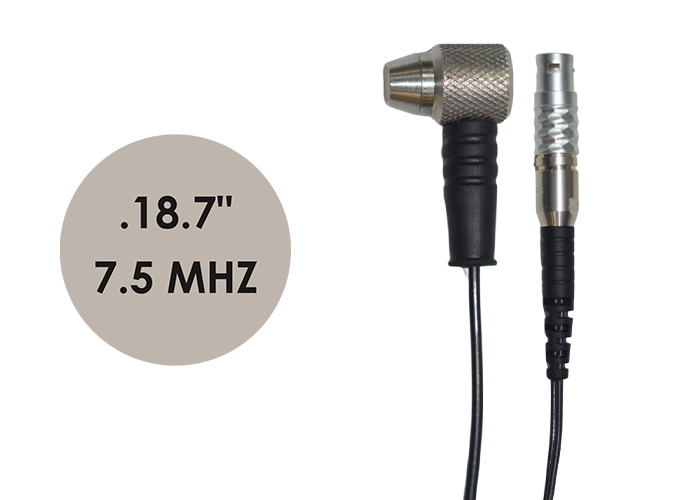

      T-1019-3000
      3/16"
      Standard
      S
      T-1029-3300
      1/4"
      High Resolution
      S



      Connector Type Suitable for
      Part Number Probe Diameter Probe Characteristic
      Damping
      ThruPaint™
      Potted
      Microdot
      Lemo
      Top
      Side
      ZX Range
      MX Range
      CMX Range
      R9
      PR8-DL
      FX70
      FX80
      1.00 MHz Dual Element Thickness Transducer
      Materials used: Cast iron, Plastics (polypropylene, polyethylene, etc.), Fiberglass

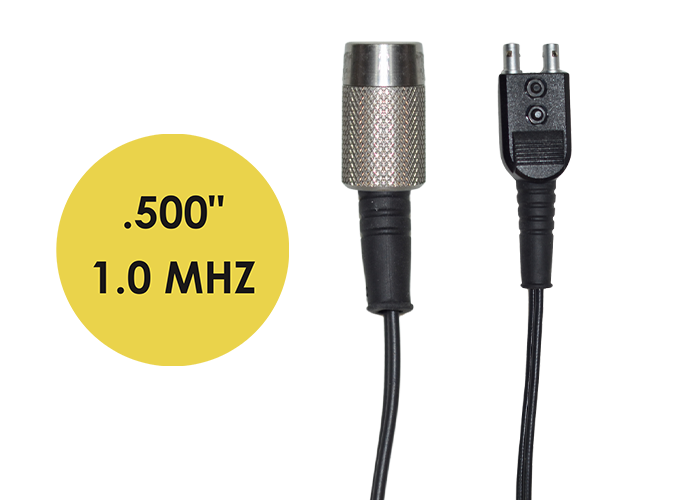

      T-004-0000
      1/2"
      Standard
      S
      T-104-0000
      1/2"
      Standard
      S
      T-204-0001
      1/2"
      Standard
      S
      T-304-0001
      1/2"
      Standard
      S
      T-104-0600
      1/2"
      Composite
      S
      T-904-0009
      1/2"
      Armoured
      S
      2.25 MHz Dual Element Thickness Transducer
      Materials used: Cast iron, Plastics (polypropylene, polyethylene, etc.), Thin Fiberglass

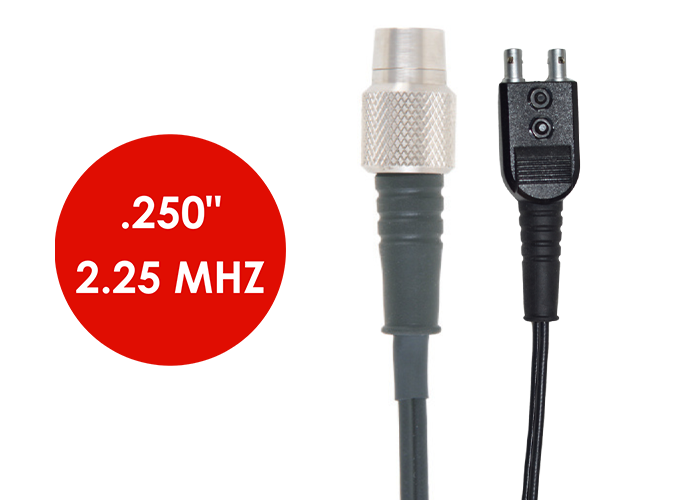

      T-002-1000
      1/4"
      Standard
      S
      T-102-1000
      1/4"
      Standard
      S
      T-202-1001
      1/4"
      Standard
      S

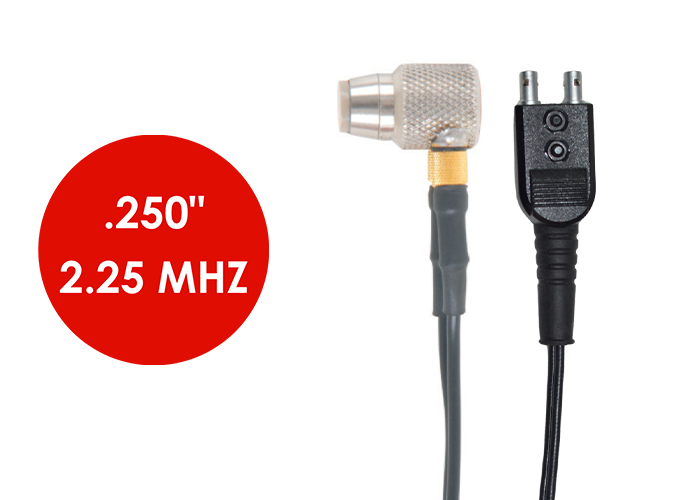

      T-302-1001
      1/4"
      Standard
      S
      T-042-1000
      1/4"
      Hi Temp2
      S
      T-242-1001
      1/4"
      Hi Temp2
      S
      T-004-1000
      1/2"
      Standard
      S
      T-104-1000
      1/2"
      Standard
      S
      T-204-1001
      1/2"
      Standard
      S

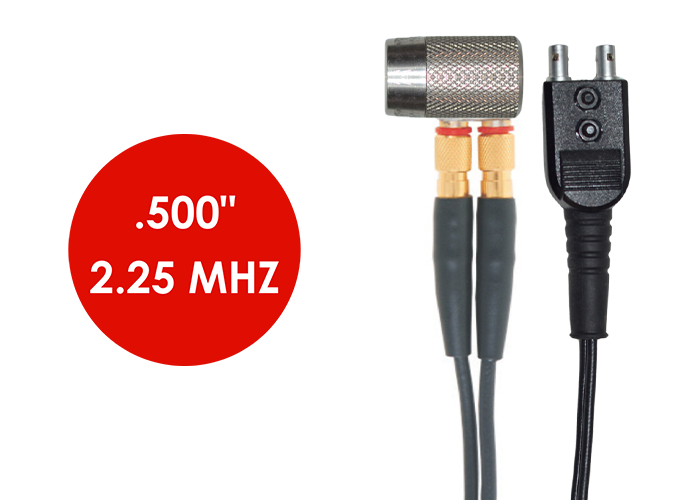

      T-304-1001
      1/2"
      Standard
      S

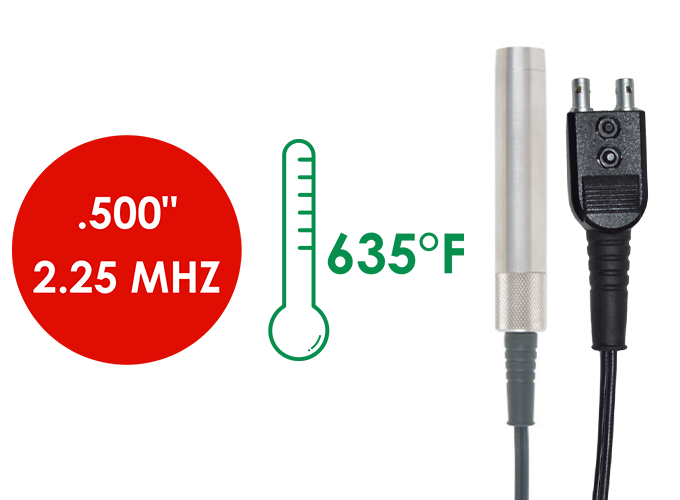

      T-044-1000
      1/2"
      Hi Temp2
      S

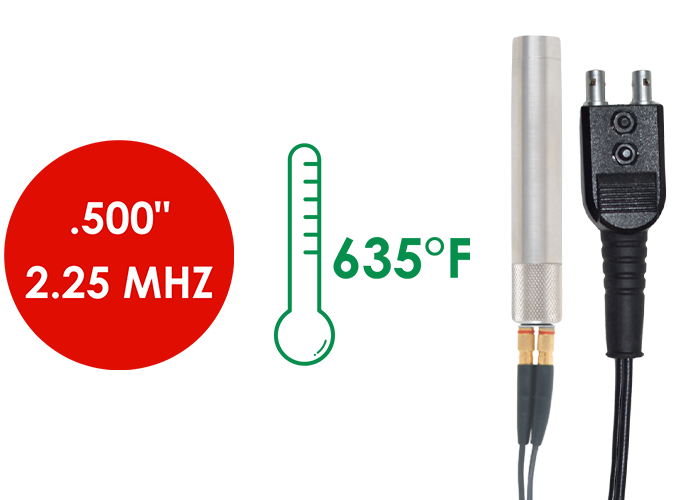

      T-244-1001
      1/2"
      Hi Temp2
      S
      T-104-1600
      1/2"
      Composite
      S

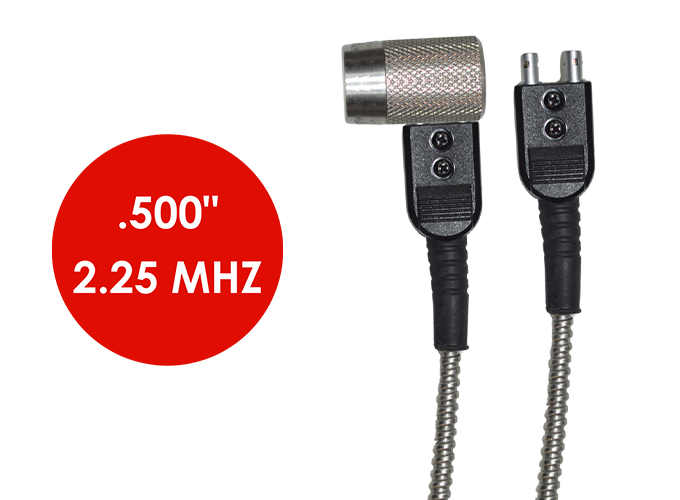

      T-904-1009
      1/2"
      Armoured
      S
      3.50 MHz Dual Element Thickness Transducer
      Materials used: Thru Coating multiple echo, Cast iron, Plastics (polypropylene, polyethylene, etc.), Thin Fiberglass
      T-104-9700
      1/2"
      Standard
      HD

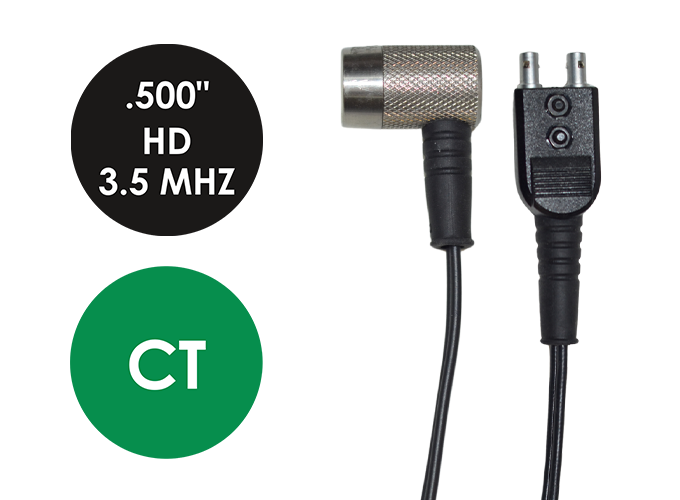

      T-104-9900
      1/2"
      Coating Thickness
      CT
      5.00 MHz Dual Element Thickness Transducer
      Materials used: Steels, Glass, Thin plastics

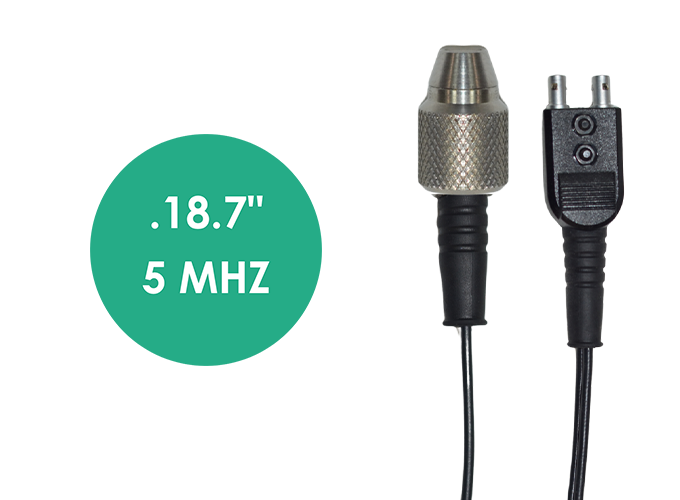

      T-001-2000
      3/16"
      Standard
      S
      T-101-2000
      3/16"
      Standard
      S

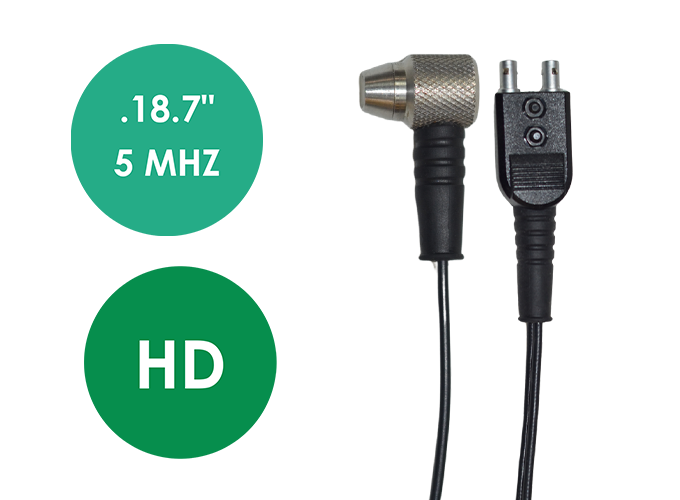

      T-101-2700
      3/16"
      Standard
      HD
      T-301-2001
      3/16"
      Standard
      S

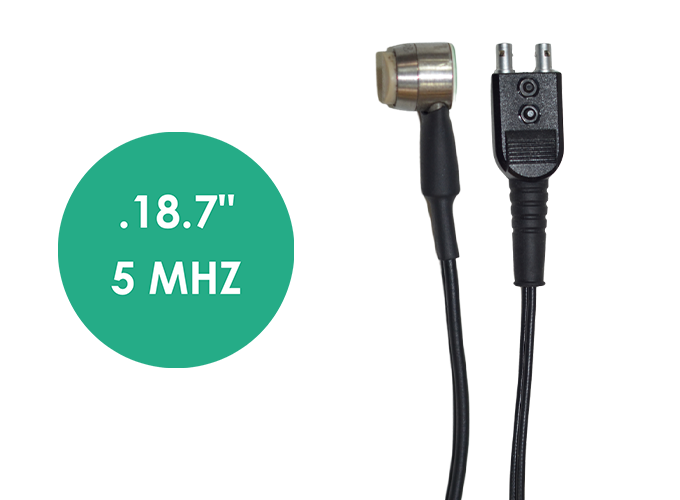

      T-121-2100
      3/16"
      Low Profile
      S
      T-101-2900
      3/16"
      Coating Thickness
      CT
      T-002-2000
      1/4"
      Standard
      S
      T-002-2700
      1/4"
      Standard
      HD

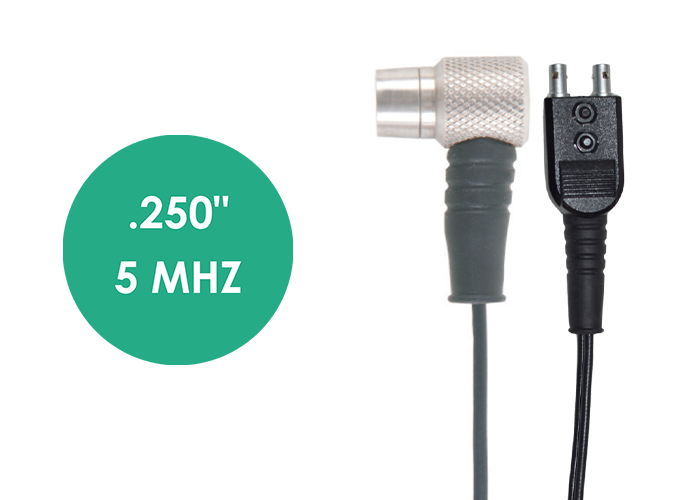

      T-102-2000
      1/4"
      Standard
      S
      T-102-2700
      1/4"
      Standard
      HD
      T-202-2001
      1/4"
      Standard
      S
      T-302-2001
      1/4"
      Standard
      S
      T-302-2701
      1/4"
      Standard
      HD
      T-162-2110
      1/4"
      Low Profile 1" Wand
      S
      T-132-2110
      1/4"
      Low Profile 9" Wand
      S

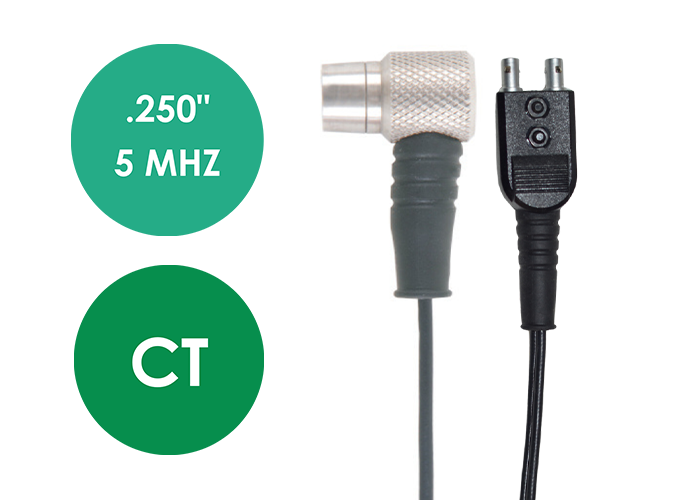

      T-102-2900
      1/4"
      Coating Thickness
      CT

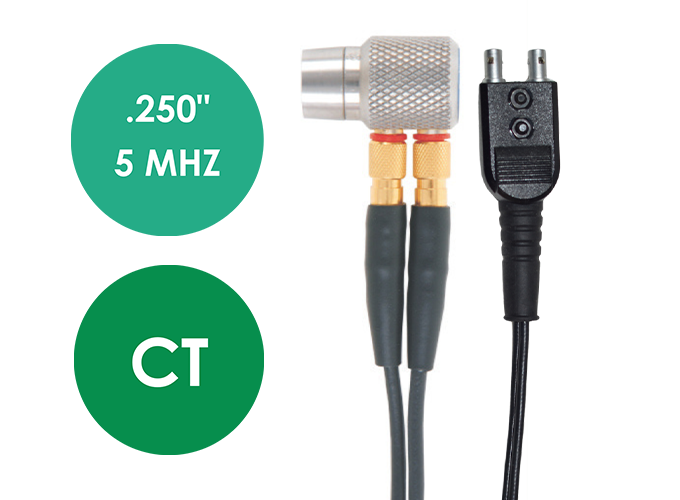

      T-302-2901
      1/4"
      Coating Thickness
      CT
      T-042-2000
      1/4"
      Hi Temp2
      S
      T-042-2700
      1/4"
      Hi Temp2
      HD
      T-212-2001
      1/4"
      Hi Temp2
      HD

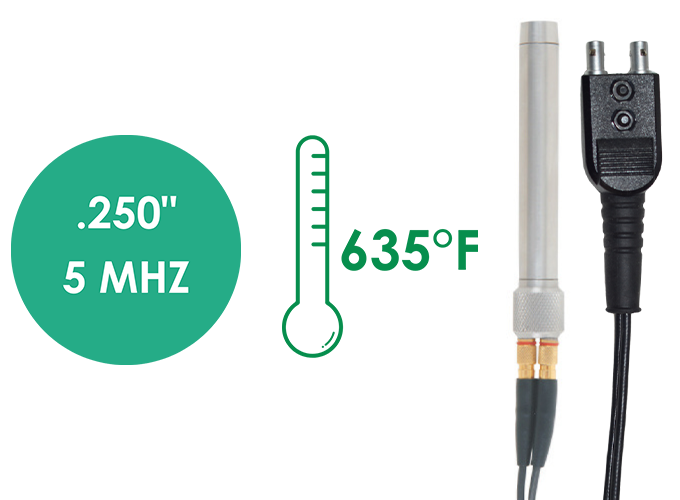

      T-242-2001
      1/4"
      Hi Temp2
      S

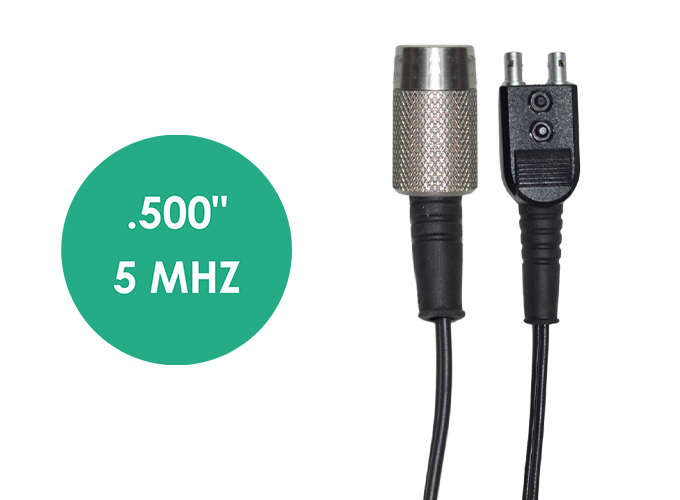

      T-004-2000
      1/2"
      Standard
      S

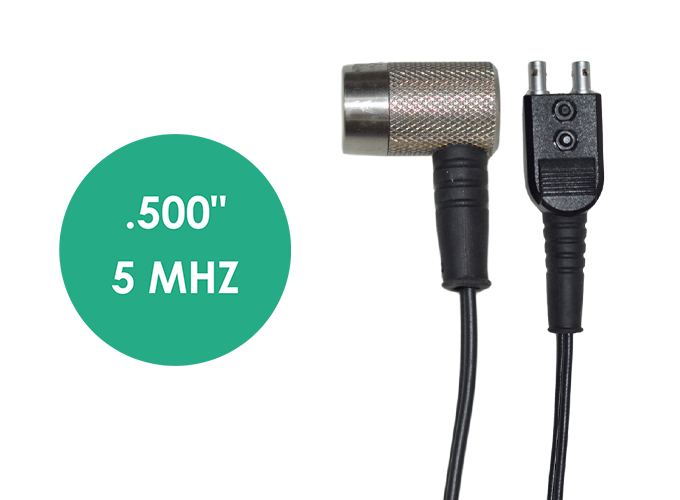

      T-104-2000
      1/2"
      Standard
      S
      T-104-2700
      1/2"
      Standard
      HD
      T-204-2001
      1/2"
      Standard
      S

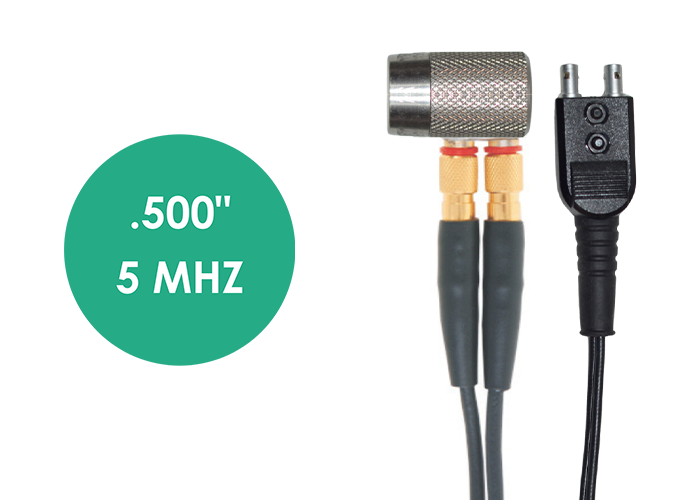

      T-304-2001
      1/2"
      Standard
      S
      T-104-2900
      1/2"
      Coating Thickness
      CT

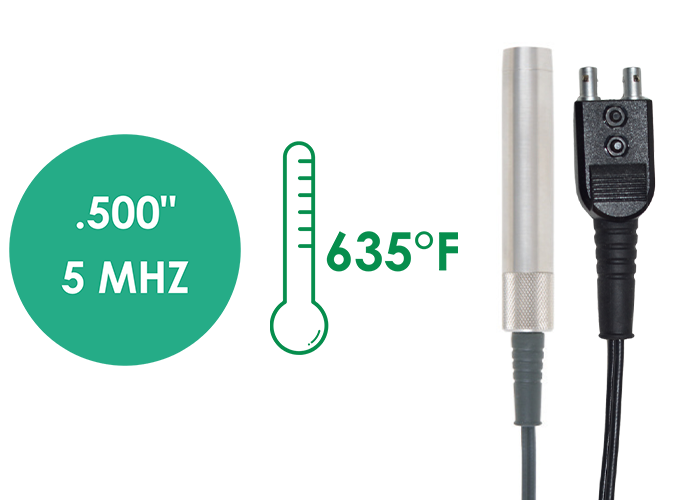

      T-044-2000
      1/2"
      Hi Temp2
      S
      T-214-2001
      1/2"
      Hi Temp2
      S

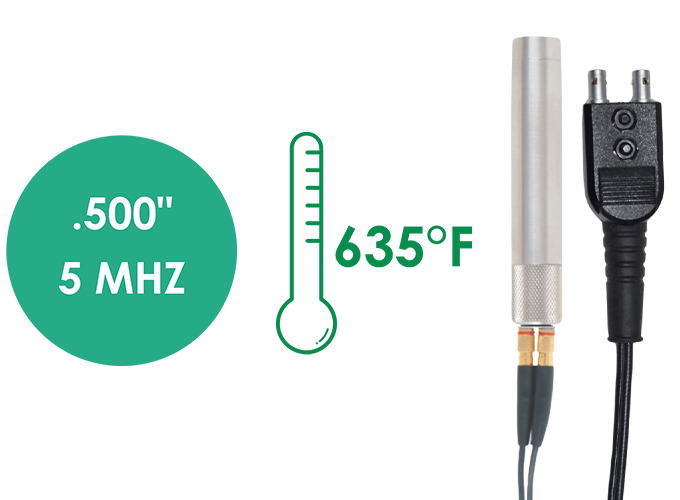

      T-244-2001
      1/2"
      Hi Temp2
      S

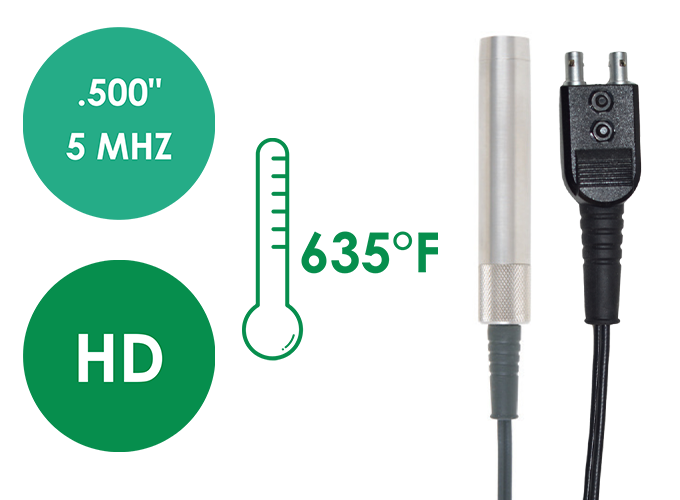

      T-044-2700
      1/2"
      Hi Temp2
      HD

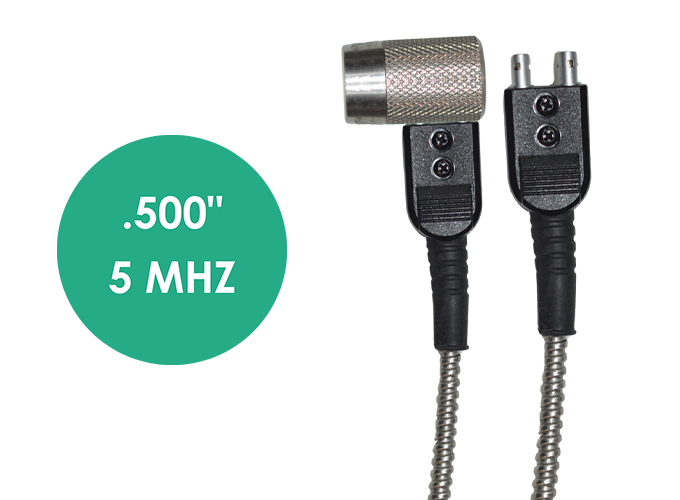

      T-904-2009
      1/2"
      Armoured
      S
      T-104-2120
      1/2"
      Cylinder Probe - Iron
      S
      7.50 MHz Dual Element Thickness Transducer
      Materials Used: Steels, Aluminum, Glass, Thin Plastics

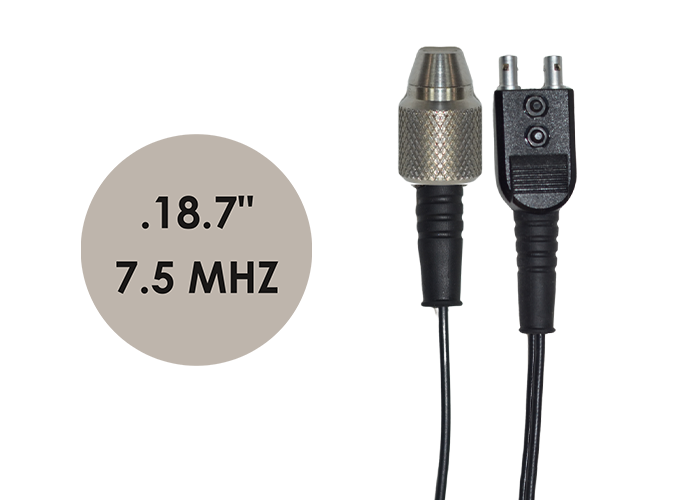

      T-001-3000
      3/16"
      Standard
      S
      T-101-3000
      3/16"
      Standard
      S

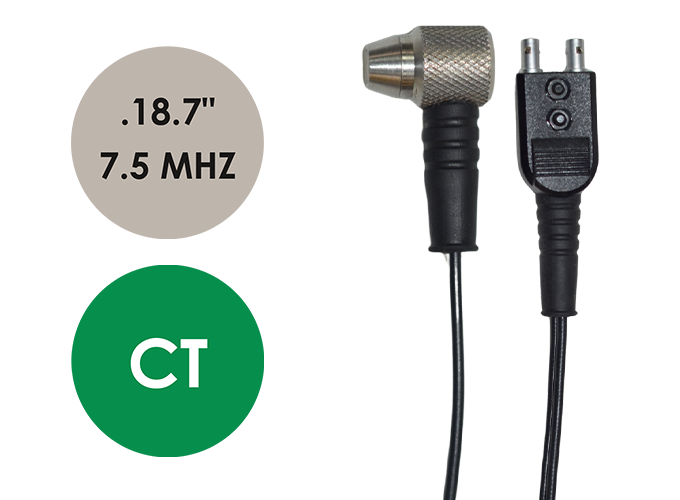

      T-101-3900
      3/16"
      Coating Thickness
      CT

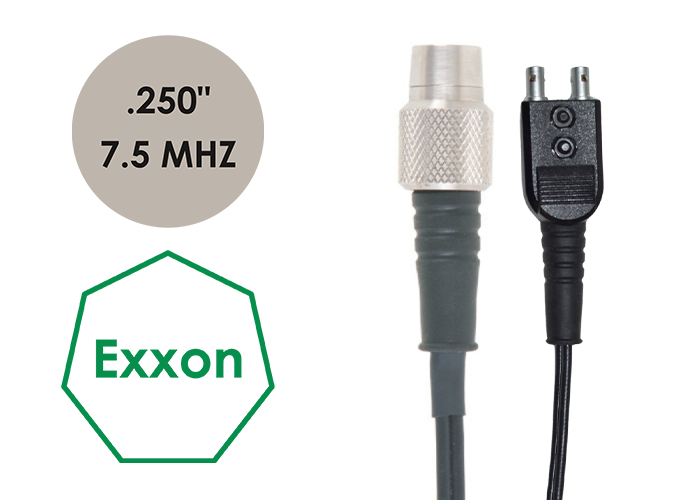

      T-002-3200
      1/4"
      Exxon Spec
      S

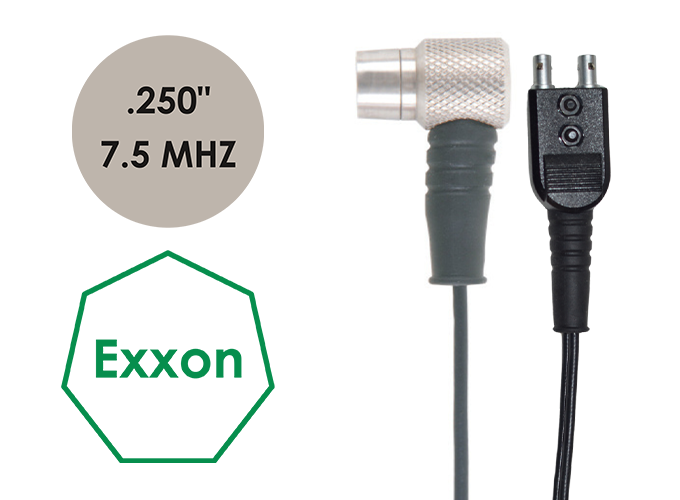

      T-102-3200
      1/4"
      Exxon Spec
      S

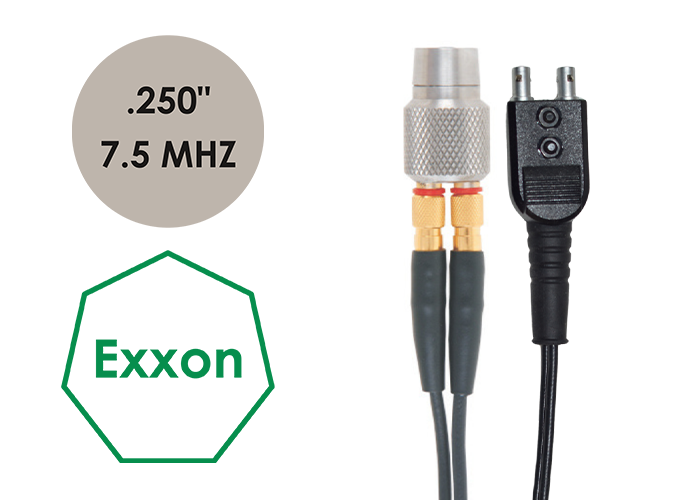

      T-202-3201
      1/4"
      Exxon Spec
      S

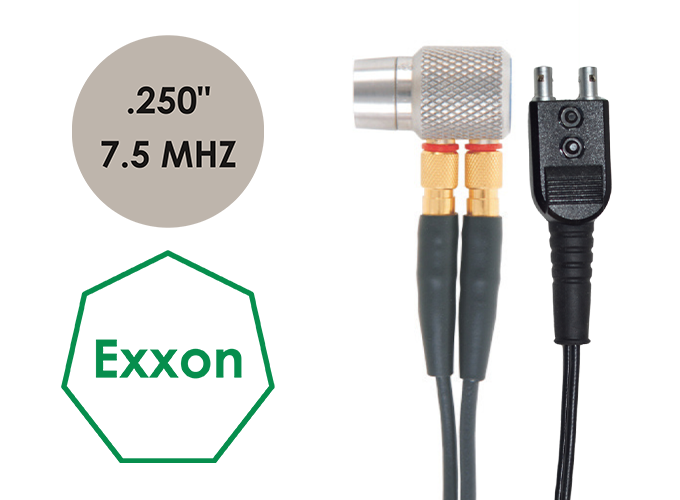

      T-302-3201
      1/4"
      Exxon Spec
      S

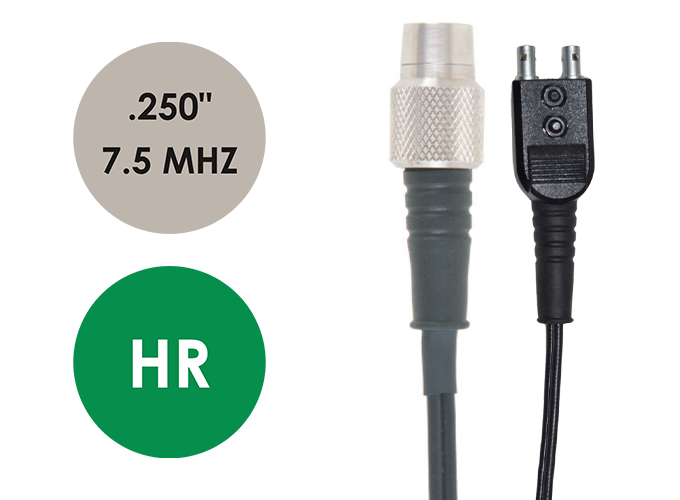

      T-002-3300
      1/4"
      High Resolution
      S

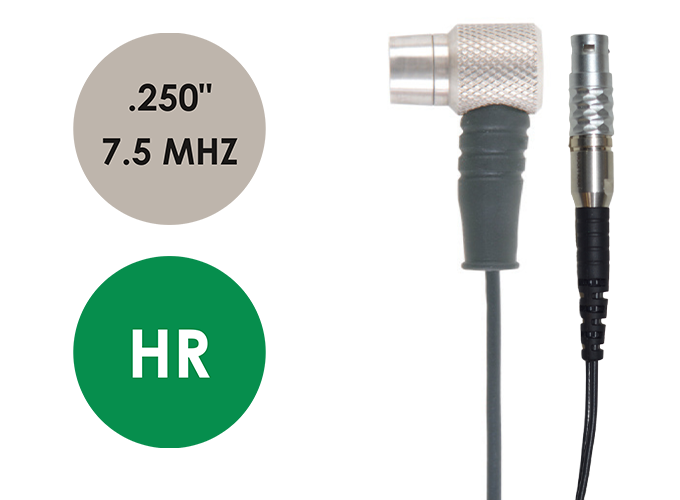

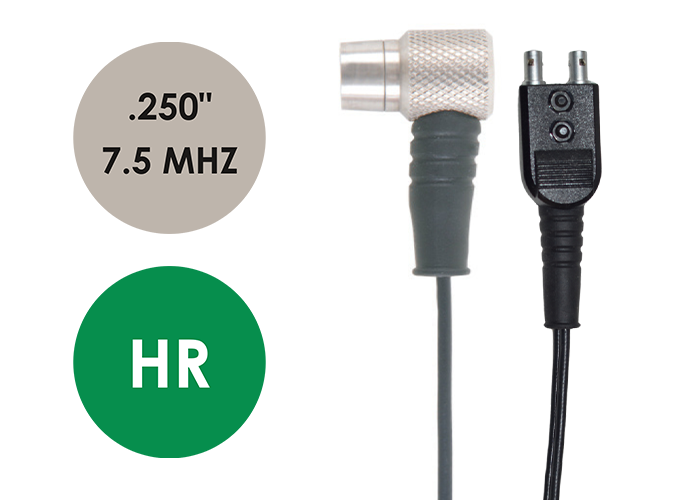

      T-102-3300
      1/4"
      High Resolution
      S

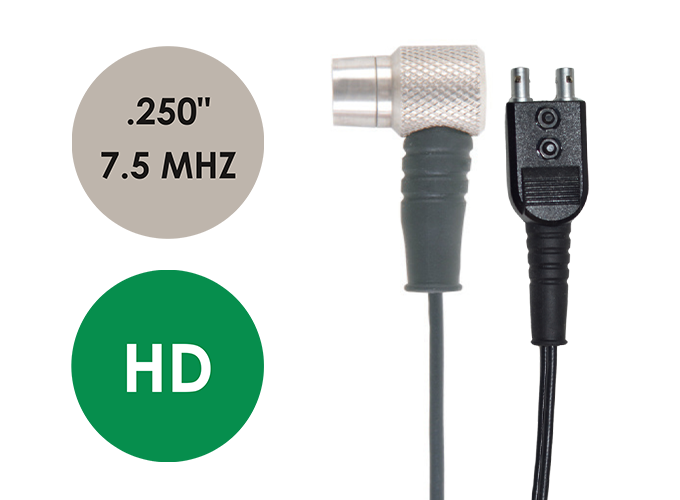

      T-102-3700
      1/4"
      Standard
      HD

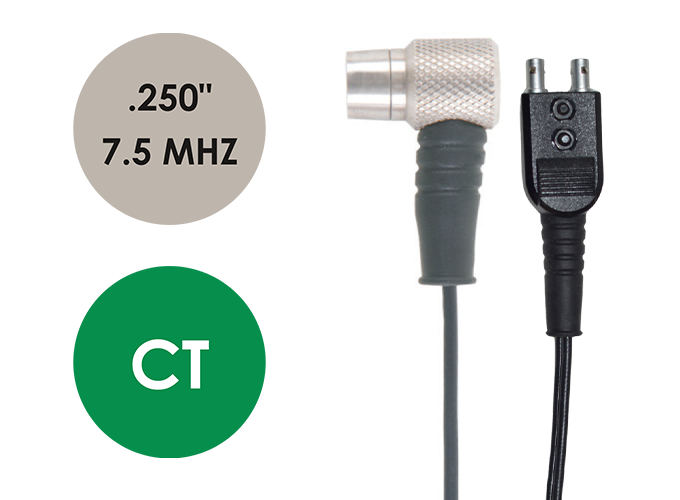

      T-102-3900
      1/4"
      Coating Thickness
      CT

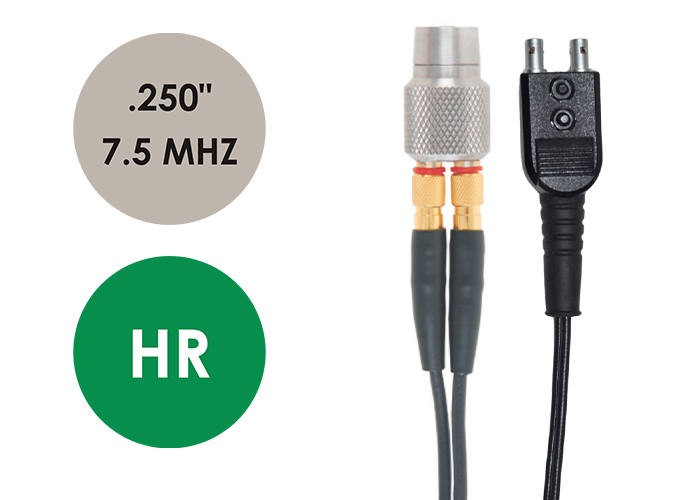

      T-202-3301
      1/4"
      High Resolution
      S

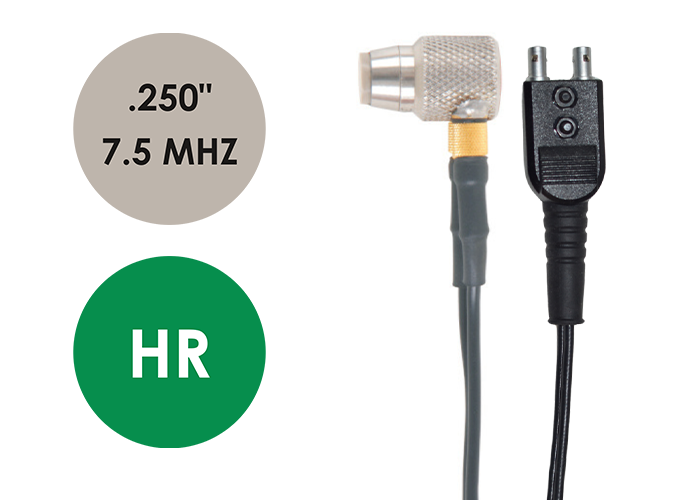

      T-302-3301
      1/4"
      High Resolution
      S
      10.00 MHz Dual Element Thickness Transducer
      Materials Used: Aluminum, Titanium, Steels

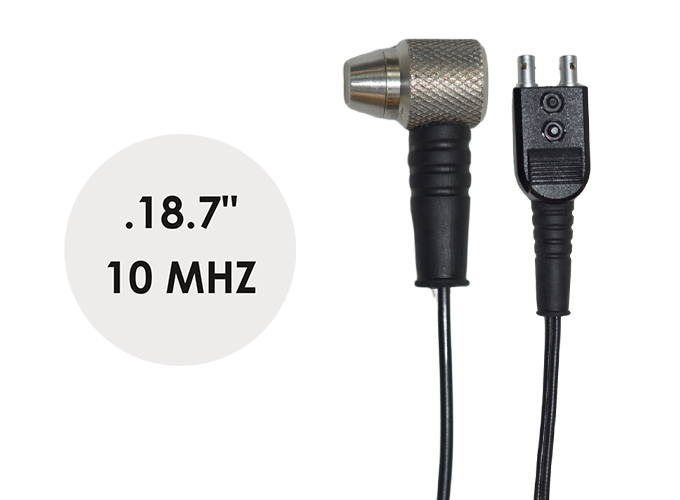

      T-101-4000
      3/16"
      Standard
      S

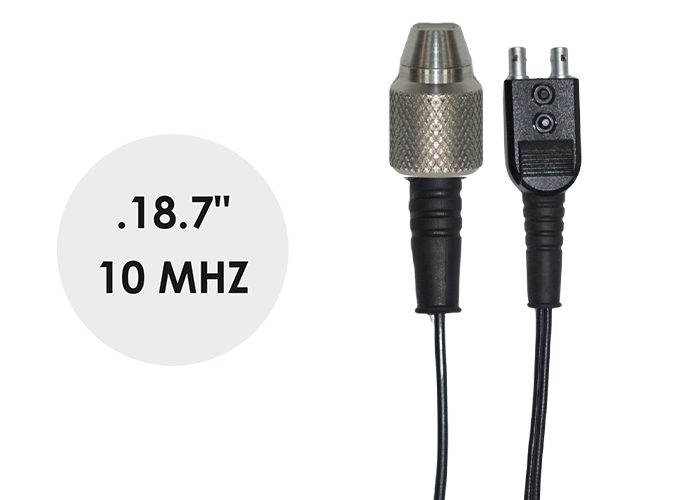

      T-001-4000
      3/16"
      Standard
      S

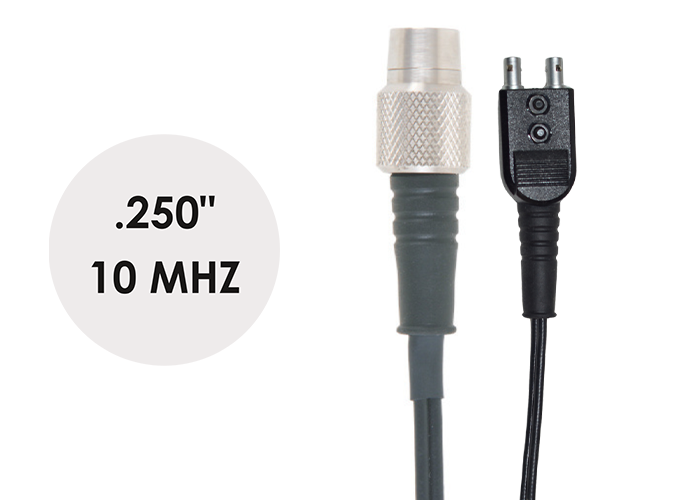

      T-002-4000
      1/4"
      Standard
      S

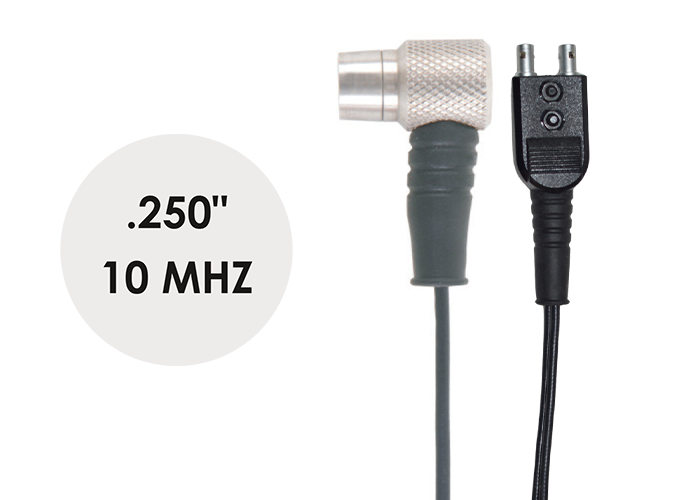

      T-102-4000
      1/4"
      Standard
      S
      T-202-4001
      1/4"
      Standard
      S

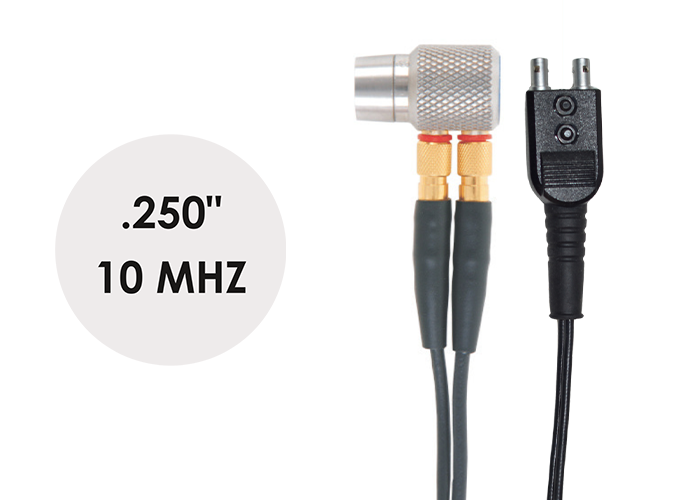

      T-302-4001
      1/4"
      Standard
      S

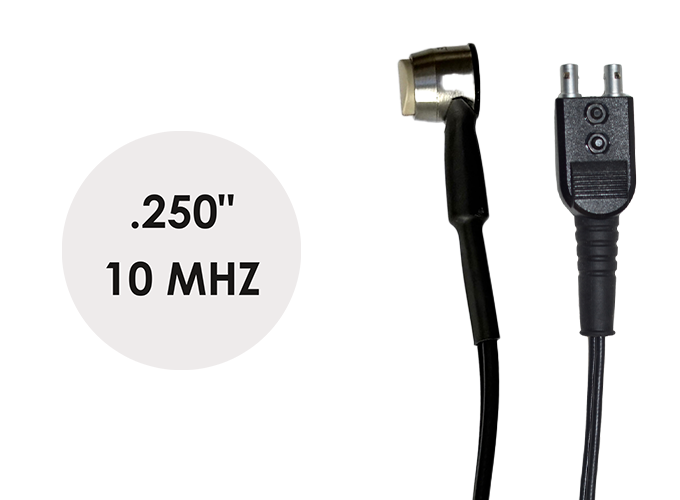

      T-162-4110
      1/4"
      Low Profile 1" Wand
      S

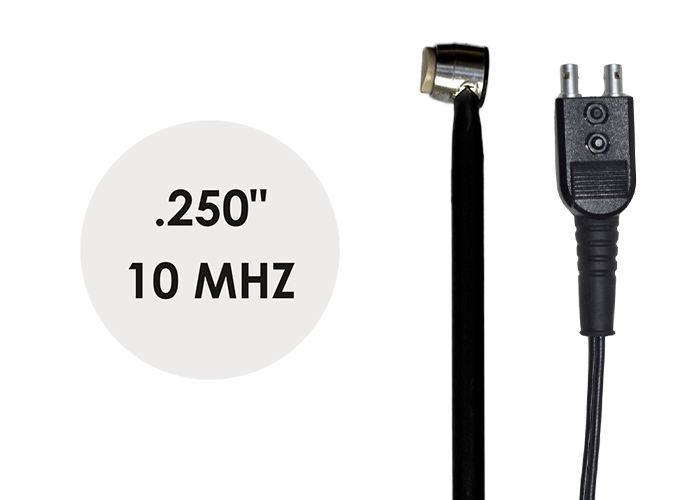

      T-132-4110
      1/4"
      Low Profile 9" Wand
      S

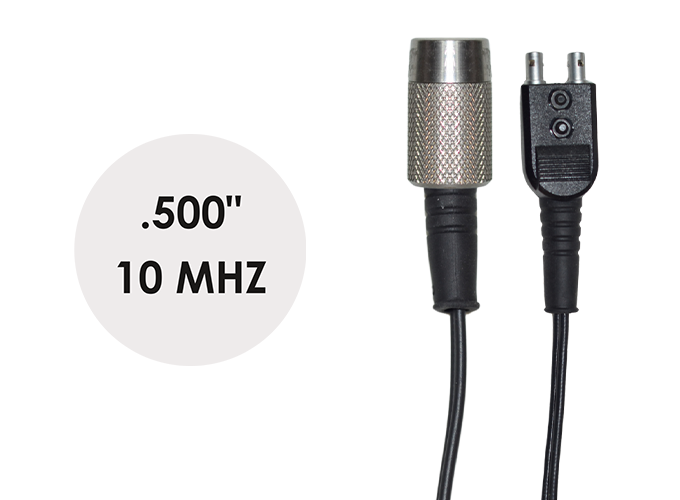

      T-004-4000
      1/2"
      Standard
      S

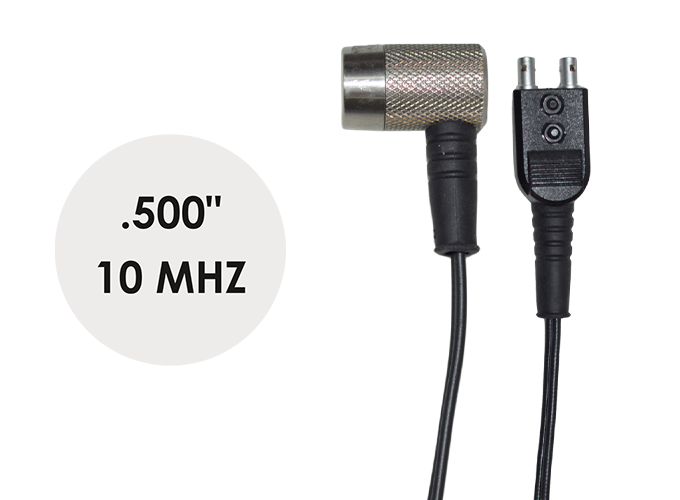

      T-104-4000
      1/2"
      Standard
      S

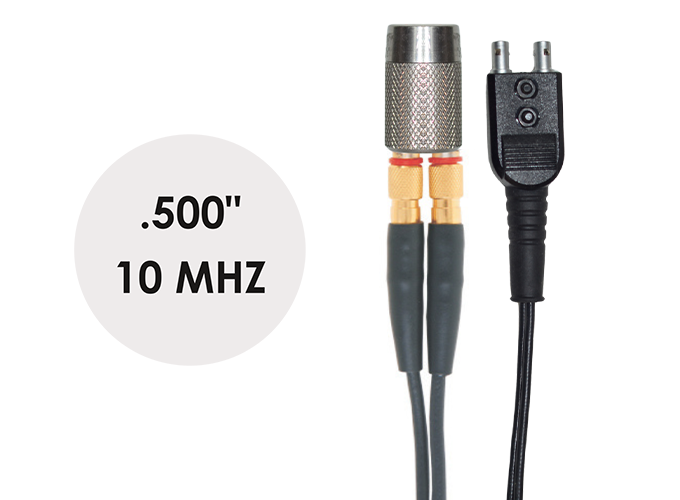

      T-204-4001
      1/2"
      Standard
      S

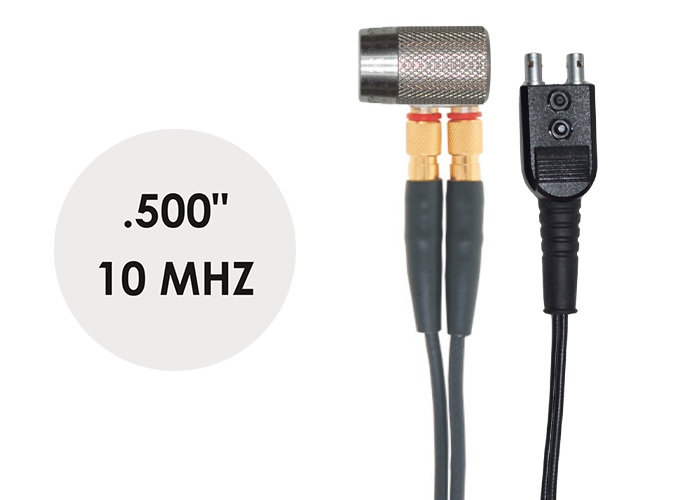

      T-304-4001
      1/2"
      Standard
      S

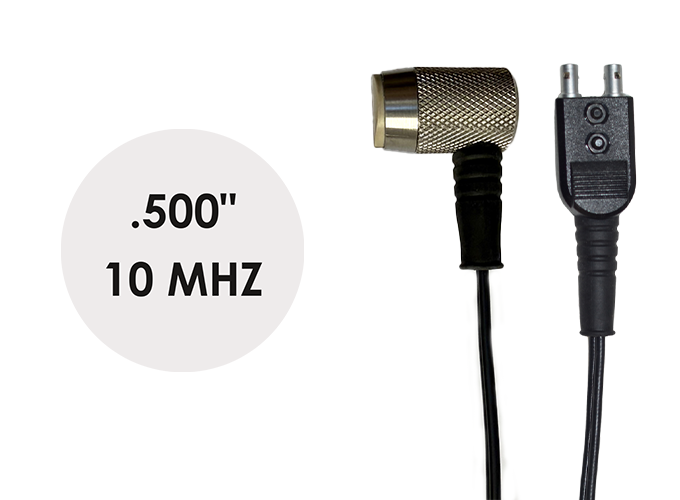

      T-104-4120
      1/2"
      Cylinder Probe - Alum
      S
      1 Damping: S - Standard Damping Transducer, CT - Damped Coating Thickness Transducer, HD - Highly Damped Transducer
      The maximum temperature range of a Standard Transducer is 126°C (260°F)
      2 The maximum temperature range of a High Temperature Transducer is 335°C (635°F) except T-214-2001 which has a maximum temperate range of 482°C (900°F)
  • Part Numbers
    • Part Numbers
      Dual Element Transducers
      • 1.00 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Potted Top
        • Part Number : T-004-0000

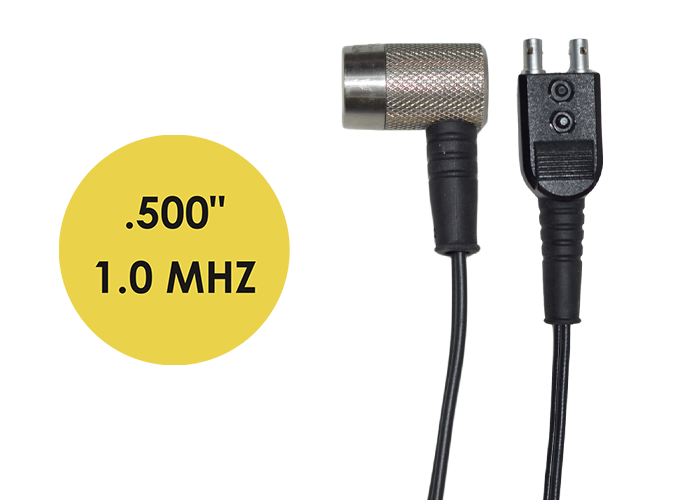

      • 1.00 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Potted Side
        • Part Number : T-104-0000

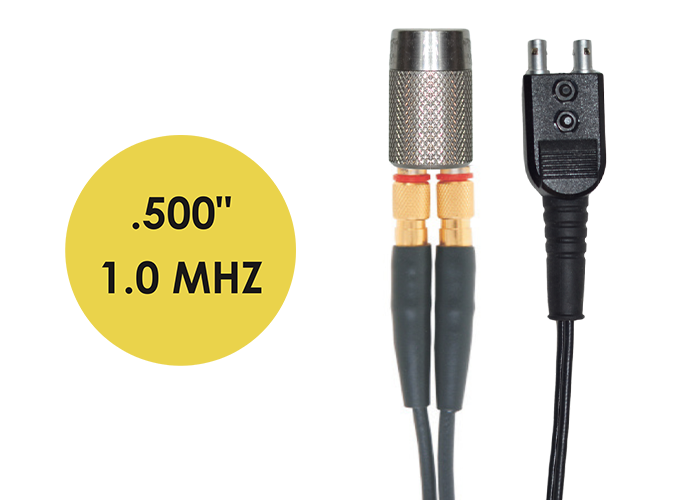

      • 1.00 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Microdot Top
        • Part Number : T-204-0001

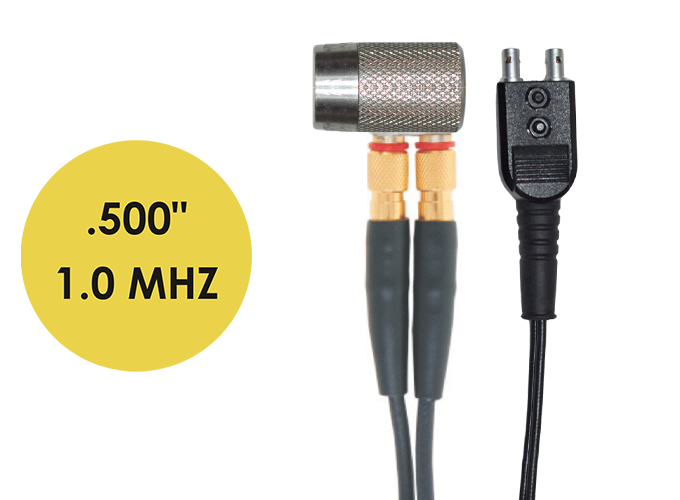

      • 1.00 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Microdot Side
        • Part Number : T-304-0001

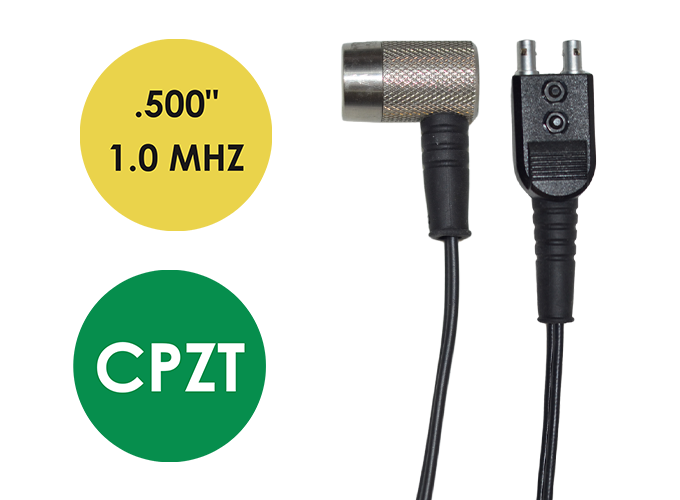

      • 1.00 MHz 1/2" Dual Element Thickness Transducer - Composite - Standard Damping - Potted Side
        • Part Number : T-104-0600

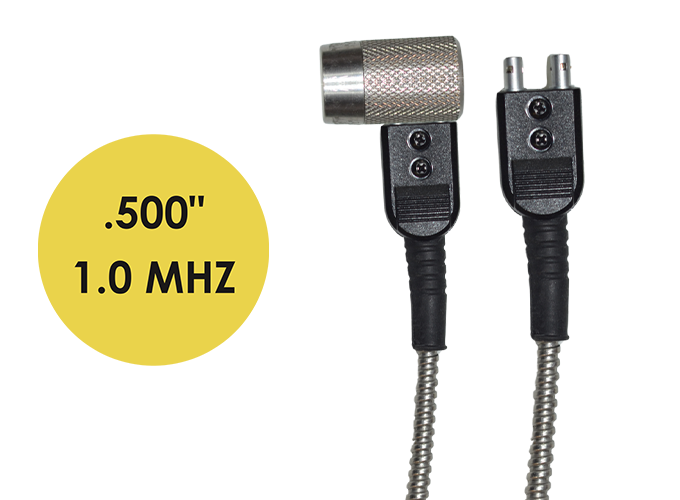

      • 1.00 MHz 1/2" Dual Element Thickness Transducer - Armoured - Standard Damping - Lemo Side
        • Part Number : T-904-0009
      • 2.25 MHz 1/4" Dual Element Thickness Transducer - Standard Damping - Potted Top
        • Part Number : T-002-1000
      • 2.25 MHz 1/4" Dual Element Thickness Transducer - Standard Damping - Potted Side
        • Part Number : T-102-1000

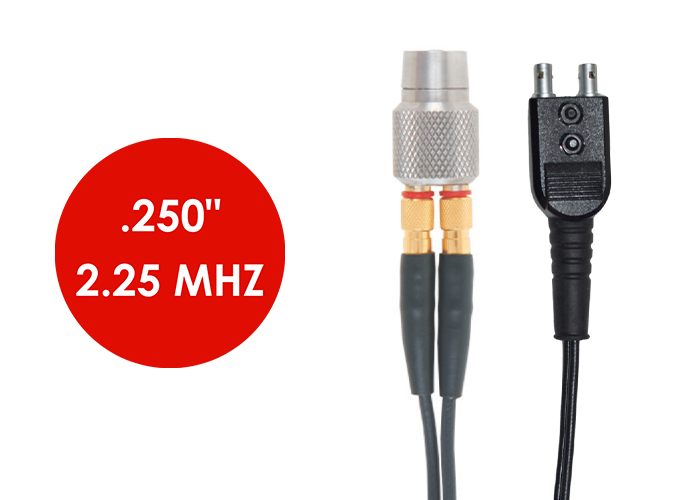

      • 2.25 MHz 1/4" Dual Element Thickness Transducer - Standard Damping - Microdot Top
        • Part Number : T-202-1001
      • 2.25 MHz 1/4" Dual Element Thickness Transducer - Standard Damping - Microdot Side
        • Part Number : T-302-1001

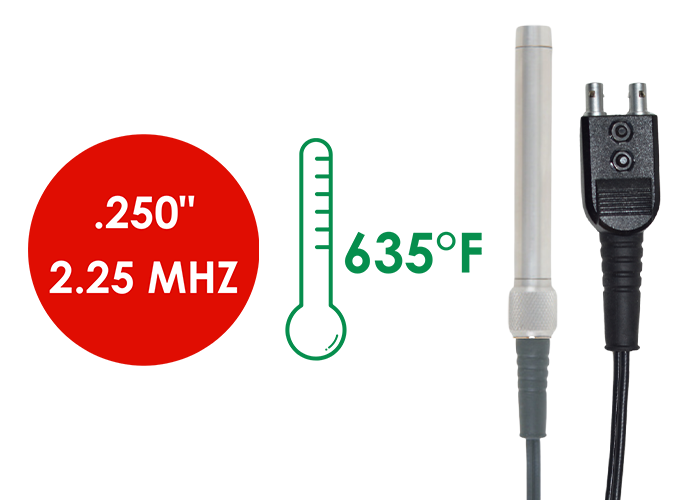

      • 2.25 MHz 1/4" Dual Element Thickness Transducer - Hi Temp - Standard Damping - Potted Top
        • Part Number : T-042-1000

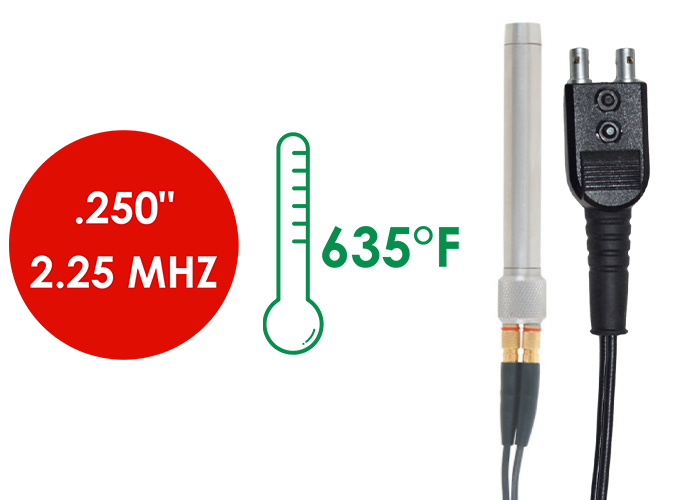

      • 2.25 MHz 1/4" Dual Element Thickness Transducer - Hi Temp - Standard Damping - Microdot Top
        • Part Number : T-242-1001

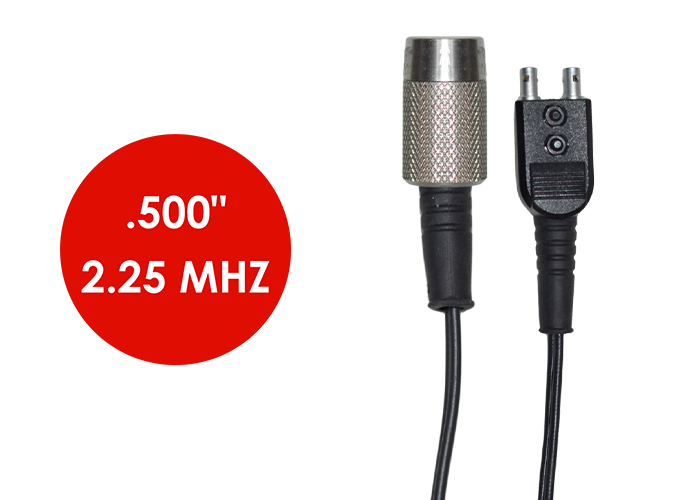

      • 2.25 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Potted Top
        • Part Number : T-004-1000

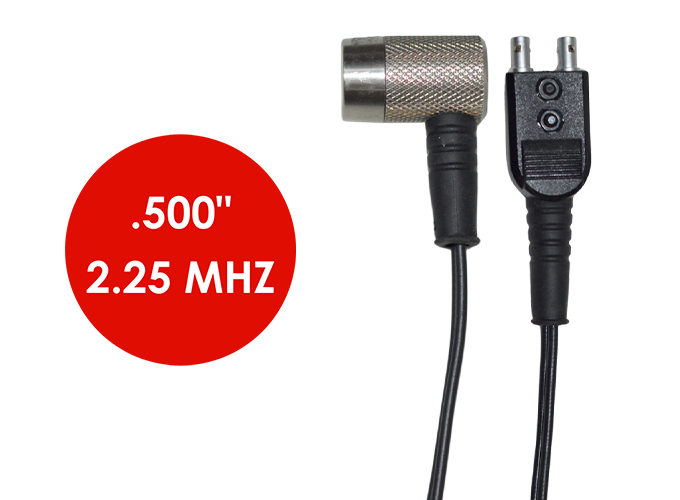

      • 2.25 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Potted Side
        • Part Number : T-104-1000

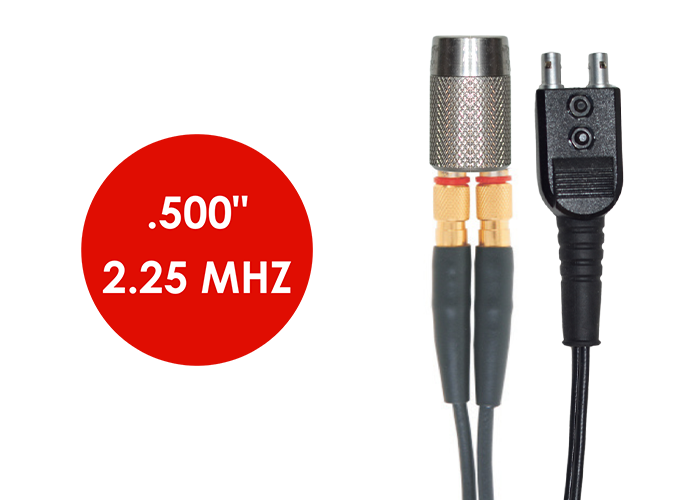

      • 2.25 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Microdot Top
        • Part Number : T-204-1001
      • 2.25 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Microdot Side
        • Part Number : T-304-1001
      • 2.25 MHz 1/2" Dual Element Thickness Transducer - Hi Temp - Standard Damping - Potted Top
        • Part Number : T-044-1000
      • 2.25 MHz 1/2" Dual Element Thickness Transducer - Hi Temp - Standard Damping - Microdot Top
        • Part Number : T-244-1001
      • 2.25 MHz 1/2" Dual Element Thickness Transducer - Composite - Standard Damping - Potted Side
        • Part Number : T-104-1600
      • 2.25 MHz 1/2" Dual Element Thickness Transducer - Armoured - Standard Damping - Lemo Side
        • Part Number : T-904-1009
      • 3.50 MHz 1/2" Dual Element Thickness Transducer - Highly Damped - ThruPaint - Potted Side
        • Part Number : T-104-9700
      • 3.50 MHz 1/2" Dual Element Thickness Transducer - Coating Thickness - ThruPaint - Potted Side
        • Part Number : T-104-9900
      • 5.00 MHz 3/16" Dual Element Thickness Transducer - Standard Damping - Potted Top
        • Part Number : T-001-2000

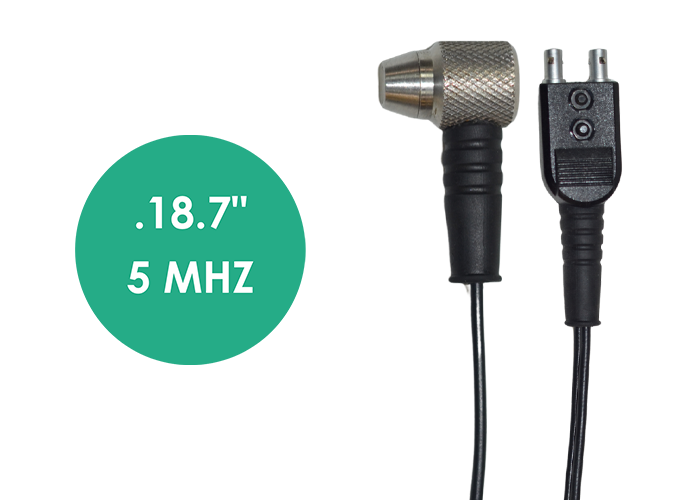

      • 5.00 MHz 3/16" Dual Element Thickness Transducer - Standard Damping - Potted Side
        • Part Number : T-101-2000
      • 5.00 MHz 3/16" Dual Element Thickness Transducer - Highly Damped - ThruPaint - Potted Side
        • Part Number : T-101-2700

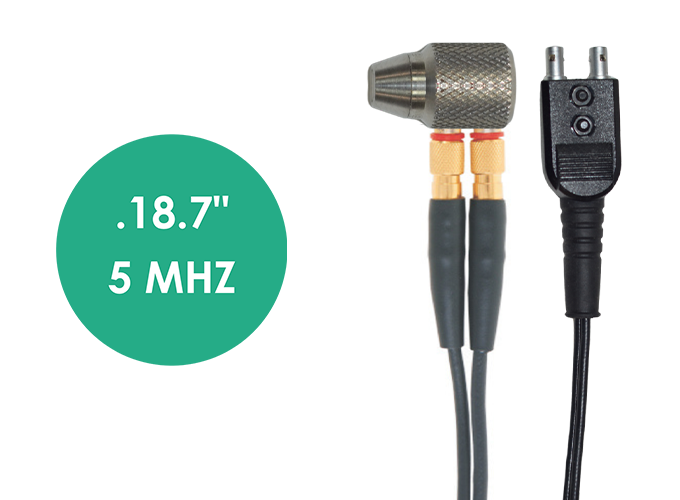

      • 5.00 MHz 3/16" Dual Element Thickness Transducer - Standard Damping - Microdot Side
        • Part Number : T-301-2001
      • 5.00 MHz 3/16" Dual Element Thickness Transducer - Low Profile - Standard Damping - Potted Side
        • Part Number : T-121-2100

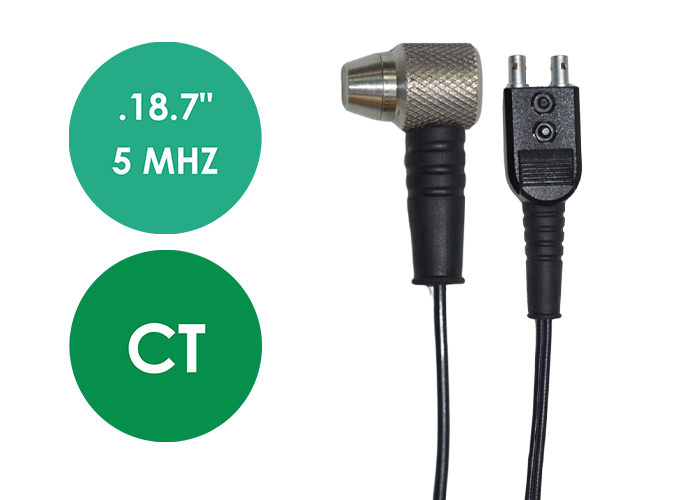

      • 5.00 MHz 3/16" Dual Element Thickness Transducer - Coating Thickness - ThruPaint - Potted Side
        • Part Number : T-101-2900

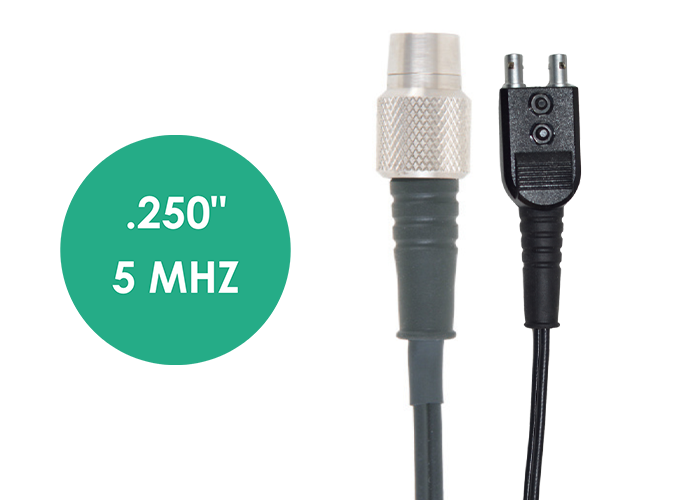

      • 5.00 MHz 1/4" Dual Element Thickness Transducer - Standard Damping - Potted Top
        • Part Number : T-002-2000

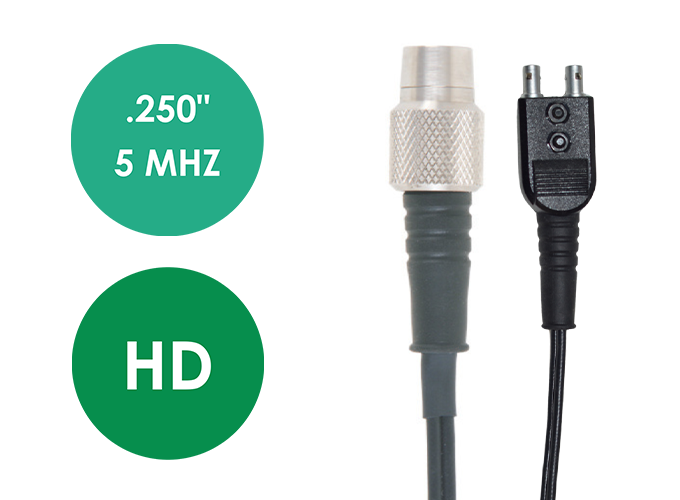

      • 5.00 MHz 1/4" Dual Element Thickness Transducer - Highly Damped - ThruPaint - Potted Top
        • Part Number : T-002-2700
      • 5.00 MHz 1/4" Dual Element Thickness Transducer - Standard Damping - Potted Side
        • Part Number : T-102-2000

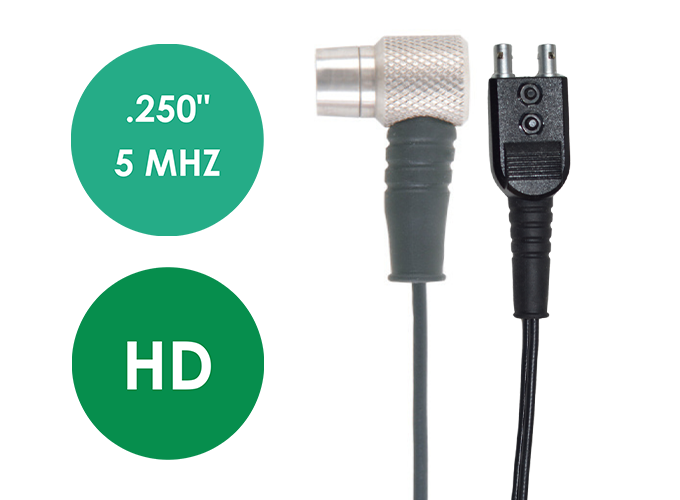

      • 5.00 MHz 1/4" Dual Element Thickness Transducer - Highly Damped - ThruPaint - Potted Side
        • Part Number : T-102-2700

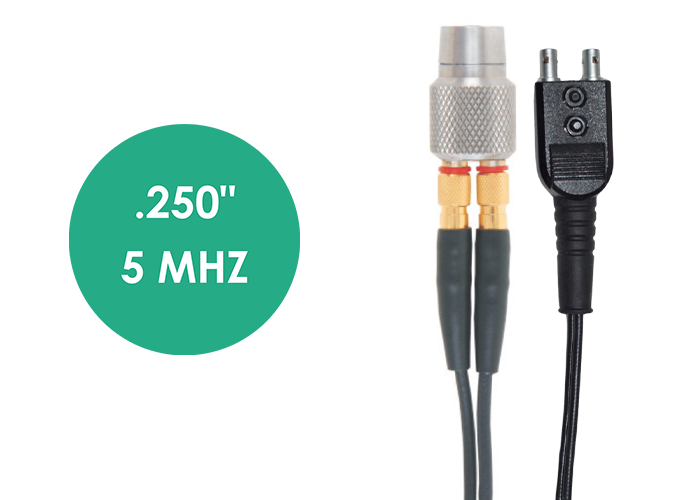

      • 5.00 MHz 1/4" Dual Element Thickness Transducer - Standard Damping - Microdot Top
        • Part Number : T-202-2001

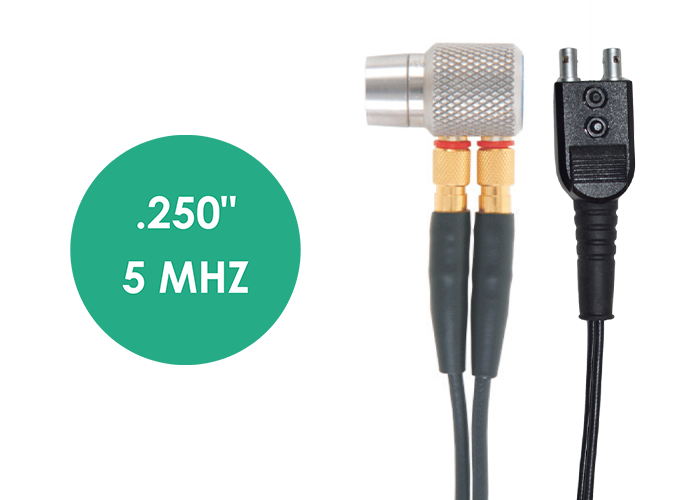

      • 5.00 MHz 1/4" Dual Element Thickness Transducer - Standard Damping - Microdot Side
        • Part Number : T-302-2001

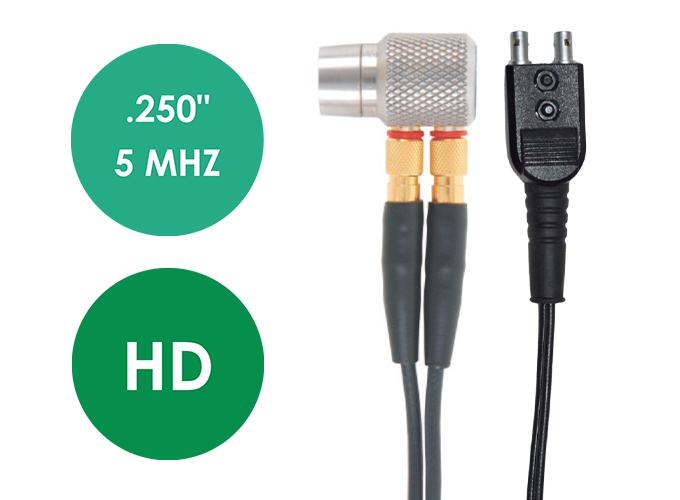

      • 5.00 MHz 1/4" Dual Element Thickness Transducer - Highly Damped - ThruPaint - Microdot Side
        • Part Number : T-302-2701

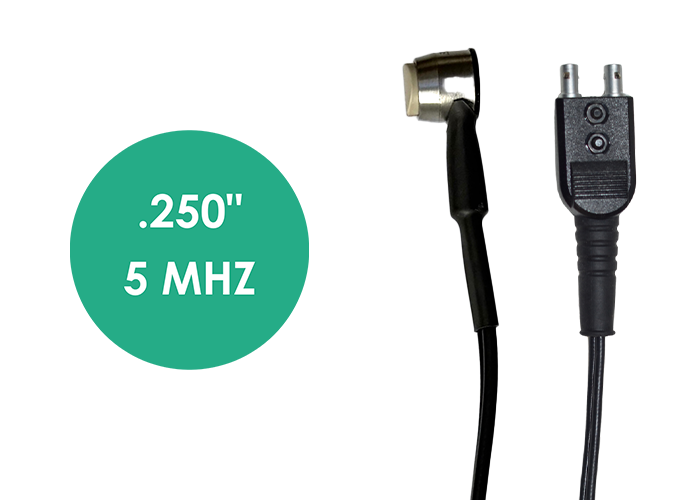

      • 5.00 MHz 1/4" Dual Element Thickness Transducer - Low Profile 1" Wand - Standard Damping - Potted Side
        • Part Number : T-162-2110

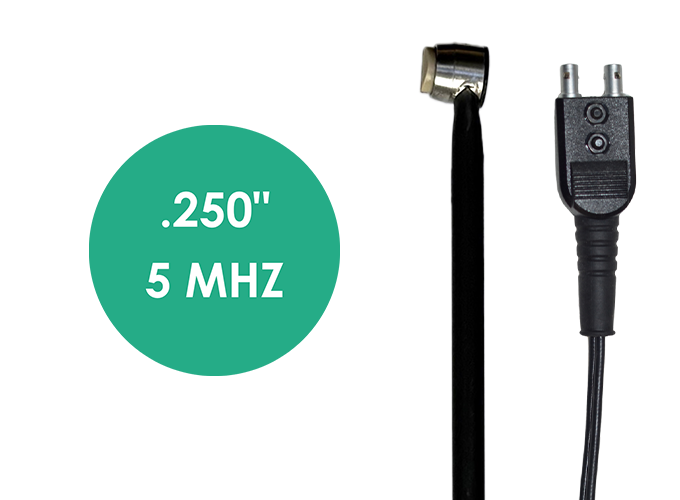

      • 5.00 MHz 1/4" Dual Element Thickness Transducer - Low Profile 9" Wand - Standard Damping - Potted Side
        • Part Number : T-132-2110
      • 5.00 MHz 1/4" Dual Element Thickness Transducer - Coating Thickness - ThruPaint - Potted Side
        • Part Number : T-102-2900
      • 5.00 MHz 1/4" Dual Element Thickness Transducer - Coating Thickness - ThruPaint - Microdot Side
        • Part Number : T-302-2901

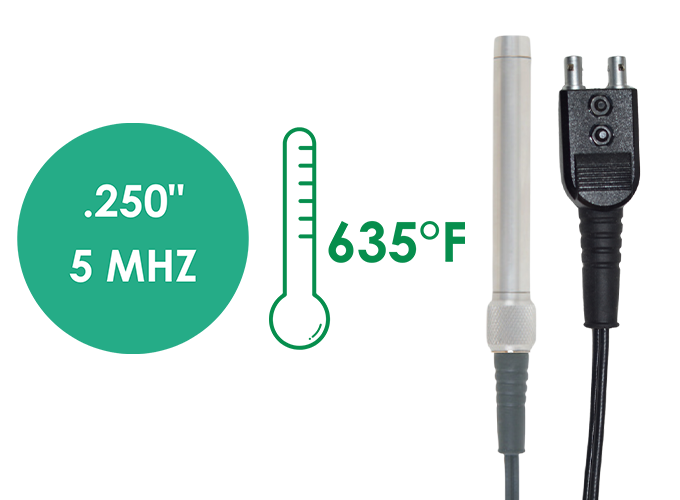

      • 5.00 MHz 1/4" Dual Element Thickness Transducer - Hi Temp - Standard Damping - Potted Top
        • Part Number : T-042-2000

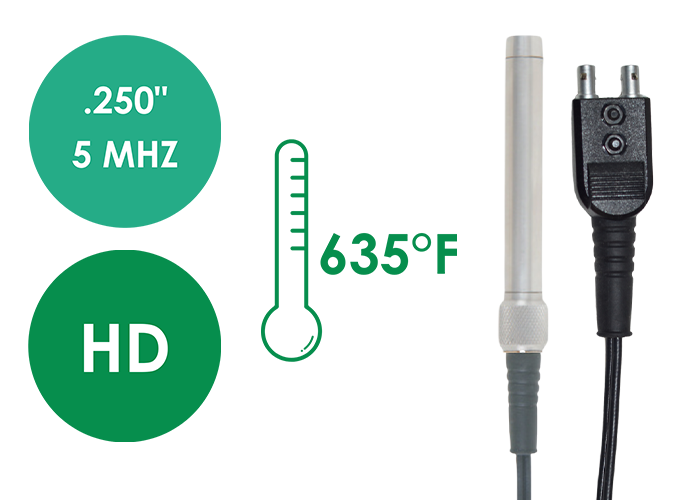

      • 5.00 MHz 1/4" Dual Element Thickness Transducer - High Temp - Highly Damped - ThruPaint - Potted Top
        • Part Number : T-042-2700

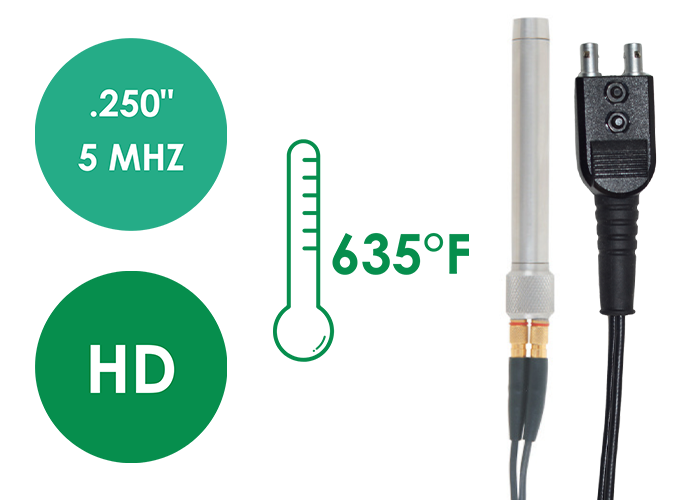

      • 5.00 MHz 1/4" Dual Element Thickness Transducer - Hi Temp - Highly Damped - ThruPaint - Microdot Top
        • Part Number : T-212-2001
      • 5.00 MHz 1/4" Dual Element Thickness Transducer - Hi Temp - Standard Damping - Microdot Top
        • Part Number : T-242-2001
      • 5.00 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Potted Top
        • Part Number : T-004-2000
      • 5.00 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Potted Side
        • Part Number : T-104-2000

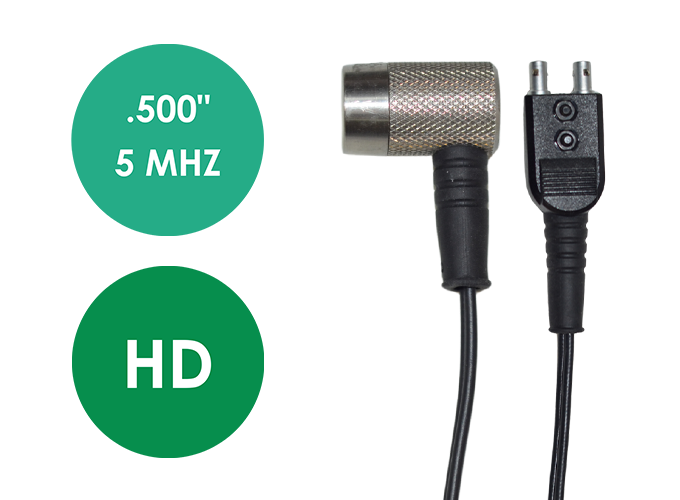

      • 5.00 MHz 1/2" Dual Element Thickness Transducer - Highly Damped - ThruPaint - Potted Side
        • Part Number : T-104-2700

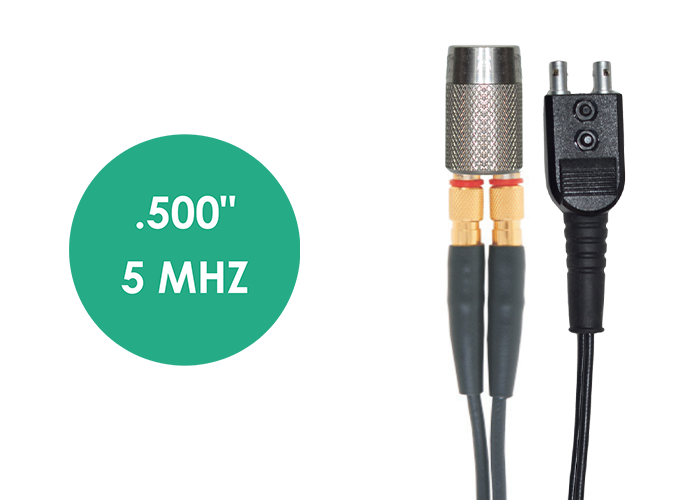

      • 5.00 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Microdot Top
        • Part Number : T-204-2001
      • 5.00 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Microdot Side
        • Part Number : T-304-2001

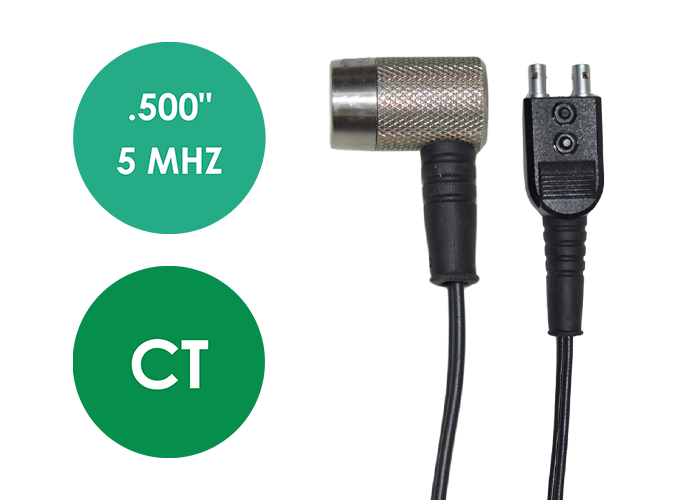

      • 5.00 MHz 1/2" Dual Element Thickness Transducer - Coating Thickness - ThruPaint - Potted Side
        • Part Number : T-104-2900
      • 5.00 MHz 1/2" Dual Element Thickness Transducer - Hi Temp - Standard Damping - Potted Top
        • Part Number : T-044-2000

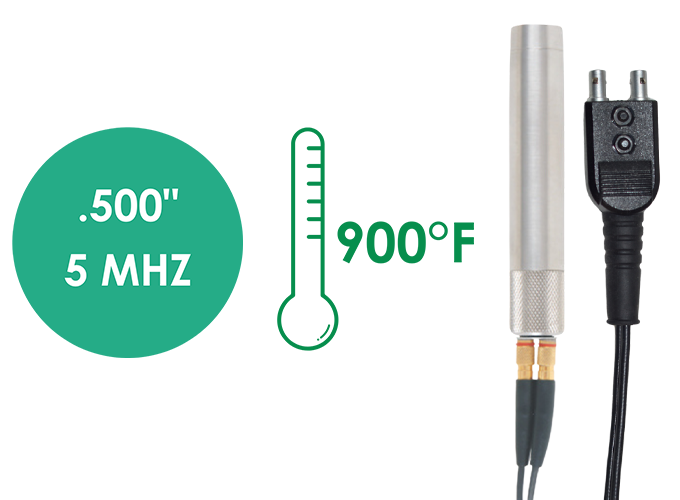

      • 5.00 MHz 1/2" Dual Element Thickness Transducer - Hi Temp 900°F - Standard Damping - Microdot Top
        • Part Number : T-214-2001
      • 5.00 MHz 1/2" Dual Element Thickness Transducer - Hi Temp - Standard Damping - Microdot Top
        • Part Number : T-244-2001
      • 5.00 MHz 1/2" Dual Element Thickness Transducer - High Temp - Highly Damped - ThruPaint - Potted Top
        • Part Number : T-044-2700
      • 5.00 MHz 1/2" Dual Element Thickness Transducer - Armoured - Standard Damping - Lemo Side
        • Part Number : T-904-2009

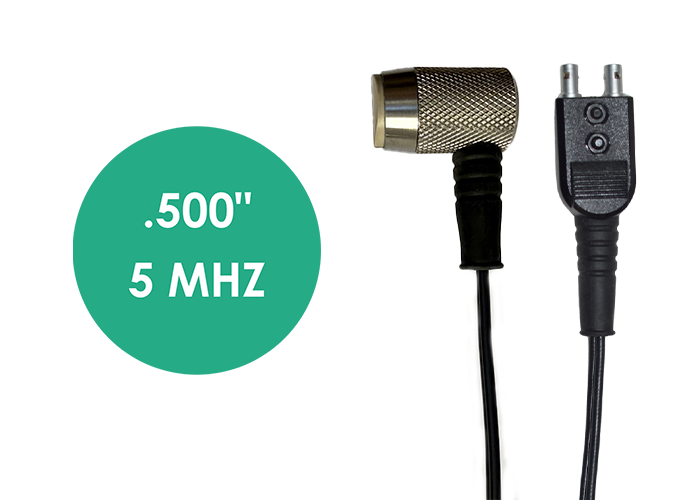

      • 5.00 MHz 1/2" Dual Element Thickness Transducer - Cylinder Probe - Iron - Standard Damping - Potted Side
        • Part Number : T-104-2120
      • 7.50 MHz 3/16" Dual Element Thickness Transducer - Standard Damping - Potted Top
        • Part Number : T-001-3000
      • 7.50 MHz 3/16" Dual Element Thickness Transducer - Standard Damping - Potted Side
        • Part Number : T-101-3000
      • 7.50 MHz 3/16" Dual Element Thickness Transducer - Coating Thickness - ThruPaint - Potted Side
        • Part Number : T-101-3900
      • 7.50 MHz 1/4" Dual Element Thickness Transducer - Exxon Spec - Standard Damping - Potted Top
        • Part Number : T-002-3200
      • 7.50 MHz 1/4" Dual Element Thickness Transducer - Exxon Spec - Standard Damping - Potted Side
        • Part Number : T-102-3200
      • 7.50 MHz 1/4" Dual Element Thickness Transducer - Exxon Spec - Standard Damping - Microdot Top
        • Part Number : T-202-3201
      • 7.50 MHz 1/4" Dual Element Thickness Transducer - Exxon Spec - Standard Damping - Microdot Side
        • Part Number : T-302-3201
      • 7.50 MHz 1/4" Dual Element Thickness Transducer - High Resolution - Standard Damping - Potted Top
        • Part Number : T-002-3300
      • 7.50 MHz 1/4" Dual Element Thickness Transducer - High Resolution - Standard Damping - Potted Side
        • Part Number : T-102-3300
      • 7.50 MHz 1/4" Dual Element Thickness Transducer - Highly Damped - ThruPaint - Potted Side
        • Part Number : T-102-3700
      • 7.50 MHz 1/4" Dual Element Thickness Transducer - Coating Thickness - ThruPaint - Potted Side
        • Part Number : T-102-3900
      • 7.50 MHz 1/4" Dual Element Thickness Transducer - High Resolution - Standard Damping - Microdot Top
        • Part Number : T-202-3301
      • 7.50 MHz 1/4" Dual Element Thickness Transducer - High Resolution - Standard Damping - Microdot Side
        • Part Number : T-302-3301
      • 10.00 MHz 3/16" Dual Element Thickness Transducer - Standard Damping - Potted Side
        • Part Number : T-101-4000
      • 10.00 MHz 3/16" Dual Element Thickness Transducer - Standard Damping - Potted Top
        • Part Number : T-001-4000
      • 10.00 MHz 1/4" Dual Element Thickness Transducer - Standard Damping - Potted Top
        • Part Number : T-002-4000
      • 10.00 MHz 1/4" Dual Element Thickness Transducer - Standard Damping - Potted Side
        • Part Number : T-102-4000
      • 10.00 MHz 1/4" Dual Element Thickness Transducer - Standard Damping - Microdot Top
        • Part Number : T-202-4001
      • 10.00 MHz 1/4" Dual Element Thickness Transducer - Standard Damping - Microdot Side
        • Part Number : T-302-4001
      • 10.00 MHz 1/4" Dual Element Thickness Transducer - Low Profile 1" Wand - Standard Damping - Potted Side
        • Part Number : T-162-4110
      • 10.00 MHz 1/4" Dual Element Thickness Transducer - Low Profile 9" Wand - Standard Damping - Potted Side
        • Part Number : T-132-4110
      • 10.00 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Potted Top
        • Part Number : T-004-4000
      • 10.00 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Potted Side
        • Part Number : T-104-4000
      • 10.00 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Microdot Top
        • Part Number : T-204-4001
      • 10.00 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Microdot Side
        • Part Number : T-304-4001
      • 10.00 MHz 1/2" Dual Element Thickness Transducer - Cylinder Probe - Alum - Standard Damping - Potted Side
        • Part Number : T-104-4120
      • 5.00MHz 1/2" Dual Element Transducer - Highly Damped - ThruPaint - Potted Side
        • Part Number : T-1049-2700
      • 1.00 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Potted Side
        • Part Number : T-1049-0000
      • 5.00MHz 1/4" Dual Element Transducer - Standard Damping - Potted Side
        • Part Number : T-1029-2000
      • 5.00MHz 1/4" Dual Element Transducer - Hi Temp - Standard Damping - Potted Top
        • Part Number : T-0429-2000
      • 7.50MHz 3/16" Dual Element Thickness Transducer - Standard Damping - Potted Side
        • Part Number : T-1019-3000
      • 7.50MHz 1/4" Dual Element Transducers - High Resolution - Standard Damping - Potted Side
        • Part Number : T-1029-3300
      • 5.00MHz 1/4" Dual Element Transducer - Highly Damped - ThruPaint - Potted Side
        • Part Number : T-1029-2700
      • 3.50 MHz 1/2" Dual Element Thickness Transducer - Armor Cable–Hi Damped - ThruPaint - Lemo Side
        • Part Number : T-904-9709

Dual Element Transducers

Dual-Element-MTG_1
Dual-Element_1

The Dakota range of Dual Element Transducers is designed to ultrasonically measure material thickness when access is only available to one side of the material under inspection.

Summary

main product photo

Dual Element Transducers

Dual element transducers are designed with two crystals in one case, separated by an acoustic barrier. One crystal transmits a signal and receives on another crystal, this improves signal measuring speeds.

The crystals are mounted at slight angles towards each other. Enabling better near surface focusing.

Twin Crystal transducers are ideal for inspecting metal substrates but can also measure thicknesses of other materials, such as plastic, composites or fiberglass.

Technical Specification
Dual Element Transducers
Connector Type Suitable for
Part Number Probe Diameter Probe Characteristic
Damping
ThruPaint™
Potted
Top
Side
CX 2
CX 4
CX8-DL
1.00 MHz Dual Element Thickness Transducer
Materials used: Cast iron, Plastics (polypropylene, polyethylene, etc.), Fiberglass
T-1049-0000
1/2"
Standard
S
5.00MHz Dual Element Transducer
Materials used: Steels, Glass, Thin plastics
T-1029-2000
1/4"
Standard
S
T-1029-2700
1/4"
Standard
HD
T-0429-2000
1/4"
Hi Temp2
S
T-1049-2700
1/2"
Standard
HD
7.50MHz Dual Element Thickness Transducer
Materials Used: Steels, Aluminum, Glass, Thin Plastics
T-1019-3000
3/16"
Standard
S
T-1029-3300
1/4"
High Resolution
S



Connector Type Suitable for
Part Number Probe Diameter Probe Characteristic
Damping
ThruPaint™
Potted
Microdot
Lemo
Top
Side
ZX Range
MX Range
CMX Range
R9
PR8-DL
FX70
FX80
1.00 MHz Dual Element Thickness Transducer
Materials used: Cast iron, Plastics (polypropylene, polyethylene, etc.), Fiberglass
T-004-0000
1/2"
Standard
S
T-104-0000
1/2"
Standard
S
T-204-0001
1/2"
Standard
S
T-304-0001
1/2"
Standard
S
T-104-0600
1/2"
Composite
S
T-904-0009
1/2"
Armoured
S
2.25 MHz Dual Element Thickness Transducer
Materials used: Cast iron, Plastics (polypropylene, polyethylene, etc.), Thin Fiberglass
T-002-1000
1/4"
Standard
S
T-102-1000
1/4"
Standard
S
T-202-1001
1/4"
Standard
S
T-302-1001
1/4"
Standard
S
T-042-1000
1/4"
Hi Temp2
S
T-242-1001
1/4"
Hi Temp2
S
T-004-1000
1/2"
Standard
S
T-104-1000
1/2"
Standard
S
T-204-1001
1/2"
Standard
S
T-304-1001
1/2"
Standard
S
T-044-1000
1/2"
Hi Temp2
S
T-244-1001
1/2"
Hi Temp2
S
T-104-1600
1/2"
Composite
S
T-904-1009
1/2"
Armoured
S
3.50 MHz Dual Element Thickness Transducer
Materials used: Thru Coating multiple echo, Cast iron, Plastics (polypropylene, polyethylene, etc.), Thin Fiberglass
T-104-9700
1/2"
Standard
HD
T-104-9900
1/2"
Coating Thickness
CT
5.00 MHz Dual Element Thickness Transducer
Materials used: Steels, Glass, Thin plastics
T-001-2000
3/16"
Standard
S
T-101-2000
3/16"
Standard
S
T-101-2700
3/16"
Standard
HD
T-301-2001
3/16"
Standard
S
T-121-2100
3/16"
Low Profile
S
T-101-2900
3/16"
Coating Thickness
CT
T-002-2000
1/4"
Standard
S
T-002-2700
1/4"
Standard
HD
T-102-2000
1/4"
Standard
S
T-102-2700
1/4"
Standard
HD
T-202-2001
1/4"
Standard
S
T-302-2001
1/4"
Standard
S
T-302-2701
1/4"
Standard
HD
T-162-2110
1/4"
Low Profile 1" Wand
S
T-132-2110
1/4"
Low Profile 9" Wand
S
T-102-2900
1/4"
Coating Thickness
CT
T-302-2901
1/4"
Coating Thickness
CT
T-042-2000
1/4"
Hi Temp2
S
T-042-2700
1/4"
Hi Temp2
HD
T-212-2001
1/4"
Hi Temp2
HD
T-242-2001
1/4"
Hi Temp2
S
T-004-2000
1/2"
Standard
S
T-104-2000
1/2"
Standard
S
T-104-2700
1/2"
Standard
HD
T-204-2001
1/2"
Standard
S
T-304-2001
1/2"
Standard
S
T-104-2900
1/2"
Coating Thickness
CT
T-044-2000
1/2"
Hi Temp2
S
T-214-2001
1/2"
Hi Temp2
S
T-244-2001
1/2"
Hi Temp2
S
T-044-2700
1/2"
Hi Temp2
HD
T-904-2009
1/2"
Armoured
S
T-104-2120
1/2"
Cylinder Probe - Iron
S
7.50 MHz Dual Element Thickness Transducer
Materials Used: Steels, Aluminum, Glass, Thin Plastics
T-001-3000
3/16"
Standard
S
T-101-3000
3/16"
Standard
S
T-101-3900
3/16"
Coating Thickness
CT
T-002-3200
1/4"
Exxon Spec
S
T-102-3200
1/4"
Exxon Spec
S
T-202-3201
1/4"
Exxon Spec
S
T-302-3201
1/4"
Exxon Spec
S
T-002-3300
1/4"
High Resolution
S
T-102-3300
1/4"
High Resolution
S
T-102-3700
1/4"
Standard
HD
T-102-3900
1/4"
Coating Thickness
CT
T-202-3301
1/4"
High Resolution
S
T-302-3301
1/4"
High Resolution
S
10.00 MHz Dual Element Thickness Transducer
Materials Used: Aluminum, Titanium, Steels
T-101-4000
3/16"
Standard
S
T-001-4000
3/16"
Standard
S
T-002-4000
1/4"
Standard
S
T-102-4000
1/4"
Standard
S
T-202-4001
1/4"
Standard
S
T-302-4001
1/4"
Standard
S
T-162-4110
1/4"
Low Profile 1" Wand
S
T-132-4110
1/4"
Low Profile 9" Wand
S
T-004-4000
1/2"
Standard
S
T-104-4000
1/2"
Standard
S
T-204-4001
1/2"
Standard
S
T-304-4001
1/2"
Standard
S
T-104-4120
1/2"
Cylinder Probe - Alum
S
1 Damping: S - Standard Damping Transducer, CT - Damped Coating Thickness Transducer, HD - Highly Damped Transducer
The maximum temperature range of a Standard Transducer is 126°C (260°F)
2 The maximum temperature range of a High Temperature Transducer is 335°C (635°F) except T-214-2001 which has a maximum temperate range of 482°C (900°F)
Part Numbers
Dual Element Transducers
  • 1.00 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Potted Top
    • Part Number : T-004-0000
  • 1.00 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Potted Side
    • Part Number : T-104-0000
  • 1.00 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Microdot Top
    • Part Number : T-204-0001
  • 1.00 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Microdot Side
    • Part Number : T-304-0001
  • 1.00 MHz 1/2" Dual Element Thickness Transducer - Composite - Standard Damping - Potted Side
    • Part Number : T-104-0600
  • 1.00 MHz 1/2" Dual Element Thickness Transducer - Armoured - Standard Damping - Lemo Side
    • Part Number : T-904-0009
  • 2.25 MHz 1/4" Dual Element Thickness Transducer - Standard Damping - Potted Top
    • Part Number : T-002-1000
  • 2.25 MHz 1/4" Dual Element Thickness Transducer - Standard Damping - Potted Side
    • Part Number : T-102-1000
  • 2.25 MHz 1/4" Dual Element Thickness Transducer - Standard Damping - Microdot Top
    • Part Number : T-202-1001
  • 2.25 MHz 1/4" Dual Element Thickness Transducer - Standard Damping - Microdot Side
    • Part Number : T-302-1001
  • 2.25 MHz 1/4" Dual Element Thickness Transducer - Hi Temp - Standard Damping - Potted Top
    • Part Number : T-042-1000
  • 2.25 MHz 1/4" Dual Element Thickness Transducer - Hi Temp - Standard Damping - Microdot Top
    • Part Number : T-242-1001
  • 2.25 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Potted Top
    • Part Number : T-004-1000
  • 2.25 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Potted Side
    • Part Number : T-104-1000
  • 2.25 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Microdot Top
    • Part Number : T-204-1001
  • 2.25 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Microdot Side
    • Part Number : T-304-1001
  • 2.25 MHz 1/2" Dual Element Thickness Transducer - Hi Temp - Standard Damping - Potted Top
    • Part Number : T-044-1000
  • 2.25 MHz 1/2" Dual Element Thickness Transducer - Hi Temp - Standard Damping - Microdot Top
    • Part Number : T-244-1001
  • 2.25 MHz 1/2" Dual Element Thickness Transducer - Composite - Standard Damping - Potted Side
    • Part Number : T-104-1600
  • 2.25 MHz 1/2" Dual Element Thickness Transducer - Armoured - Standard Damping - Lemo Side
    • Part Number : T-904-1009
  • 3.50 MHz 1/2" Dual Element Thickness Transducer - Highly Damped - ThruPaint - Potted Side
    • Part Number : T-104-9700
  • 3.50 MHz 1/2" Dual Element Thickness Transducer - Coating Thickness - ThruPaint - Potted Side
    • Part Number : T-104-9900
  • 5.00 MHz 3/16" Dual Element Thickness Transducer - Standard Damping - Potted Top
    • Part Number : T-001-2000
  • 5.00 MHz 3/16" Dual Element Thickness Transducer - Standard Damping - Potted Side
    • Part Number : T-101-2000
  • 5.00 MHz 3/16" Dual Element Thickness Transducer - Highly Damped - ThruPaint - Potted Side
    • Part Number : T-101-2700
  • 5.00 MHz 3/16" Dual Element Thickness Transducer - Standard Damping - Microdot Side
    • Part Number : T-301-2001
  • 5.00 MHz 3/16" Dual Element Thickness Transducer - Low Profile - Standard Damping - Potted Side
    • Part Number : T-121-2100
  • 5.00 MHz 3/16" Dual Element Thickness Transducer - Coating Thickness - ThruPaint - Potted Side
    • Part Number : T-101-2900
  • 5.00 MHz 1/4" Dual Element Thickness Transducer - Standard Damping - Potted Top
    • Part Number : T-002-2000
  • 5.00 MHz 1/4" Dual Element Thickness Transducer - Highly Damped - ThruPaint - Potted Top
    • Part Number : T-002-2700
  • 5.00 MHz 1/4" Dual Element Thickness Transducer - Standard Damping - Potted Side
    • Part Number : T-102-2000
  • 5.00 MHz 1/4" Dual Element Thickness Transducer - Highly Damped - ThruPaint - Potted Side
    • Part Number : T-102-2700
  • 5.00 MHz 1/4" Dual Element Thickness Transducer - Standard Damping - Microdot Top
    • Part Number : T-202-2001
  • 5.00 MHz 1/4" Dual Element Thickness Transducer - Standard Damping - Microdot Side
    • Part Number : T-302-2001
  • 5.00 MHz 1/4" Dual Element Thickness Transducer - Highly Damped - ThruPaint - Microdot Side
    • Part Number : T-302-2701
  • 5.00 MHz 1/4" Dual Element Thickness Transducer - Low Profile 1" Wand - Standard Damping - Potted Side
    • Part Number : T-162-2110
  • 5.00 MHz 1/4" Dual Element Thickness Transducer - Low Profile 9" Wand - Standard Damping - Potted Side
    • Part Number : T-132-2110
  • 5.00 MHz 1/4" Dual Element Thickness Transducer - Coating Thickness - ThruPaint - Potted Side
    • Part Number : T-102-2900
  • 5.00 MHz 1/4" Dual Element Thickness Transducer - Coating Thickness - ThruPaint - Microdot Side
    • Part Number : T-302-2901
  • 5.00 MHz 1/4" Dual Element Thickness Transducer - Hi Temp - Standard Damping - Potted Top
    • Part Number : T-042-2000
  • 5.00 MHz 1/4" Dual Element Thickness Transducer - High Temp - Highly Damped - ThruPaint - Potted Top
    • Part Number : T-042-2700
  • 5.00 MHz 1/4" Dual Element Thickness Transducer - Hi Temp - Highly Damped - ThruPaint - Microdot Top
    • Part Number : T-212-2001
  • 5.00 MHz 1/4" Dual Element Thickness Transducer - Hi Temp - Standard Damping - Microdot Top
    • Part Number : T-242-2001
  • 5.00 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Potted Top
    • Part Number : T-004-2000
  • 5.00 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Potted Side
    • Part Number : T-104-2000
  • 5.00 MHz 1/2" Dual Element Thickness Transducer - Highly Damped - ThruPaint - Potted Side
    • Part Number : T-104-2700
  • 5.00 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Microdot Top
    • Part Number : T-204-2001
  • 5.00 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Microdot Side
    • Part Number : T-304-2001
  • 5.00 MHz 1/2" Dual Element Thickness Transducer - Coating Thickness - ThruPaint - Potted Side
    • Part Number : T-104-2900
  • 5.00 MHz 1/2" Dual Element Thickness Transducer - Hi Temp - Standard Damping - Potted Top
    • Part Number : T-044-2000
  • 5.00 MHz 1/2" Dual Element Thickness Transducer - Hi Temp 900°F - Standard Damping - Microdot Top
    • Part Number : T-214-2001
  • 5.00 MHz 1/2" Dual Element Thickness Transducer - Hi Temp - Standard Damping - Microdot Top
    • Part Number : T-244-2001
  • 5.00 MHz 1/2" Dual Element Thickness Transducer - High Temp - Highly Damped - ThruPaint - Potted Top
    • Part Number : T-044-2700
  • 5.00 MHz 1/2" Dual Element Thickness Transducer - Armoured - Standard Damping - Lemo Side
    • Part Number : T-904-2009
  • 5.00 MHz 1/2" Dual Element Thickness Transducer - Cylinder Probe - Iron - Standard Damping - Potted Side
    • Part Number : T-104-2120
  • 7.50 MHz 3/16" Dual Element Thickness Transducer - Standard Damping - Potted Top
    • Part Number : T-001-3000
  • 7.50 MHz 3/16" Dual Element Thickness Transducer - Standard Damping - Potted Side
    • Part Number : T-101-3000
  • 7.50 MHz 3/16" Dual Element Thickness Transducer - Coating Thickness - ThruPaint - Potted Side
    • Part Number : T-101-3900
  • 7.50 MHz 1/4" Dual Element Thickness Transducer - Exxon Spec - Standard Damping - Potted Top
    • Part Number : T-002-3200
  • 7.50 MHz 1/4" Dual Element Thickness Transducer - Exxon Spec - Standard Damping - Potted Side
    • Part Number : T-102-3200
  • 7.50 MHz 1/4" Dual Element Thickness Transducer - Exxon Spec - Standard Damping - Microdot Top
    • Part Number : T-202-3201
  • 7.50 MHz 1/4" Dual Element Thickness Transducer - Exxon Spec - Standard Damping - Microdot Side
    • Part Number : T-302-3201
  • 7.50 MHz 1/4" Dual Element Thickness Transducer - High Resolution - Standard Damping - Potted Top
    • Part Number : T-002-3300
  • 7.50 MHz 1/4" Dual Element Thickness Transducer - High Resolution - Standard Damping - Potted Side
    • Part Number : T-102-3300
  • 7.50 MHz 1/4" Dual Element Thickness Transducer - Highly Damped - ThruPaint - Potted Side
    • Part Number : T-102-3700
  • 7.50 MHz 1/4" Dual Element Thickness Transducer - Coating Thickness - ThruPaint - Potted Side
    • Part Number : T-102-3900
  • 7.50 MHz 1/4" Dual Element Thickness Transducer - High Resolution - Standard Damping - Microdot Top
    • Part Number : T-202-3301
  • 7.50 MHz 1/4" Dual Element Thickness Transducer - High Resolution - Standard Damping - Microdot Side
    • Part Number : T-302-3301
  • 10.00 MHz 3/16" Dual Element Thickness Transducer - Standard Damping - Potted Side
    • Part Number : T-101-4000
  • 10.00 MHz 3/16" Dual Element Thickness Transducer - Standard Damping - Potted Top
    • Part Number : T-001-4000
  • 10.00 MHz 1/4" Dual Element Thickness Transducer - Standard Damping - Potted Top
    • Part Number : T-002-4000
  • 10.00 MHz 1/4" Dual Element Thickness Transducer - Standard Damping - Potted Side
    • Part Number : T-102-4000
  • 10.00 MHz 1/4" Dual Element Thickness Transducer - Standard Damping - Microdot Top
    • Part Number : T-202-4001
  • 10.00 MHz 1/4" Dual Element Thickness Transducer - Standard Damping - Microdot Side
    • Part Number : T-302-4001
  • 10.00 MHz 1/4" Dual Element Thickness Transducer - Low Profile 1" Wand - Standard Damping - Potted Side
    • Part Number : T-162-4110
  • 10.00 MHz 1/4" Dual Element Thickness Transducer - Low Profile 9" Wand - Standard Damping - Potted Side
    • Part Number : T-132-4110
  • 10.00 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Potted Top
    • Part Number : T-004-4000
  • 10.00 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Potted Side
    • Part Number : T-104-4000
  • 10.00 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Microdot Top
    • Part Number : T-204-4001
  • 10.00 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Microdot Side
    • Part Number : T-304-4001
  • 10.00 MHz 1/2" Dual Element Thickness Transducer - Cylinder Probe - Alum - Standard Damping - Potted Side
    • Part Number : T-104-4120
  • 5.00MHz 1/2" Dual Element Transducer - Highly Damped - ThruPaint - Potted Side
    • Part Number : T-1049-2700
  • 1.00 MHz 1/2" Dual Element Thickness Transducer - Standard Damping - Potted Side
    • Part Number : T-1049-0000
  • 5.00MHz 1/4" Dual Element Transducer - Standard Damping - Potted Side
    • Part Number : T-1029-2000
  • 5.00MHz 1/4" Dual Element Transducer - Hi Temp - Standard Damping - Potted Top
    • Part Number : T-0429-2000
  • 7.50MHz 3/16" Dual Element Thickness Transducer - Standard Damping - Potted Side
    • Part Number : T-1019-3000
  • 7.50MHz 1/4" Dual Element Transducers - High Resolution - Standard Damping - Potted Side
    • Part Number : T-1029-3300
  • 5.00MHz 1/4" Dual Element Transducer - Highly Damped - ThruPaint - Potted Side
    • Part Number : T-1029-2700
  • 3.50 MHz 1/2" Dual Element Thickness Transducer - Armor Cable–Hi Damped - ThruPaint - Lemo Side
    • Part Number : T-904-9709
