Single Element Contact Transducers

Single-Element-Contact-small

Single Element Contact Transducers are the common 0° transducers and are ideal for inspecting large, simple geometry materials.

  • Summary

    • Summary

    • Single Element Contact transducers are longitudinal wave transducers that are designed to be used in direct contact with the part or component being inspected.

      They are available in multiple configurations, including high wear, fingertip for difficult-to-access areas and membrane in a variety of frequencies.

  • Technical Information
    • Technical Specification
      Single Element Contact Transducers
      Connector Type Suitable for
      Part Number Probe Diameter Element Type Probe Characteristic
      Damping
      Microdot
      BNC
      Top
      Side
      PZX
      PMX
      PMX4
      CMX
      FX71
      FX81

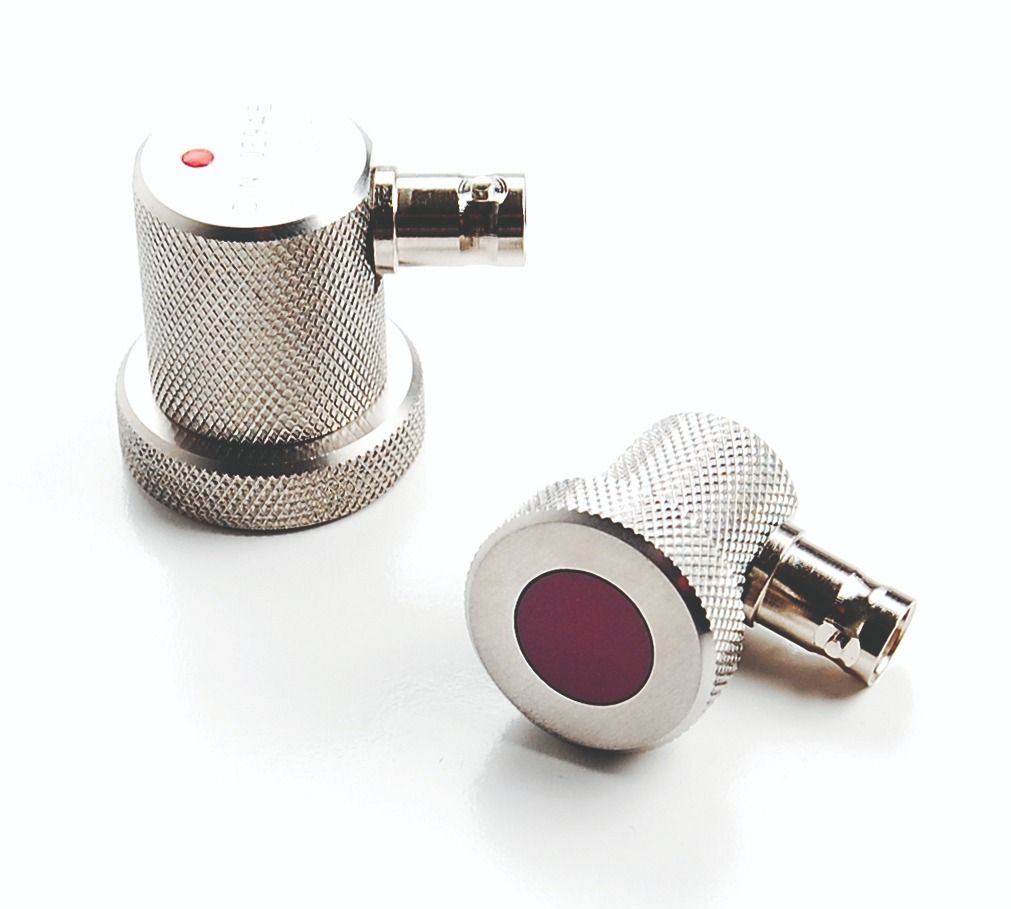

      1.00 MHz Single Element Contact Transducers - High Wear
      T-8040-0868
      1/2"
      Single Element Contact
      High Wear
      P
      T-8060-0868
      3/4"
      Single Element Contact
      High Wear
      P
      T-8070-0868
      1"
      Single Element Contact
      High Wear
      P
      2.25 MHz Single Element Contact Transducers - High Wear
      T-8040-1878
      1/2"
      Single Element Contact
      High Wear
      S
      T-8060-1878
      3/4"
      Single Element Contact
      High Wear
      S
      T-8070-1878
      1"
      Single Element Contact
      High Wear
      S
      5.00 MHz Single Element Contact Transducers - High Wear
      T-8040-2878
      1/2"
      Single Element Contact
      High Wear
      S
      T-8060-2878
      3/4"
      Single Element Contact
      High Wear
      S
      T-8070-2878
      1"
      Single Element Contact
      High Wear
      S
      Connector Type Suitable for
      Part Number Probe Diameter Element Type Probe Characteristic
      Damping
      Microdot
      BNC
      Top
      Side
      PZX
      PMX
      PMX4
      CMX
      FX71
      FX81

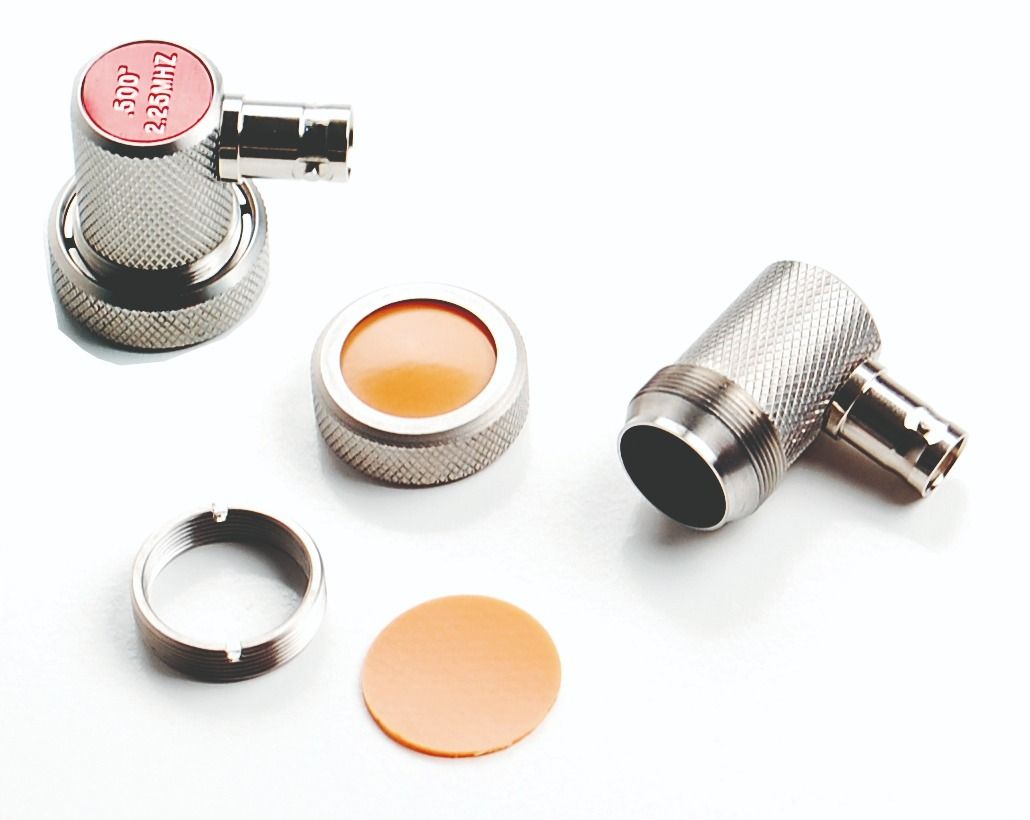

      1.00 MHz Single Element Contact Transducers - Membrane
      T-8041-0868
      1/2"
      Single Element Contact
      Membrane
      P
      T-8071-0868
      1"
      Single Element Contact
      Membrane
      P
      2.25 MHz Single Element Contact Transducers - Membrane
      T-8041-1878
      1/2"
      Single Element Contact
      Membrane
      G
      T-8071-1878
      1"
      Single Element Contact
      Membrane
      G
      3.50 MHz Single Element Contact Transducers - Membrane
      T-8041-9868
      1/2"
      Single Element Contact
      Membrane
      P
      T-8071-9868
      1"
      Single Element Contact
      Membrane
      P
      5.00 MHz Single Element Contact Transducers - Membrane
      T-8041-2878
      1/2"
      Single Element Contact
      Membrane
      G
      T-8071-2878
      1"
      Single Element Contact
      Membrane
      G
      Connector Type Suitable for
      Part Number Probe Diameter Element Type Probe Characteristic
      Damping
      Microdot
      BNC
      Top
      Side
      PZX
      PMX
      PMX4
      CMX
      FX71
      FX81

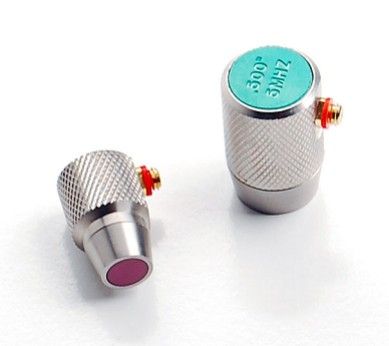

      1.00 MHz Single Element Contact Transducers - Finger Tip
      T-4043-0865
      1/2"
      Single Element Contact
      Finger Tip
      P
      T-5043-0865
      1/2"
      Single Element Contact
      Finger Tip
      P
      2.25 MHz Single Element Contact Transducer - Finger Tip
      Materials used: Common metals, plastics
      T-4023-1855
      1/4"
      Single Element Contact
      Finger Tip
      R
      T-5023-1855
      1/4"
      Single Element Contact
      Finger Tip
      R
      T-4023-1845
      1/4"
      Single Element Contact
      Finger Tip
      G
      T-5023-1845
      1/4"
      Single Element Contact
      Finger Tip
      G
      T-4033-1855
      3/8”
      Single Element Contact
      Finger Tip
      R
      T-5033-1855
      3/8”
      Single Element Contact
      Finger Tip
      R
      T-4033-1845
      3/8”
      Single Element Contact
      Finger Tip
      G
      T-5033-1845
      3/8”
      Single Element Contact
      Finger Tip
      G
      T-4043-1855
      1/2"
      Single Element Contact
      Finger Tip
      R
      T-5043-1855
      1/2"
      Single Element Contact
      Finger Tip
      R
      T-4043-1845
      1/2"
      Single Element Contact
      Finger Tip
      G
      T-5043-1845
      1/2"
      Single Element Contact
      Finger Tip
      G
      3.50 MHz Single Element Contact Transducers - Finger Tip
      Materials used: Common metals, plastics
      T-4023-9865
      1/4"
      Single Element Contact
      Finger Tip
      P
      T-5023-9865
      1/4"
      Single Element Contact
      Finger Tip
      P
      T-4033-9865
      3/8”
      Single Element Contact
      Finger Tip
      P
      T-5033-9865
      3/8”
      Single Element Contact
      Finger Tip
      P
      T-4043-9865
      1/2"
      Single Element Contact
      Finger Tip
      P
      T-5043-9865
      1/2"
      Single Element Contact
      Finger Tip
      P
      5.00 MHz Single Element Contact Transducer - Finger Tip
      T-4023-2855
      1/4"
      Single Element Contact
      Finger Tip
      R
      T-5023-2855
      1/4"
      Single Element Contact
      Finger Tip
      R
      T-4023-2845
      1/4"
      Single Element Contact
      Finger Tip
      G
      T-5023-2845
      1/4"
      Single Element Contact
      Finger Tip
      G
      T-4033-2855
      3/8”
      Single Element Contact
      Finger Tip
      R
      T-5033-2855
      3/8”
      Single Element Contact
      Finger Tip
      R
      T-4033-2845
      3/8”
      Single Element Contact
      Finger Tip
      G
      T-5033-2845
      3/8”
      Single Element Contact
      Finger Tip
      G
      T-4043-2855
      1/2"
      Single Element Contact
      Finger Tip
      R
      T-5043-2855
      1/2"
      Single Element Contact
      Finger Tip
      R
      T-4043-2845
      1/2"
      Single Element Contact
      Finger Tip
      G
      T-5043-2845
      1/2"
      Single Element Contact
      Finger Tip
      G
      10.00 MHz Single Element Contact Transducers - Finger Tip
      Materials used: Common metals, plastics
      T-4023-4855
      1/4"
      Single Element Contact
      Finger Tip
      R
      T-5023-4855
      1/4"
      Single Element Contact
      Finger Tip
      R
      T-4023-4845
      1/4"
      Single Element Contact
      Finger Tip
      G
      T-5023-4845
      1/4"
      Single Element Contact
      Finger Tip
      G
      T-4033-4855
      3/8”
      Single Element Contact
      Finger Tip
      R
      T-5033-4855
      3/8”
      Single Element Contact
      Finger Tip
      R
      T-4033-4845
      3/8”
      Single Element Contact
      Finger Tip
      G
      T-5033-4845
      3/8”
      Single Element Contact
      Finger Tip
      G
      T-4043-4855
      1/2"
      Single Element Contact
      Finger Tip
      R
      T-5043-4855
      1/2"
      Single Element Contact
      Finger Tip
      R
      T-4043-4845
      1/2"
      Single Element Contact
      Finger Tip
      G
      T-5043-4845
      1/2"
      Single Element Contact
      Finger Tip
      G
      Connector Type Suitable for
      Part Number Probe Diameter Element Type Probe Characteristic
      Damping
      Microdot
      BNC
      Top
      Side
      PZX
      PMX
      PMX4
      CMX
      FX71
      FX81
      5.00 MHz Single Element Contact Transducer - Finger Tip Slim
      Materials used: Common metals, plastics
      T-4903-2875
      1/8”
      Single Element Contact
      Finger Tip Slim
      HD
      T-5903-2875
      1/8”
      Single Element Contact
      Finger Tip Slim
      HD
      10.00 MHz Single Element Contact Transducer - Finger Tip Slim
      T-4903-4875
      1/8”
      Single Element Contact
      Finger Tip Slim
      HD
      T-5903-4875
      1/8”
      Single Element Contact
      Finger Tip Slim
      HD
      HG - High Gain Damping Transducers
      H - Highly Damped Transducer
      S - Standard Undamped Transducer
      R - Resolution Transducer
  • Part Numbers
    • Part Numbers
      Single Element Contact Transducers
      • 1.00 MHz 1/2" Single Element Contact Transducers - High Wear - BNC Side
        • Part Number : T-8040-0868
      • 1.00MHz 3/4" Single Element Contact Transducers - High Wear - BNC Side
        • Part Number : T-8060-0868
      • 1.00MHz 1" Single Element Contact Transducers - High Wear - BNC Side
        • Part Number : T-8070-0868
      • 2.25 MHz 1/2" Single Element Contact Transducers - High Wear - BNC Side
        • Part Number : T-8040-1878
      • 2.25 MHz 3/4" Single Element Contact Transducers - High Wear - BNC Side
        • Part Number : T-8060-1878
      • 2.25 MHz 1" Single Element Contact Transducers - High Wear - BNC Side
        • Part Number : T-8070-1878
      • 5.00 MHz 1/2" Single Element Contact Transducers - High Wear - BNC Side
        • Part Number : T-8040-2878
      • 5.00MHz 3/4" Single Element Contact Transducers - High Wear - BNC Side
        • Part Number : T-8060-2878
      • 5.00MHz 1" Single Element Contact Transducers - High Wear - BNC Side
        • Part Number : T-8070-2878
      • 1.00 MHz 1/2" Single Element Contact Transducers - Membrane - Composite - BNC Side
        • Part Number : T-8041-0868
      • 1.00MHz 1" Single Element Contact Transducers - Membrane - Composite - BNC Side
        • Part Number : T-8071-0868
      • 2.25 MHz 1/2" Single Element Contact Transducers - Membrane - High Gain - BNC Side
        • Part Number : T-8041-1878
      • 2.25 MHz 1" Single Element Contact Transducers - Membrane - High Gain - BNC Side
        • Part Number : T-8071-1878
      • 3.50 MHz 1/2" Single Element Contact Transducers - Membrane - Composite - BNC Side
        • Part Number : T-8041-9868
      • 3.50 MHz 1" Single Element Contact Transducers - Membrane - Composite - BNC Side
        • Part Number : T-8071-9868
      • 5.00 MHz 1/2" Single Element Contact Transducers - Membrane - High Gain - BNC Side
        • Part Number : T-8041-2878
      • 5.00 MHz 1" Single Element Contact Transducers - Membrane - High Gain - BNC Side
        • Part Number : T-8071-2878
      • 5.00MHz 3/8” Single Element Contact Transducers - Finger Tip - Resolution - Microdot Top
        • Part Number : T-5033-2855
      • 5.00MHz 3/8” Single Element Contact Transducers - Finger Tip - High Gain - Microdot Top
        • Part Number : T-5033-2845
      • 10.00 MHz 1/4" Single Element Contact Transducer - Finger Tip - Resolution - Microdot Side
        • Part Number : T-4023-4855
      • 10.00MHz 1/4" Single Element Contact Non-Magnetic Transducer - Finger Tip - Resolution - Microdot Top
        • Part Number : T-5023-4855
      • 5.00 MHz 1/2" Single Element Contact Transducers - Finger Tip - High Gain - Microdot Top
        • Part Number : T-5043-2845
      • 5.00 MHz 1/2" Single Element Contact Transducers - Finger Tip - High Gain - Microdot Side
        • Part Number : T-4043-2845
      • 5.00MHz 1/2" Single Element Contact Non-Magnetic Transducer - Finger Tip - Resolution - Microdot Top
        • Part Number : T-5043-2855
      • 5.00 MHz 1/2" Single Element Contact Non-Magnetic Transducer - Finger Tip - Resolution - Microdot Side
        • Part Number : T-4043-2855
      • 5.00 MHz 3/8” Single Element Contact Transducers - Finger Tip - High Gain - Microdot Side
        • Part Number : T-4033-2845
      • 5.00 MHz 3/8” Single Element Contact Transducers - Finger Tip - Resolution - Microdot Side
        • Part Number : T-4033-2855
      • 5.00 MHz 1/4" Single Element Contact Transducers - Finger Tip - High Gain - Microdot Top
        • Part Number : T-5023-2845
      • 3.50 MHz 1/2" Single Element Contact Transducers - Finger Tip - Composite - Microdot Top
        • Part Number : T-5043-9865
      • 3.50 MHz 1/2" Single Element Contact Transducers - Finger Tip - Composite - Microdot Side
        • Part Number : T-4043-9865
      • 3.50 MHz 3/8” Single Element Contact Transducers - Finger Tip - Composite - Microdot Top
        • Part Number : T-5033-9865
      • 3.50 MHz 3/8" Single Element Contact Transducers - Finger Tip - Composite - Microdot Side
        • Part Number : T-4033-9865
      • 3.50 MHz 1/4" Single Element Contact Transducers - Finger Tip - Composite - Microdot Top
        • Part Number : T-5023-9865
      • 3.50 MHz 1/4" Single Element Contact Transducers - Finger Tip - Composite - Microdot Side
        • Part Number : T-4023-9865
      • 2.25 MHz 1/2" Single Element Contact Transducers - Finger Tip - High Gain - Microdot Top
        • Part Number : T-5043-1845
      • 2.25 MHz 1/2" Single Element Contact Transducers - Finger Tip - High Gain - Microdot Side
        • Part Number : T-4043-1845
      • 2.25MHz 1/2" Single Element Contact Non-Magnetic Transducer - Finger Tip - Resolution - Microdot Top
        • Part Number : T-5043-1855
      • 2.25MHz 1/2" Single Element Contact Non-Magnetic Transducer - Finger Tip - Resolution - Microdot Side
        • Part Number : T-4043-1855
      • 1.00 MHz 1/2" Single Element Contact Transducers - Finger Tip - Composite - Microdot Side
        • Part Number : T-4043-0865
      • 1.00MHz 1/2" Single Element Contact Transducers - Finger Tip - Composite - Microdot Side
        • Part Number : T-5043-0865
      • 2.25MHz 1/4" Single Element Contact Transducer - Finger Tip - Resolution - Microdot Side
        • Part Number : T-4023-1855
      • 2.25 MHz 1/4" Single Element Contact Non-Magnetic Transducer - Finger Tip - Resolution - Microdot Top
        • Part Number : T-5023-1855
      • 2.25 MHz 1/4" Single Element Contact Transducers - Finger Tip - High Gain - Microdot Side
        • Part Number : T-4023-1845
      • 2.25 MHz 1/4" Single Element Contact Transducers - Finger Tip - High Gain - Microdot Top
        • Part Number : T-5023-1845
      • 5.00 MHz 1/4" Single Element Contact Non-Magnetic Transducer - Finger Tip - Resolution - Microdot Side
        • Part Number : T-4023-2855
      • 2.25 MHz 3/8” Single Element Contact Transducers - Finger Tip - Resolution - Microdot Side
        • Part Number : T-4033-1855
      • 5.00 MHz 1/4" Single Element Contact Transducers - Finger Tip - High Gain - Microdot Side
        • Part Number : T-4023-2845
      • 2.25 MHz 3/8” Single Element Contact Transducers - Finger Tip - Resolution - Microdot Top
        • Part Number : T-5033-1855
      • 2.25 MHz 3/8” Single Element Contact Transducers - Finger Tip - High Gain - Microdot Side
        • Part Number : T-4033-1845
      • 2.25 MHz 3/8” Single Element Contact Transducers - Finger Tip - High Gain - Microdot Top
        • Part Number : T-5033-1845
      • 5.00MHz 1/4" Single Element Contact Non-Magnetic Transducers - Finger Tip - Resolution - Microdot Top
        • Part Number : T-5023-2855
      • 10.00 MHz 1/4" Single Element Contact Transducers - Finger Tip - High Gain - Microdot Side
        • Part Number : T-4023-4845
      • 10.00 MHz 3/8" Single Element Contact Transducers - Finger Tip - Resolution - Microdot Side
        • Part Number : T-4033-4855
      • 10.00 MHz 3/8" Single Element Contact Transducers - Finger Tip - High Gain - Microdot Side
        • Part Number : T-4033-4845
      • 10.00 MHz 1/2" Single Element Contact Transducers - Finger Tip - Resolution - Microdot Side
        • Part Number : T-4043-4855
      • 10.00 MHz 1/2" Single Element Contact Transducers - Finger Tip - High Gain - Microdot Side
        • Part Number : T-4043-4845
      • 10.00 MHz 1/4" Single Element Contact Transducers - Finger Tip - High Gain - Microdot Top
        • Part Number : T-5023-4845
      • 10.00 MHz 3/8" Single Element Contact Transducers - Finger Tip - Resolution - Microdot Top
        • Part Number : T-5033-4855
      • 10.00 MHz 3/8" Single Element Contact Transducers - Finger Tip - High Gain - Microdot Top
        • Part Number : T-5033-4845
      • 10.00 MHz 1/2" Single Element Contact Transducers - Finger Tip - Resolution - Microdot Top
        • Part Number : T-5043-4855
      • 10.00 MHz 1/2" Single Element Contact Transducers - Finger Tip - High Gain - Microdot Top
        • Part Number : T-5043-4845
      • 5.00 MHz 1/8" Single Element Contact Non-Magnetic Transducer - Finger Tip Slim - Highly - Microdot Top
        • Part Number : T-5903-2875
      • 5.00 MHz 1/8” Single Element Contact Non-Magnetic Transducer - Finger Tip Slim - Highly - Microdot Side
        • Part Number : T-4903-2875
      • 10.00MHz 1/8" Single Element Contact Non-Magnetic Transducer - Finger Tip Slim - Highly - Microdot Top
        • Part Number : T-5903-4875
      • 10.00 MHz 1/8" Single Element Contact Non-Magnetic Transducer - Finger Tip Slim - Highly - Microdot Side
        • Part Number : T-4903-4875
  • Accessories
    • Accessories
      Single Element Contact Transducers
      • Part NumberV-000-0001
      • Part NumberV-000-0003
      • Part NumberV-000-0004
      • Part NumberV-000-0002
      • Part NumberN-104-0070
      • Part NumberN-104-0000
      • Part NumberN-104-0020
      • Part NumberTL-24030-5
      • Part NumberN-204-0000
      • Part NumberN-204-0020
      • Part NumberN-104-0021
      • Part NumberTL-24031
      • Part NumberTL-24032
      • Part NumberX-132-0000
      • Part NumberX-532-0000
      • Part NumberX-533-0000
      • Part NumberX-152-0000
      • Part NumberX-752-0000
      • Part NumberF-000-7103
      • Part NumberF-000-7102
      • Part NumberX-633-0000
      • Part NumberTZ-24035
  • Home
  • Single Element Contact Transducers

Single Element Contact Transducers

Single-Element-Contact-small

Single Element Contact Transducers are the common 0° transducers and are ideal for inspecting large, simple geometry materials.

Summary

main product photo

Single Element Contact Transducers

Single Element Contact transducers are longitudinal wave transducers that are designed to be used in direct contact with the part or component being inspected.

They are available in multiple configurations, including high wear, fingertip for difficult-to-access areas and membrane in a variety of frequencies.

Technical Specification
Single Element Contact Transducers
Connector Type Suitable for
Part Number Probe Diameter Element Type Probe Characteristic
Damping
Microdot
BNC
Top
Side
PZX
PMX
PMX4
CMX
FX71
FX81
1.00 MHz Single Element Contact Transducers - High Wear
T-8040-0868
1/2"
Single Element Contact
High Wear
P
T-8060-0868
3/4"
Single Element Contact
High Wear
P
T-8070-0868
1"
Single Element Contact
High Wear
P
2.25 MHz Single Element Contact Transducers - High Wear
T-8040-1878
1/2"
Single Element Contact
High Wear
S
T-8060-1878
3/4"
Single Element Contact
High Wear
S
T-8070-1878
1"
Single Element Contact
High Wear
S
5.00 MHz Single Element Contact Transducers - High Wear
T-8040-2878
1/2"
Single Element Contact
High Wear
S
T-8060-2878
3/4"
Single Element Contact
High Wear
S
T-8070-2878
1"
Single Element Contact
High Wear
S
Connector Type Suitable for
Part Number Probe Diameter Element Type Probe Characteristic
Damping
Microdot
BNC
Top
Side
PZX
PMX
PMX4
CMX
FX71
FX81
1.00 MHz Single Element Contact Transducers - Membrane
T-8041-0868
1/2"
Single Element Contact
Membrane
P
T-8071-0868
1"
Single Element Contact
Membrane
P
2.25 MHz Single Element Contact Transducers - Membrane
T-8041-1878
1/2"
Single Element Contact
Membrane
G
T-8071-1878
1"
Single Element Contact
Membrane
G
3.50 MHz Single Element Contact Transducers - Membrane
T-8041-9868
1/2"
Single Element Contact
Membrane
P
T-8071-9868
1"
Single Element Contact
Membrane
P
5.00 MHz Single Element Contact Transducers - Membrane
T-8041-2878
1/2"
Single Element Contact
Membrane
G
T-8071-2878
1"
Single Element Contact
Membrane
G
Connector Type Suitable for
Part Number Probe Diameter Element Type Probe Characteristic
Damping
Microdot
BNC
Top
Side
PZX
PMX
PMX4
CMX
FX71
FX81
1.00 MHz Single Element Contact Transducers - Finger Tip
T-4043-0865
1/2"
Single Element Contact
Finger Tip
P
T-5043-0865
1/2"
Single Element Contact
Finger Tip
P
2.25 MHz Single Element Contact Transducer - Finger Tip
Materials used: Common metals, plastics
T-4023-1855
1/4"
Single Element Contact
Finger Tip
R
T-5023-1855
1/4"
Single Element Contact
Finger Tip
R
T-4023-1845
1/4"
Single Element Contact
Finger Tip
G
T-5023-1845
1/4"
Single Element Contact
Finger Tip
G
T-4033-1855
3/8”
Single Element Contact
Finger Tip
R
T-5033-1855
3/8”
Single Element Contact
Finger Tip
R
T-4033-1845
3/8”
Single Element Contact
Finger Tip
G
T-5033-1845
3/8”
Single Element Contact
Finger Tip
G
T-4043-1855
1/2"
Single Element Contact
Finger Tip
R
T-5043-1855
1/2"
Single Element Contact
Finger Tip
R
T-4043-1845
1/2"
Single Element Contact
Finger Tip
G
T-5043-1845
1/2"
Single Element Contact
Finger Tip
G
3.50 MHz Single Element Contact Transducers - Finger Tip
Materials used: Common metals, plastics
T-4023-9865
1/4"
Single Element Contact
Finger Tip
P
T-5023-9865
1/4"
Single Element Contact
Finger Tip
P
T-4033-9865
3/8”
Single Element Contact
Finger Tip
P
T-5033-9865
3/8”
Single Element Contact
Finger Tip
P
T-4043-9865
1/2"
Single Element Contact
Finger Tip
P
T-5043-9865
1/2"
Single Element Contact
Finger Tip
P
5.00 MHz Single Element Contact Transducer - Finger Tip
T-4023-2855
1/4"
Single Element Contact
Finger Tip
R
T-5023-2855
1/4"
Single Element Contact
Finger Tip
R
T-4023-2845
1/4"
Single Element Contact
Finger Tip
G
T-5023-2845
1/4"
Single Element Contact
Finger Tip
G
T-4033-2855
3/8”
Single Element Contact
Finger Tip
R
T-5033-2855
3/8”
Single Element Contact
Finger Tip
R
T-4033-2845
3/8”
Single Element Contact
Finger Tip
G
T-5033-2845
3/8”
Single Element Contact
Finger Tip
G
T-4043-2855
1/2"
Single Element Contact
Finger Tip
R
T-5043-2855
1/2"
Single Element Contact
Finger Tip
R
T-4043-2845
1/2"
Single Element Contact
Finger Tip
G
T-5043-2845
1/2"
Single Element Contact
Finger Tip
G
10.00 MHz Single Element Contact Transducers - Finger Tip
Materials used: Common metals, plastics
T-4023-4855
1/4"
Single Element Contact
Finger Tip
R
T-5023-4855
1/4"
Single Element Contact
Finger Tip
R
T-4023-4845
1/4"
Single Element Contact
Finger Tip
G
T-5023-4845
1/4"
Single Element Contact
Finger Tip
G
T-4033-4855
3/8”
Single Element Contact
Finger Tip
R
T-5033-4855
3/8”
Single Element Contact
Finger Tip
R
T-4033-4845
3/8”
Single Element Contact
Finger Tip
G
T-5033-4845
3/8”
Single Element Contact
Finger Tip
G
T-4043-4855
1/2"
Single Element Contact
Finger Tip
R
T-5043-4855
1/2"
Single Element Contact
Finger Tip
R
T-4043-4845
1/2"
Single Element Contact
Finger Tip
G
T-5043-4845
1/2"
Single Element Contact
Finger Tip
G
Connector Type Suitable for
Part Number Probe Diameter Element Type Probe Characteristic
Damping
Microdot
BNC
Top
Side
PZX
PMX
PMX4
CMX
FX71
FX81
5.00 MHz Single Element Contact Transducer - Finger Tip Slim
Materials used: Common metals, plastics
T-4903-2875
1/8”
Single Element Contact
Finger Tip Slim
HD
T-5903-2875
1/8”
Single Element Contact
Finger Tip Slim
HD
10.00 MHz Single Element Contact Transducer - Finger Tip Slim
T-4903-4875
1/8”
Single Element Contact
Finger Tip Slim
HD
T-5903-4875
1/8”
Single Element Contact
Finger Tip Slim
HD
HG - High Gain Damping Transducers
H - Highly Damped Transducer
S - Standard Undamped Transducer
R - Resolution Transducer
Part Numbers
Single Element Contact Transducers
  • 1.00 MHz 1/2" Single Element Contact Transducers - High Wear - BNC Side
    • Part Number : T-8040-0868
  • 1.00MHz 3/4" Single Element Contact Transducers - High Wear - BNC Side
    • Part Number : T-8060-0868
  • 1.00MHz 1" Single Element Contact Transducers - High Wear - BNC Side
    • Part Number : T-8070-0868
  • 2.25 MHz 1/2" Single Element Contact Transducers - High Wear - BNC Side
    • Part Number : T-8040-1878
  • 2.25 MHz 3/4" Single Element Contact Transducers - High Wear - BNC Side
    • Part Number : T-8060-1878
  • 2.25 MHz 1" Single Element Contact Transducers - High Wear - BNC Side
    • Part Number : T-8070-1878
  • 5.00 MHz 1/2" Single Element Contact Transducers - High Wear - BNC Side
    • Part Number : T-8040-2878
  • 5.00MHz 3/4" Single Element Contact Transducers - High Wear - BNC Side
    • Part Number : T-8060-2878
  • 5.00MHz 1" Single Element Contact Transducers - High Wear - BNC Side
    • Part Number : T-8070-2878
  • 1.00 MHz 1/2" Single Element Contact Transducers - Membrane - Composite - BNC Side
    • Part Number : T-8041-0868
  • 1.00MHz 1" Single Element Contact Transducers - Membrane - Composite - BNC Side
    • Part Number : T-8071-0868
  • 2.25 MHz 1/2" Single Element Contact Transducers - Membrane - High Gain - BNC Side
    • Part Number : T-8041-1878
  • 2.25 MHz 1" Single Element Contact Transducers - Membrane - High Gain - BNC Side
    • Part Number : T-8071-1878
  • 3.50 MHz 1/2" Single Element Contact Transducers - Membrane - Composite - BNC Side
    • Part Number : T-8041-9868
  • 3.50 MHz 1" Single Element Contact Transducers - Membrane - Composite - BNC Side
    • Part Number : T-8071-9868
  • 5.00 MHz 1/2" Single Element Contact Transducers - Membrane - High Gain - BNC Side
    • Part Number : T-8041-2878
  • 5.00 MHz 1" Single Element Contact Transducers - Membrane - High Gain - BNC Side
    • Part Number : T-8071-2878
  • 5.00MHz 3/8” Single Element Contact Transducers - Finger Tip - Resolution - Microdot Top
    • Part Number : T-5033-2855
  • 5.00MHz 3/8” Single Element Contact Transducers - Finger Tip - High Gain - Microdot Top
    • Part Number : T-5033-2845
  • 10.00 MHz 1/4" Single Element Contact Transducer - Finger Tip - Resolution - Microdot Side
    • Part Number : T-4023-4855
  • 10.00MHz 1/4" Single Element Contact Non-Magnetic Transducer - Finger Tip - Resolution - Microdot Top
    • Part Number : T-5023-4855
  • 5.00 MHz 1/2" Single Element Contact Transducers - Finger Tip - High Gain - Microdot Top
    • Part Number : T-5043-2845
  • 5.00 MHz 1/2" Single Element Contact Transducers - Finger Tip - High Gain - Microdot Side
    • Part Number : T-4043-2845
  • 5.00MHz 1/2" Single Element Contact Non-Magnetic Transducer - Finger Tip - Resolution - Microdot Top
    • Part Number : T-5043-2855
  • 5.00 MHz 1/2" Single Element Contact Non-Magnetic Transducer - Finger Tip - Resolution - Microdot Side
    • Part Number : T-4043-2855
  • 5.00 MHz 3/8” Single Element Contact Transducers - Finger Tip - High Gain - Microdot Side
    • Part Number : T-4033-2845
  • 5.00 MHz 3/8” Single Element Contact Transducers - Finger Tip - Resolution - Microdot Side
    • Part Number : T-4033-2855
  • 5.00 MHz 1/4" Single Element Contact Transducers - Finger Tip - High Gain - Microdot Top
    • Part Number : T-5023-2845
  • 3.50 MHz 1/2" Single Element Contact Transducers - Finger Tip - Composite - Microdot Top
    • Part Number : T-5043-9865
  • 3.50 MHz 1/2" Single Element Contact Transducers - Finger Tip - Composite - Microdot Side
    • Part Number : T-4043-9865
  • 3.50 MHz 3/8” Single Element Contact Transducers - Finger Tip - Composite - Microdot Top
    • Part Number : T-5033-9865
  • 3.50 MHz 3/8" Single Element Contact Transducers - Finger Tip - Composite - Microdot Side
    • Part Number : T-4033-9865
  • 3.50 MHz 1/4" Single Element Contact Transducers - Finger Tip - Composite - Microdot Top
    • Part Number : T-5023-9865
  • 3.50 MHz 1/4" Single Element Contact Transducers - Finger Tip - Composite - Microdot Side
    • Part Number : T-4023-9865
  • 2.25 MHz 1/2" Single Element Contact Transducers - Finger Tip - High Gain - Microdot Top
    • Part Number : T-5043-1845
  • 2.25 MHz 1/2" Single Element Contact Transducers - Finger Tip - High Gain - Microdot Side
    • Part Number : T-4043-1845
  • 2.25MHz 1/2" Single Element Contact Non-Magnetic Transducer - Finger Tip - Resolution - Microdot Top
    • Part Number : T-5043-1855
  • 2.25MHz 1/2" Single Element Contact Non-Magnetic Transducer - Finger Tip - Resolution - Microdot Side
    • Part Number : T-4043-1855
  • 1.00 MHz 1/2" Single Element Contact Transducers - Finger Tip - Composite - Microdot Side
    • Part Number : T-4043-0865
  • 1.00MHz 1/2" Single Element Contact Transducers - Finger Tip - Composite - Microdot Side
    • Part Number : T-5043-0865
  • 2.25MHz 1/4" Single Element Contact Transducer - Finger Tip - Resolution - Microdot Side
    • Part Number : T-4023-1855
  • 2.25 MHz 1/4" Single Element Contact Non-Magnetic Transducer - Finger Tip - Resolution - Microdot Top
    • Part Number : T-5023-1855
  • 2.25 MHz 1/4" Single Element Contact Transducers - Finger Tip - High Gain - Microdot Side
    • Part Number : T-4023-1845
  • 2.25 MHz 1/4" Single Element Contact Transducers - Finger Tip - High Gain - Microdot Top
    • Part Number : T-5023-1845
  • 5.00 MHz 1/4" Single Element Contact Non-Magnetic Transducer - Finger Tip - Resolution - Microdot Side
    • Part Number : T-4023-2855
  • 2.25 MHz 3/8” Single Element Contact Transducers - Finger Tip - Resolution - Microdot Side
    • Part Number : T-4033-1855
  • 5.00 MHz 1/4" Single Element Contact Transducers - Finger Tip - High Gain - Microdot Side
    • Part Number : T-4023-2845
  • 2.25 MHz 3/8” Single Element Contact Transducers - Finger Tip - Resolution - Microdot Top
    • Part Number : T-5033-1855
  • 2.25 MHz 3/8” Single Element Contact Transducers - Finger Tip - High Gain - Microdot Side
    • Part Number : T-4033-1845
  • 2.25 MHz 3/8” Single Element Contact Transducers - Finger Tip - High Gain - Microdot Top
    • Part Number : T-5033-1845
  • 5.00MHz 1/4" Single Element Contact Non-Magnetic Transducers - Finger Tip - Resolution - Microdot Top
    • Part Number : T-5023-2855
  • 10.00 MHz 1/4" Single Element Contact Transducers - Finger Tip - High Gain - Microdot Side
    • Part Number : T-4023-4845
  • 10.00 MHz 3/8" Single Element Contact Transducers - Finger Tip - Resolution - Microdot Side
    • Part Number : T-4033-4855
  • 10.00 MHz 3/8" Single Element Contact Transducers - Finger Tip - High Gain - Microdot Side
    • Part Number : T-4033-4845
  • 10.00 MHz 1/2" Single Element Contact Transducers - Finger Tip - Resolution - Microdot Side
    • Part Number : T-4043-4855
  • 10.00 MHz 1/2" Single Element Contact Transducers - Finger Tip - High Gain - Microdot Side
    • Part Number : T-4043-4845
  • 10.00 MHz 1/4" Single Element Contact Transducers - Finger Tip - High Gain - Microdot Top
    • Part Number : T-5023-4845
  • 10.00 MHz 3/8" Single Element Contact Transducers - Finger Tip - Resolution - Microdot Top
    • Part Number : T-5033-4855
  • 10.00 MHz 3/8" Single Element Contact Transducers - Finger Tip - High Gain - Microdot Top
    • Part Number : T-5033-4845
  • 10.00 MHz 1/2" Single Element Contact Transducers - Finger Tip - Resolution - Microdot Top
    • Part Number : T-5043-4855
  • 10.00 MHz 1/2" Single Element Contact Transducers - Finger Tip - High Gain - Microdot Top
    • Part Number : T-5043-4845
  • 5.00 MHz 1/8" Single Element Contact Non-Magnetic Transducer - Finger Tip Slim - Highly - Microdot Top
    • Part Number : T-5903-2875
  • 5.00 MHz 1/8” Single Element Contact Non-Magnetic Transducer - Finger Tip Slim - Highly - Microdot Side
    • Part Number : T-4903-2875
  • 10.00MHz 1/8" Single Element Contact Non-Magnetic Transducer - Finger Tip Slim - Highly - Microdot Top
    • Part Number : T-5903-4875
  • 10.00 MHz 1/8" Single Element Contact Non-Magnetic Transducer - Finger Tip Slim - Highly - Microdot Side
    • Part Number : T-4903-4875

Accessories
Single Element Contact Transducers
  • Part Number: V-000-0001
  • Part Number: V-000-0003
  • Part Number: V-000-0004
  • Part Number: V-000-0002
  • Part Number: N-104-0070
  • Part Number: N-104-0000
  • Part Number: N-104-0020
  • Part Number: TL-24030-5
  • Part Number: N-204-0000
  • Part Number: N-204-0020
  • Part Number: N-104-0021
  • Part Number: TL-24031
  • Part Number: TL-24032
  • Part Number: X-132-0000
  • Part Number: X-532-0000
  • Part Number: X-533-0000
  • Part Number: X-152-0000
  • Part Number: X-752-0000
  • Part Number: F-000-7103
  • Part Number: F-000-7102
  • Part Number: X-633-0000
  • Part Number: TZ-24035
