Shear Wave Standard Transducers

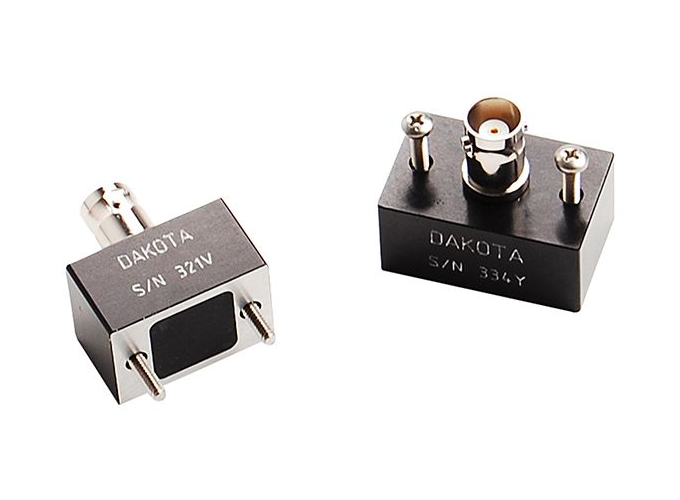

Standard-Shear-Wave-Transducer

Large single element transducers designed for use with angle beam wedges for a powerful flaw detection solution.

  • Summary

    • Summary

    • Shear Wave Standard Transducers can be fixed to wedges of different angles to produce shear wave velocity measurements.

      When used in conjunction with the ‘Trigonometry’ feature of the gauge, the transducer will produce instrumental flaw detection sound shear waves.

      Wedge Options

      A range of transducer wedges available

      Click Here
  • Technical Information
    • Technical Specification
      Shear Wave Standard Transducers
      Connector Type Suitable for measuring
      Part Number Probe Diameter Probe Characteristic
      Damping
      Microdot
      BNC
      FX71
      FX81
      2.25 MHz Shear Wave Standard Transducers
      Used for General weld inspection
      T-8044-1848
      1/2 x 1/2"
      Standard
      G
      T-8044-1858
      1/2 x 1/2"
      Standard
      R
      T-8084-1848
      1/2 x 1"
      Standard
      G
      T-8084-1858
      1/2 x 1"
      Standard
      R
      T-8054-1848
      5/8 x 5/8"
      Standard
      G
      T-8054-1858
      5/8 x 5/8"
      Standard
      R
      T-8054-1868
      5/8 x 5/8"
      Composite
      P
      T-8094-1848
      5/8 x 3/4"
      Standard
      G
      T-8094-1858
      5/8 x 3/4"
      Standard
      R
      T-8094-1868
      5/8 x 3/4"
      Composite
      P
      T-8064-1848
      3/4 x 3/4"
      Standard
      G
      T-8064-1858
      3/4 x 3/4"
      Standard
      R
      5.00 MHz Shear Wave Standard Transducers
      Used for General weld inspection
      T-8044-2848
      1/2 x 1/2"
      Standard
      G
      T-8044-2858
      1/2 x 1/2"
      Standard
      R
      T-8054-2848
      5/8 x 5/8"
      Standard
      G
      T-8054-2858
      5/8 x 5/8"
      Standard
      R
      T-8054-2868
      5/8 x 5/8"
      Composite
      P
      T-8094-2868
      5/8 x 3/4"
      Composite
      P
      P - Composite Transducer
      G - High Gain Damping Transducers
      R - Resolution Transducer
  • Part Numbers
    • Part Numbers
      Shear Wave Standard Transducers
      • 2.25 MHz 1/2 x 1/2" Shear Wave Standard Transducers - Standard - High Gain - BNC
        • Part Number : T-8044-1848
      • 2.25 MHz 1/2 x 1/2" Shear Wave Standard Transducers - Standard - Resolution - BNC
        • Part Number : T-8044-1858
      • 2.25 MHz 1/2 x 1" Shear Wave Standard Transducers - Standard - High Gain - BNC
        • Part Number : T-8084-1848
      • 2.25 MHz 1/2 x 1" Shear Wave Standard Transducers - Standard - Resolution - BNC
        • Part Number : T-8084-1858
      • 2.25 MHz 5/8 x 5/8" Shear Wave Standard Transducers - Standard - High Gain - BNC
        • Part Number : T-8054-1848
      • 2.25 MHz 5/8 x 5/8" Shear Wave Standard Transducers - Standard - Resolution - BNC
        • Part Number : T-8054-1858
      • 2.25 MHz 5/8 x 5/8" Shear Wave Standard Transducers - Standard - Composite - BNC
        • Part Number : T-8054-1868
      • 2.25 MHz 5/8 x 3/4" Shear Wave Standard Transducers - Standard - High Gain - BNC
        • Part Number : T-8094-1848
      • 2.25 MHz 5/8 x 3/4" Shear Wave Standard Transducers - Standard - Composite - BNC
        • Part Number : T-8094-1868
      • 2.25 MHz 5/8 x 3/4" Shear Wave Standard Transducers - Standard - Resolution - BNC
        • Part Number : T-8094-1858
      • 2.25 MHz 3/4 x 3/4" Shear Wave Standard Transducers - Standard - High Gain - BNC
        • Part Number : T-8064-1848
      • 2.25 MHz 3/4 x 3/4" Shear Wave Standard Transducers - Standard - Resolution - BNC
        • Part Number : T-8064-1858
      • 5.00 MHz 5/8 x 5/8" Shear Wave Standard Transducers - Standard - High Gain - BNC
        • Part Number : T-8054-2848
      • 5.00 MHz 5/8 x 5/8" Shear Wave Standard Transducers - Standard - Resolution - BNC
        • Part Number : T-8054-2858
      • 5.00 MHz 5/8 x 5/8" Shear Wave Standard Transducers - Standard - Composite - BNC
        • Part Number : T-8054-2868
      • 5.00 MHz 5/8 x 3/4" Shear Wave Standard Transducers - Standard - Composite - BNC
        • Part Number : T-8094-2868
      • 5.00 MHz 1/2 x 1/2" Shear Wave Standard Transducers - Standard - High Gain - BNC
        • Part Number : T-8044-2848
      • 5.00 MHz 1/2 x 1/2" Shear Wave Standard Transducers - Standard - Resolution - BNC
        • Part Number : T-8044-2858
  • Accessories
    • Accessories
      Shear Wave Standard Transducers
      • Part NumberV-000-0001
      • Part NumberV-000-0003
      • Part NumberV-000-0004
      • Part NumberV-000-0002
      • Part NumberN-104-0070
      • Part NumberN-104-0000
      • Part NumberN-104-0020
      • Part NumberTL-24030-5
      • Part NumberN-204-0000
      • Part NumberN-204-0020
      • Part NumberN-104-0021
      • Part NumberTL-24031
      • Part NumberTL-24032
      • Part NumberX-132-0000
      • Part NumberX-533-0000
      • Part NumberX-152-0000
      • Part NumberX-752-0000
      • Part NumberF-000-7103
      • Part NumberF-000-7102
      • Part NumberX-633-0000
      • Part NumberTZ-24035
  • Home
  • Shear Wave Standard Transducers

Shear Wave Standard Transducers

Standard-Shear-Wave-Transducer

Large single element transducers designed for use with angle beam wedges for a powerful flaw detection solution.

Summary

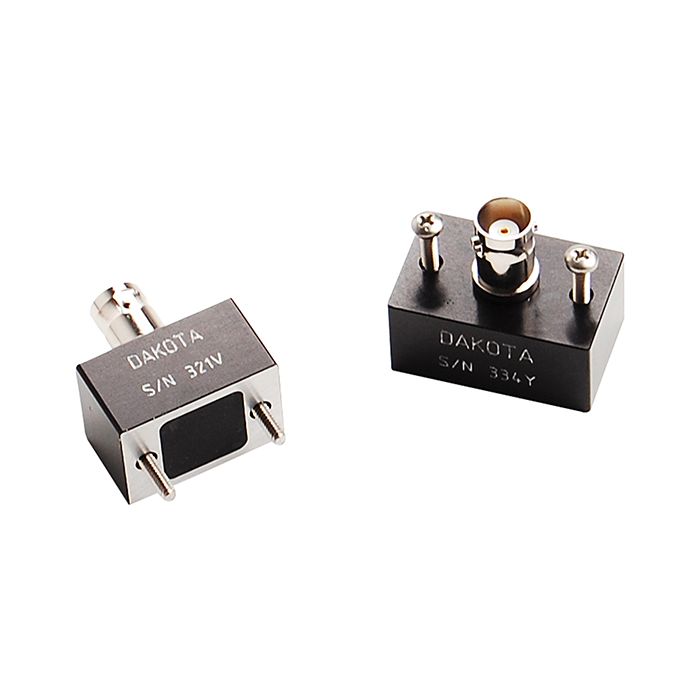

main product photo
