Shear Wave Quick Change Transducers

Shear-Wave-Quick-Change
Shear-Wave-Quick-Change-2

Shear Wave Quick Change Transducers are single element transducers with a threaded tip allowing angle beam wedges to be changed with minimum delay.


  • Summary

    • Summary

    • Shear Wave Quick Change Transducers can be used when different frequencies are required using the same wedge, or where different angles are required using the same frequency transducer.

      These transducers are ideal for inspecting curved surfaces and hard to reach areas.

      Shear Wave Quick Change Transducers can be fixed to wedges of different angles to produce shear wave measurements.

      When used in conjunction with the ‘Trigonometry’ feature of the gauge, the transducer will produce instrumental flaw detection sound shear waves.

      Wedge Options

      A range of transducer wedges available

      Click Here
  • Technical Information
    • Technical Specification
      Shear Wave Quick Change Transducers
      Connector Type Suitable for
      Part Number Probe Diameter Probe Characteristic
      Damping
      Microdot
      FX71
      FX81
      2.25MHz Shear Wave - Quick Change Transducers
      Used for General weld inspection
      T-5025-1845
      1/4"
      Standard
      G
      T-5025-1855
      1/4"
      Standard
      R
      T-5025-1865
      1/4"
      Composite
      G
      T-5035-1845
      3/8”
      Standard
      G
      T-5035-1855
      3/8”
      Standard
      R
      T-5035-1865
      3/8”
      Composite
      G
      T-5045-1845
      1/2"
      Standard
      G
      T-5045-1855
      1/2"
      Standard
      R
      T-5045-1865
      1/2"
      Composite
      P
      3.50 MHz Shear Wave - Quick Change Transducers
      Used for General weld inspection
      T-5045-9865
      1/2"
      Composite
      P
      5.00 MHz Shear Wave - Quick Change Transducers
      Used for General weld inspection
      T-5025-2845
      1/4"
      Standard
      G
      T-5025-2855
      1/4"
      Standard
      R
      T-5025-2865
      1/4"
      Composite
      G
      T-5035-2845
      3/8”
      Standard
      G
      T-5035-2855
      3/8”
      Standard
      R
      T-5035-2865
      3/8”
      Composite
      G
      T-5045-2845
      1/2"
      Standard
      G
      T-5045-2855
      1/2"
      Standard
      R
      T-5045-2865
      1/2"
      Composite
      G
      10.00 MHz Shear Wave - Quick Change Transducers
      Used for General weld inspection
      T-5025-4855
      1/4"
      Standard
      R
      T-5025-4845
      1/4"
      Standard
      G
      T-5025-4865
      1/4"
      Composite
      P
      T-5045-4845
      1/2"
      Standard
      G
      T-5045-4855
      1/2"
      Standard
      R
      S - Standard Undamped Transducer
      G - High Gain Damping Transducers
      R - Resolution Transducer
  • Part Numbers
    • Part Numbers
      Shear Wave Quick Change Transducers
      • 2.25MHz 1/4" Shear Wave - Quick Change Transducers - Standard - High Gain
        • Part Number : T-5025-1845
      • 2.25MHz 1/4" Shear Wave - Quick Change Transducers - Standard - Resolution
        • Part Number : T-5025-1855
      • 2.25MHz 1/4" Shear Wave - Quick Change Transducers - Composite - High Gain
        • Part Number : T-5025-1865
      • 2.25MHz 3/8" Shear Wave - Quick Change Transducers - Standard - High Gain
        • Part Number : T-5035-1845
      • 2.25MHz 3/8" Shear Wave - Quick Change Transducers - Standard - Resolution
        • Part Number : T-5035-1855
      • 2.25 MHz 3/8" Shear Wave - Quick Change Transducers - Composite - High Gain
        • Part Number : T-5035-1865
      • 2.25MHz 1/2" Shear Wave - Quick Change Transducers -Standard - High Gain
        • Part Number : T-5045-1845
      • 2.25MHz 1/2" Shear Wave - Quick Change Transducers - Standard - Resolution
        • Part Number : T-5045-1855
      • 2.25 MHz 1/2" Shear Wave - Quick Change Transducers - Composite
        • Part Number : T-5045-1865
      • 3.50 MHz 1/2" Shear Wave - Quick Change Transducers - Composite
        • Part Number : T-5045-9865
      • 5.00 MHz 1/4" Shear Wave - Quick Change Transducers - Standard - High Gain
        • Part Number : T-5025-2845
      • 5.00 MHz 1/4" Shear Wave - Quick Change Transducers - Resolution
        • Part Number : T-5025-2855
      • 5.00 MHz 1/4" Shear Wave - Quick Change Transducers - Composite - High Gain
        • Part Number : T-5025-2865
      • 5.00 MHz 3/8" Shear Wave - Quick Change Transducers - Composite - High Gain
        • Part Number : T-5035-2865
      • 5.00 MHz 3/8" Shear Wave - Quick Change Transducers - Standard - High Gain
        • Part Number : T-5035-2845
      • 5.00 MHz 1/2" Shear Wave - Quick Change Transducers - Standard - Resolution
        • Part Number : T-5045-2855
      • 5.00 MHz 1/2" Shear Wave - Quick Change Transducers - High Gain
        • Part Number : T-5045-2845
      • 5.00 MHz 1/2" Shear Wave - Quick Change Transducers - Composite - High Gain
        • Part Number : T-5045-2865
      • 5.00 MHz 3/8" Shear Wave - Quick Change Transducers - Standard - Resolution
        • Part Number : T-5035-2855
      • 10.00 MHz 1/4" Shear Wave - Quick Change Transducers - Standard - Resolution
        • Part Number : T-5025-4855
      • 10.00 MHz 1/4" Shear Wave - Quick Change Transducers - Standard - High Gain
        • Part Number : T-5025-4845
      • 10.00 MHz 1/4" Shear Wave - Quick Change Transducers - Composite
        • Part Number : T-5025-4865
      • 10.00 MHz 1/2" Shear Wave - Quick Change Transducers - Standard - High Gain
        • Part Number : T-5045-4845
      • 10.00 MHz 1/2" Shear Wave - Quick Change Transducers - Standard - Resolution
        • Part Number : T-5045-4855
  • Accessories
    • Accessories
      Shear Wave Quick Change Transducers
      • Part NumberV-000-0001
      • Part NumberV-000-0003
      • Part NumberV-000-0004
      • Part NumberV-000-0002
      • Part NumberN-104-0070
      • Part NumberN-104-0000
      • Part NumberN-104-0020
      • Part NumberTL-24030-5
      • Part NumberN-204-0000
      • Part NumberN-204-0020
      • Part NumberN-104-0021
      • Part NumberTL-24031
      • Part NumberTL-24032
      • Part NumberX-132-0000
      • Part NumberX-532-0000
      • Part NumberX-533-0000
      • Part NumberX-152-0000
      • Part NumberX-752-0000
      • Part NumberF-000-7103
      • Part NumberF-000-7102
      • Part NumberX-633-0000
      • Part NumberTZ-24035
  • Home
  • Shear Wave Quick Change Transducers

Shear Wave Quick Change Transducers

Shear-Wave-Quick-Change
Shear-Wave-Quick-Change-2

Shear Wave Quick Change Transducers are single element transducers with a threaded tip allowing angle beam wedges to be changed with minimum delay.


Summary

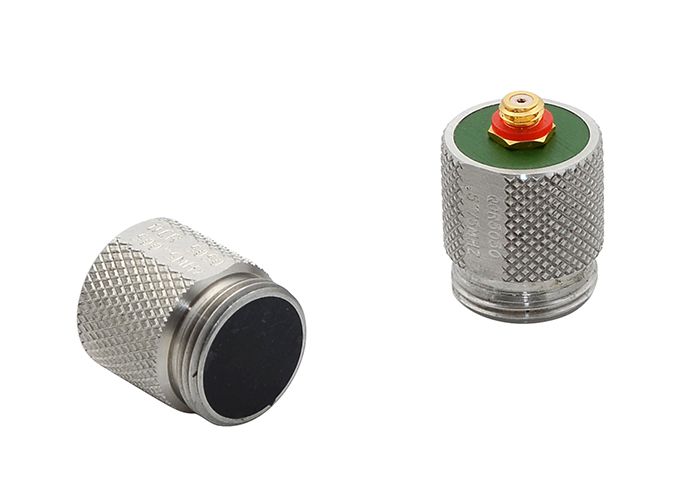

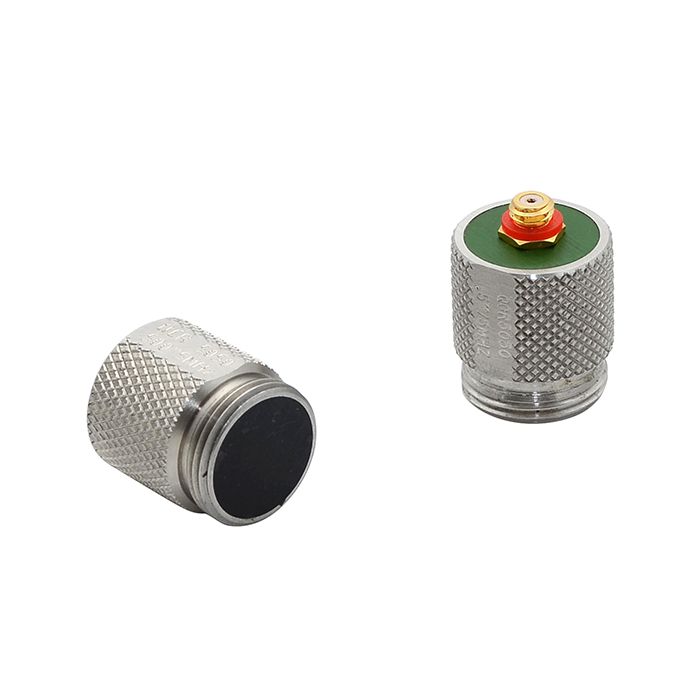

main product photo

Shear Wave Quick Change Transducers

Shear Wave Quick Change Transducers can be used when different frequencies are required using the same wedge, or where different angles are required using the same frequency transducer.

These transducers are ideal for inspecting curved surfaces and hard to reach areas.

Shear Wave Quick Change Transducers can be fixed to wedges of different angles to produce shear wave measurements.

When used in conjunction with the ‘Trigonometry’ feature of the gauge, the transducer will produce instrumental flaw detection sound shear waves.

Wedge Options

A range of transducer wedges available

Click Here
Technical Specification
Shear Wave Quick Change Transducers
Connector Type Suitable for
Part Number Probe Diameter Probe Characteristic
Damping
Microdot
FX71
FX81
2.25MHz Shear Wave - Quick Change Transducers
Used for General weld inspection
T-5025-1845
1/4"
Standard
G
T-5025-1855
1/4"
Standard
R
T-5025-1865
1/4"
Composite
G
T-5035-1845
3/8”
Standard
G
T-5035-1855
3/8”
Standard
R
T-5035-1865
3/8”
Composite
G
T-5045-1845
1/2"
Standard
G
T-5045-1855
1/2"
Standard
R
T-5045-1865
1/2"
Composite
P
3.50 MHz Shear Wave - Quick Change Transducers
Used for General weld inspection
T-5045-9865
1/2"
Composite
P
5.00 MHz Shear Wave - Quick Change Transducers
Used for General weld inspection
T-5025-2845
1/4"
Standard
G
T-5025-2855
1/4"
Standard
R
T-5025-2865
1/4"
Composite
G
T-5035-2845
3/8”
Standard
G
T-5035-2855
3/8”
Standard
R
T-5035-2865
3/8”
Composite
G
T-5045-2845
1/2"
Standard
G
T-5045-2855
1/2"
Standard
R
T-5045-2865
1/2"
Composite
G
10.00 MHz Shear Wave - Quick Change Transducers
Used for General weld inspection
T-5025-4855
1/4"
Standard
R
T-5025-4845
1/4"
Standard
G
T-5025-4865
1/4"
Composite
P
T-5045-4845
1/2"
Standard
G
T-5045-4855
1/2"
Standard
R
S - Standard Undamped Transducer
G - High Gain Damping Transducers
R - Resolution Transducer
Part Numbers
Shear Wave Quick Change Transducers
  • 2.25MHz 1/4" Shear Wave - Quick Change Transducers - Standard - High Gain
    • Part Number : T-5025-1845
  • 2.25MHz 1/4" Shear Wave - Quick Change Transducers - Standard - Resolution
    • Part Number : T-5025-1855
  • 2.25MHz 1/4" Shear Wave - Quick Change Transducers - Composite - High Gain
    • Part Number : T-5025-1865
  • 2.25MHz 3/8" Shear Wave - Quick Change Transducers - Standard - High Gain
    • Part Number : T-5035-1845
  • 2.25MHz 3/8" Shear Wave - Quick Change Transducers - Standard - Resolution
    • Part Number : T-5035-1855
  • 2.25 MHz 3/8" Shear Wave - Quick Change Transducers - Composite - High Gain
    • Part Number : T-5035-1865
  • 2.25MHz 1/2" Shear Wave - Quick Change Transducers -Standard - High Gain
    • Part Number : T-5045-1845
  • 2.25MHz 1/2" Shear Wave - Quick Change Transducers - Standard - Resolution
    • Part Number : T-5045-1855
  • 2.25 MHz 1/2" Shear Wave - Quick Change Transducers - Composite
    • Part Number : T-5045-1865
  • 3.50 MHz 1/2" Shear Wave - Quick Change Transducers - Composite
    • Part Number : T-5045-9865
  • 5.00 MHz 1/4" Shear Wave - Quick Change Transducers - Standard - High Gain
    • Part Number : T-5025-2845
  • 5.00 MHz 1/4" Shear Wave - Quick Change Transducers - Resolution
    • Part Number : T-5025-2855
  • 5.00 MHz 1/4" Shear Wave - Quick Change Transducers - Composite - High Gain
    • Part Number : T-5025-2865
  • 5.00 MHz 3/8" Shear Wave - Quick Change Transducers - Composite - High Gain
    • Part Number : T-5035-2865
  • 5.00 MHz 3/8" Shear Wave - Quick Change Transducers - Standard - High Gain
    • Part Number : T-5035-2845
  • 5.00 MHz 1/2" Shear Wave - Quick Change Transducers - Standard - Resolution
    • Part Number : T-5045-2855
  • 5.00 MHz 1/2" Shear Wave - Quick Change Transducers - High Gain
    • Part Number : T-5045-2845
  • 5.00 MHz 1/2" Shear Wave - Quick Change Transducers - Composite - High Gain
    • Part Number : T-5045-2865
  • 5.00 MHz 3/8" Shear Wave - Quick Change Transducers - Standard - Resolution
    • Part Number : T-5035-2855
  • 10.00 MHz 1/4" Shear Wave - Quick Change Transducers - Standard - Resolution
    • Part Number : T-5025-4855
  • 10.00 MHz 1/4" Shear Wave - Quick Change Transducers - Standard - High Gain
    • Part Number : T-5025-4845
  • 10.00 MHz 1/4" Shear Wave - Quick Change Transducers - Composite
    • Part Number : T-5025-4865
  • 10.00 MHz 1/2" Shear Wave - Quick Change Transducers - Standard - High Gain
    • Part Number : T-5045-4845
  • 10.00 MHz 1/2" Shear Wave - Quick Change Transducers - Standard - Resolution
    • Part Number : T-5045-4855

Accessories
Shear Wave Quick Change Transducers
  • Part Number: V-000-0001
  • Part Number: V-000-0003
  • Part Number: V-000-0004
  • Part Number: V-000-0002
  • Part Number: N-104-0070
  • Part Number: N-104-0000
  • Part Number: N-104-0020
  • Part Number: TL-24030-5
  • Part Number: N-204-0000
  • Part Number: N-204-0020
  • Part Number: N-104-0021
  • Part Number: TL-24031
  • Part Number: TL-24032
  • Part Number: X-132-0000
  • Part Number: X-532-0000
  • Part Number: X-533-0000
  • Part Number: X-152-0000
  • Part Number: X-752-0000
  • Part Number: F-000-7103
  • Part Number: F-000-7102
  • Part Number: X-633-0000
  • Part Number: TZ-24035
