Shear Wave Dual Transducers

Shear-Wave-Dual-small

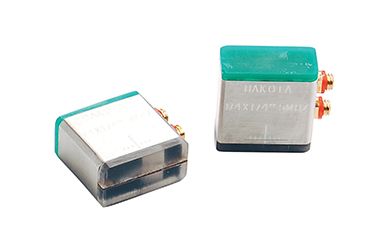

Shear Wave Dual Transducers are dual element transducers with high near surface resolution, ideal for detecting small, near surface cracks and weld inspection.

  • Summary

    • Summary

    • Potted in durable cast housing, the transducers are available in a variety of angles, including 45°, 60° or 70°, for producing the required shear waves.

      The Shear Wave Dual Transducers are used in conjunction with the “Trigonometry” function of the gauge.

  • Technical Information
    • Technical Specification
      Shear Wave Dual Transducers
      Connector Type Suitable for
      Part Number Probe Diameter
      Angle
      		 Probe Characteristic
      Damping
      Microdot
      Top
      End
      FX70
      FX71
      FX80
      FX81
      1.00 MHz Shear Wave - Dual Transducers
      PCDA251##E
      1/4 x 1/4"
      45°, 60°, 70°*
      Composite
      M
      PCDA25371##E
      1/4 x 3/8"
      45°, 60°, 70°*
      Composite
      M
      PCDA371##E
      3/8 x 3/8"
      45°, 60°, 70°*
      Composite
      M
      PCDA501##E
      1/2 x 1/2"
      45°, 60°, 70°*
      Composite
      M
      PCDA251##T
      1/4 x 1/4"
      45°, 60°, 70°*
      Composite
      M
      PCDA25371##T
      1/4 x 3/8"
      45°, 60°, 70°*
      Composite
      M
      PCDA371##T
      3/8 x 3/8"
      45°, 60°, 70°*
      Composite
      M
      PCDA501##T
      1/2 x 1/2"
      45°, 60°, 70°*
      Composite
      M
      2.25 MHz Shear Wave - Dual Transducers
      CDA2525##E
      1/4 x 1/4"
      45°, 60°, 70°*
      Standard
      M
      CDA253725##E
      1/4 x 3/8"
      45°, 60°, 70°*
      Standard
      M
      CDA3725##E
      3/8 x 3/8"
      45°, 60°, 70°*
      Standard
      M
      CDA5025##E
      1/2 x 1/2"
      45°, 60°, 70°*
      Standard
      M
      CDA2525##T
      1/4 x 1/4"
      45°, 60°, 70°*
      Standard
      M
      CDA253725##T
      1/4 x 3/8"
      45°, 60°, 70°*
      Standard
      M
      CDA3725##T
      3/8 x 3/8"
      45°, 60°, 70°*
      Standard
      M
      CDA5025##T
      1/2 x 1/2"
      45°, 60°, 70°*
      Standard
      M
      5.00 MHz Shear Wave - Dual Transducers
      CDA2550##E
      1/4 x 1/4"
      45°, 60°, 70°*
      Standard
      M
      CDA253750##E
      1/4 x 3/8"
      45°, 60°, 70°*
      Standard
      M
      CDA3750##E
      3/8 x 3/8"
      45°, 60°, 70°*
      Standard
      M
      CDA5050##E
      1/2 x 1/2"
      45°, 60°, 70°*
      Standard
      M
      CDA2550##T
      1/4 x 1/4"
      45°, 60°, 70°*
      Standard
      M
      CDA253750##T
      1/4 x 3/8"
      45°, 60°, 70°*
      Standard
      M
      CDA3750##T
      3/8 x 3/8"
      45°, 60°, 70°*
      Standard
      M
      CDA5050##T
      1/2 x 1/2"
      45°, 60°, 70°*
      Standard
      M
      * Shear Wave Transducers are available in 45, 60 & 70 angles. Replace ## within the part number with 45 for the 45° angle, 60 for the 60° degree angle and 70 for the 70° angle.
      M - Medium Damped Transducer
  • Part Numbers
    • Part Numbers
      Shear Wave Dual Transducers
      • 2.25 MHz 1/2 x 1/2" Shear Wave - Dual Transducers - 45°, 60°, 70° - Standard - Medium Damped - Microdot Top
        • Part Number : CDA5025##T
      • 2.25 MHz 3/8 x 3/8" Shear Wave - Dual Transducers - 45°, 60°, 70° - Standard - Medium Damped - Microdot Top
        • Part Number : CDA3725##T
      • 5.00 MHz 1/4 x 1/4" Shear Wave - Dual Transducers - 45°, 60°, 70° - Standard - Medium Damped - Microdot End
        • Part Number : CDA2550##E
      • 5.00 MHz 1/4 x 3/8" Shear Wave - Dual Transducers - 45°, 60°, 70° - Standard - Medium Damped - Microdot End
        • Part Number : CDA253750##E
      • 5.00 MHz 3/8 x 3/8" Shear Wave - Dual Transducers - 45°, 60°, 70° - Standard - Medium Damped - Microdot End
        • Part Number : CDA3750##E
      • 5.00 MHz 1/2 x 1/2" Shear Wave - Dual Transducers - 45°, 60°, 70° - Standard - Medium Damped - Microdot End
        • Part Number : CDA5050##E
      • 5.00 MHz 1/4 x 1/4" Shear Wave - Dual Transducers - 45°, 60°, 70° - Standard - Medium Damped - Microdot Top
        • Part Number : CDA2550##T
      • 5.00 MHz 1/4 x 3/8" Shear Wave - Dual Transducers - 45°, 60°, 70° - Standard - Medium Damped - Microdot Top
        • Part Number : CDA253750##T
      • 5.00 MHz 3/8 x 3/8" Shear Wave - Dual Transducers - 45°, 60°, 70° - Standard - Medium Damped - Microdot Top
        • Part Number : CDA3750##T
      • 5.00 MHz 1/2 x 1/2" Shear Wave - Dual Transducers - 45°, 60°, 70° - Standard - Medium Damped - Microdot Top
        • Part Number : CDA5050##T
      • 2.25 MHz 1/4 x 3/8" Shear Wave - Dual Transducers - 45°, 60°, 70° - Standard - Medium Damped - Microdot Top
        • Part Number : CDA253725##T
      • 2.25 MHz 1/4 x 1/4" Shear Wave - Dual Transducers - 45°, 60°, 70° - Standard - Medium Damped - Microdot Top
        • Part Number : CDA2525##T
      • 2.25 MHz 1/2 x 1/2" Shear Wave - Dual Transducers - 45°, 60°, 70° - Standard - Medium Damped - Microdot End
        • Part Number : CDA5025##E
      • 2.25 MHz 3/8 x 3/8" Shear Wave - Dual Transducers - 45°, 60°, 70° - Standard - Medium Damped - Microdot Top
        • Part Number : CDA3725##E
      • 2.25 MHz 1/4 x 3/8" Shear Wave - Dual Transducers - 45°, 60°, 70° - Standard - Medium Damped - Microdot End
        • Part Number : CDA253725##E
      • 2.25 MHz 1/4 x 1/4" Shear Wave - Dual Transducers - 45°, 60°, 70° - Standard - Medium Damped - Microdot End
        • Part Number : CDA2525##E
      • 1.00 MHz 1/2 x 1/2" Shear Wave - Dual Transducers - 45°, 60°, 70° - Composite - Medium Damped - Microdot Top
        • Part Number : PCDA501##T
      • 1.00 MHz 3/8 x 3/8" Shear Wave - Dual Transducers - 45°, 60°, 70° - Composite - Medium Damped - Microdot Top
        • Part Number : PCDA371##T
      • 1.00 MHz 1/4 x 3/8" Shear Wave - Dual Transducers - 45°, 60°, 70° - Composite - Medium Damped - Microdot Top
        • Part Number : PCDA25371##T
      • 1.00 MHz 1/4 x 1/4" Shear Wave - Dual Transducers - 45°, 60°, 70° - Composite - Medium Damped - Microdot Top
        • Part Number : PCDA251##T
      • 1.00 MHz 1/2 x 1/2" Shear Wave - Dual Transducers - 45°, 60°, 70° - Composite - Medium Damped - Microdot End
        • Part Number : PCDA501##E
      • 1.00 MHz 3/8 x 3/8"Shear Wave - Dual Transducers - 45°, 60°, 70° - Composite - Medium Damped - Microdot End
        • Part Number : PCDA371##E
      • 1.00 MHz 1/4 x 3/8" Shear Wave - Dual Transducers - 45°, 60°, 70° - Composite - Medium Damped - Microdot End
        • Part Number : PCDA25371##E
      • 1.00 MHz 1/4 x 1/4" Shear Wave - Dual Transducers - 45°, 60°, 70° - Composite - Medium Damped - Microdot End
        • Part Number : PCDA251##E
  • Accessories
    • Accessories
      Shear Wave Dual Transducers
      • Part NumberV-000-0001
      • Part NumberV-000-0003
      • Part NumberV-000-0004
      • Part NumberV-000-0002
      • Part NumberN-104-0070
      • Part NumberN-104-0000
      • Part NumberN-104-0020
      • Part NumberTL-24030-5
      • Part NumberN-204-0000
      • Part NumberN-204-0020
      • Part NumberN-104-0021
      • Part NumberTL-24031
      • Part NumberTL-24032
      • Part NumberX-132-0000
      • Part NumberX-532-0000
      • Part NumberX-533-0000
      • Part NumberX-152-0000
      • Part NumberX-752-0000
      • Part NumberF-000-7103
      • Part NumberF-000-7102
      • Part NumberX-633-0000
      • Part NumberTZ-24035
  • Home
  • Shear Wave Dual Transducers

Shear Wave Dual Transducers

Shear-Wave-Dual-small

Shear Wave Dual Transducers are dual element transducers with high near surface resolution, ideal for detecting small, near surface cracks and weld inspection.

Summary

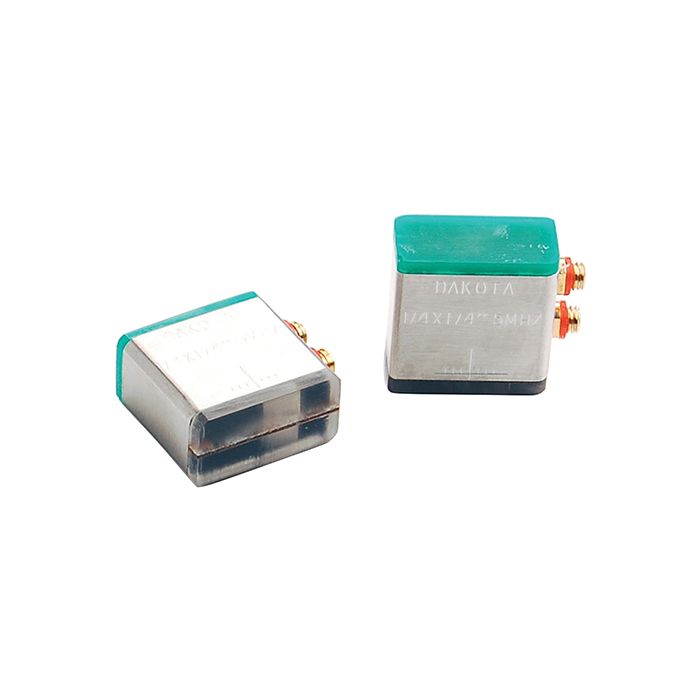

main product photo
