Dakota BT2-DL Benchtop Bolt Tension Monitor

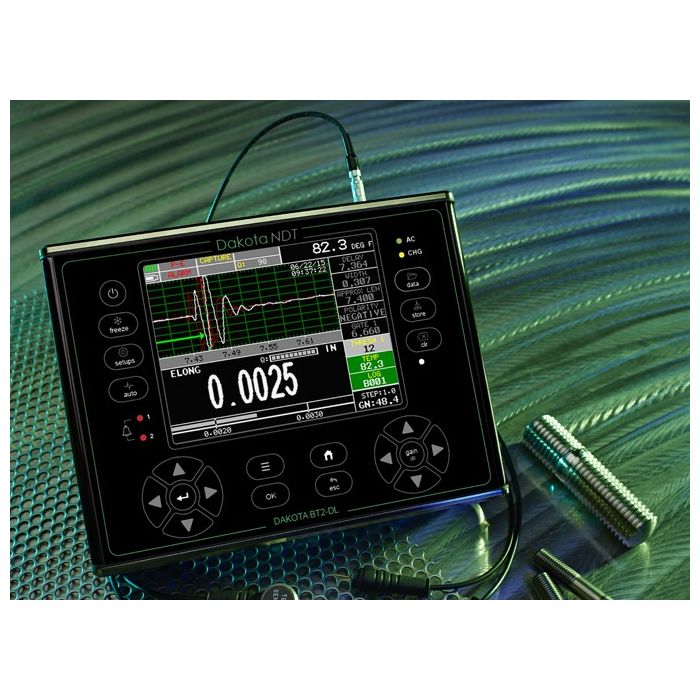

The Dakota BT2-DL is a high-precision benchtop Bolt Tension Monitor designed to measure bolt tension, elongation, load, and stress using advanced ultrasonic technology. Unlike standard torque methods, the BT2-DL provides accuracy within ±0.00001 inches (0.0001 mm) for fasteners up to 100 feet in length.
- Summary
-
Summary
-
It incorporates all of the great features of the Dakota BT1-DL Bolt Tension Monitor, with some added benefits in terms of features, hardware, speed, and length. Dakota BT2-DL Ultrasonic Bolt Tension Monitor very accurately measures fasteners up to 100 feet in length, and sports our very best effort to date…in terms of overall performance/power!
Transducer Options
A wide range of Single Element Contact Transducers available
-
- Key Features
-
Key Features
Dakota BT2-DL Benchtop Bolt Tension Monitor
Firmware Upgrades
Regularly checking and updating your firmware is crucial for maintaining performance, and ensuring compatibility with new features.
Make sure your Dakota Bolt Tension Monitor is running the latest firmware, select your gauge below.
Dakota Ultrasonics Max II
Dakota NDT BT2-DL
-
- Product Features
-
Dakota NDT BT Benchtop Bolt Tension Monitor
Product FeaturesDakota BT2-DL Benchtop Bolt Tension Monitor
Model BT2-DL Display Mode Material thickness digits display A-Scan Rectified +/- (half wave view), or RF (full waveform view)Measurement Range PE - 25.4 - 25,400mm (1 - 999”), EE, EEVResolution +/- 0.0001mm (+/- 0.00001")Measurement Rate Manual 8 readings per secondVelocity Calibration Range 1250 - 13,995m/s (0.0492 - 0.5510 in/μs)Temperature Compensation Limit Alarm Mode Memory and Data Logging 4GB internal memory
Sequential and grid batching
Bitmap graphic capture and capture viewerCalibration Options Automatic, fixed, single and two-pointTransducer Probe Type Single elementTransducer Frequency Range 1 - 10MHzDisplay Blanview sunlight readable QVGA TFT color display (320 x 240 pixels)
Viewable area 4.54 x 3.40 in (115.2 x 86.4 mm), or 5.7 in (144.78 mm) diagonalUnits (Selectable) in/mm, μsLED Backlight On / Off/ AutoRepeatability / Stability Indicator Low Battery Indicator Battery Save Mode AutoTransducer Connector Type Microdot, Lemo and BNCUSB-C Interface Temperature Sensor Screen Refresh Rate 60HzTiming Precision TCXO timing with single shot 100 MHz 8 bit ultra-low power digitizerPulser Type Spike, Square Wave & Tone Burst.Pulser Voltage: 100 – 400v
Selectable step options Spike, Thin, Wide, HV Spike, HV Thin, HV Wide, TB .5MHz, TB 1MHz, TB 2MHz, TB 5MHz, TB 10 MHz. Spike 40 ns, Square Wave 80 to 400 ns, Tone Burst 50 ns to 1 microsecondDamping 50, 75, 100, 300, 600, & 1500ohmsFrequency Band Broadband 1.8 - 19 MHz (-3dB) filterHorizontal Linearity +/- 0.4% FSWVertical Linearity +/- 1% FSHAmplifier Linearity +/- 1 dBAmplitude Measurement 0 to 100% FSH, with 1% resolutionDelay 25,400 mm (0 - 999.9”) at steel velocityMeasurement Gate Three independent gates depending on measurement mode selected, with audible and visual alarms. Amplitude 5-95%, 1% stepsSetups 64 custom user defined setups; factory setups can also be edited by the userAuto Set Automates the detection, scope, and display setting process for each individual boltAlarm Limits Adjustable Hi/Low tolerances with visual LED’s and audible beeperField Calibration Vector or Regression correction curve for increased accuracy using Load & StressAlarm Limits Bar Hi & Lo alarm limits for displaying an acceptable tolerance rangeDetections Zero CrossingTime NanosecondsElongation Change in length (in/mm)Load Force load applied (pounds KIP, or megapascals MPa)Stress Force for unit area stress applied (inches per inch or millimeters per millimeter)%Strain Ratio of elongation to effective lengthBolt Materials Select types from a preset or custom listGlue-On Available for short bolts with minimal/short elongations to eliminate transducer placement errors
-
Dakota NDT BT Benchtop Bolt Tension Monitor
- Technical Information
-
Technical SpecificationDakota BT2-DL Benchtop Bolt Tension Monitor
Part Number Description Certificate Z-197-0001 Dakota BT2-DL Benchtop Bolt Tension Monitor (Max II)
Operating Temperature -10 to 60ºC (14 to 140ºF) Power Supply Lithium Ion Pack (supplied) or 6 x AA batteries Battery Life Lithium Pack: 18hrs, Alkaline: 12 hrs, Nicad: 5 hrs, NI-MH: 12 hrs Gauge Weight 2.04kg (4.5lbs) - including batteries Gauge Dimensions 216 x 165 x 70mm (8.5 x 6.5 x 2.5”) Packing List Unit, Lithium Pack, 4 oz. Bottle of Couplant, USB Type A to Type B Transfer Cable, Carrying Case, 10’ Lemo 00 to Microdot Transducer Cable, PC Utility Software (download from website), Operation Manual and Certification. ● Certificate supplied as standard
-
- Standards
-
StandardsDakota BT2-DL Benchtop Bolt Tension Monitor
Factory calibration traceable to NIST & MIL-STD-45662A
-
- Downloads
-
Downloads
-
Dakota BT2-DL Benchtop Bolt Tension Monitor Instruction Manual
-
Dakota BT2-DL Benchtop Bolt Tension Monitor Datasheet
-
Dakota BT2-DL CE Certificate - FCC
-
Dakota BT2-DL CE Certificate - EN
-
Dakota BT2-DL CE Certificate - Compliance
- Part Numbers
-
Part NumbersDakota BT2-DL Benchtop Bolt Tension Monitor
-
Dakota BT2-DL Benchtop Bolt Tension Monitor (Max II)- Part Number : Z-197-0001
-
Dakota BT2-DL Benchtop Bolt Tension Monitor
The Dakota BT2-DL is a high-precision benchtop Bolt Tension Monitor designed to measure bolt tension, elongation, load, and stress using advanced ultrasonic technology. Unlike standard torque methods, the BT2-DL provides accuracy within ±0.00001 inches (0.0001 mm) for fasteners up to 100 feet in length.
Summary
Dakota BT2-DL Benchtop Bolt Tension Monitor
It incorporates all of the great features of the Dakota BT1-DL Bolt Tension Monitor, with some added benefits in terms of features, hardware, speed, and length. Dakota BT2-DL Ultrasonic Bolt Tension Monitor very accurately measures fasteners up to 100 feet in length, and sports our very best effort to date…in terms of overall performance/power!
Transducer Options
A wide range of Single Element Contact Transducers available
Downloads-
Dakota BT2-DL Benchtop Bolt Tension Monitor Instruction Manual
-
Dakota BT2-DL Benchtop Bolt Tension Monitor Datasheet
-
Dakota BT2-DL CE Certificate - FCC
-
Dakota BT2-DL CE Certificate - EN
-
Dakota BT2-DL CE Certificate - Compliance
Key Features
Dakota BT2-DL Benchtop Bolt Tension Monitor
Firmware Upgrades
Regularly checking and updating your firmware is crucial for maintaining performance, and ensuring compatibility with new features.
Make sure your Dakota Bolt Tension Monitor is running the latest firmware, select your gauge below.
Dakota Ultrasonics Max II
Dakota NDT BT2-DL
Dakota NDT BT Benchtop Bolt Tension MonitorProduct FeaturesDakota BT2-DL Benchtop Bolt Tension MonitorModel BT2-DL Display Mode Material thickness digits display A-Scan Rectified +/- (half wave view), or RF (full waveform view)Measurement Range PE - 25.4 - 25,400mm (1 - 999”), EE, EEVResolution +/- 0.0001mm (+/- 0.00001")Measurement Rate Manual 8 readings per secondVelocity Calibration Range 1250 - 13,995m/s (0.0492 - 0.5510 in/μs)Temperature Compensation Limit Alarm Mode Memory and Data Logging 4GB internal memory
