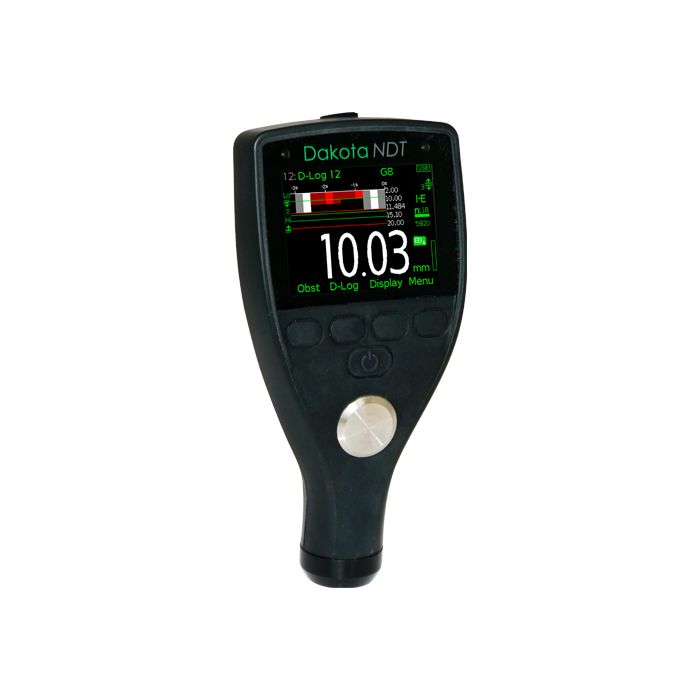

Dakota PCX8-DL Precision Thickness Gauge (PTG)
The Dakota PCX8-DL Precision Thickness Gauge comes with all the features and functionality necessary for precisely measuring material thickness on virtually any material.
- Sommaire
-
Sommaire
-
Accurate
Measures thin materials with pinpoint accuracy
Flexible & easy to use, the Dakota PCX8-DL Precision Thickness Gauge has a measurement range from 0.15mm (0.006”) to 25.40mm (1.000”) with up to ±1% accuracy, across three measurement modes; Interface Echo (IE), Echo Echo (EE) & Plastic mode (PLAS).
Powerful
Store each measurement for further analysis
Up to 100,000 readings can be saved into the gauge memory as each measurement is taken, which can be downloaded later into an inspection application or into DakMaster™ for further analysis and reporting.
Wireless Connectivity
Seamlessly connect to PC
Connect the Dakota PCX8-DL Precision Thickness Gauge via Bluetooth® or USB to a PC & download the data into an inspection application or into DakMaster™ Software for instant report generation.
Features:
- Interface Echo (I-E) Echo-Echo (E-E) & Plastic Mode (PLAS) measurement modes
- Measurement range from 0.15mm (0.006") to 25.40mm (1.00")
- 2-Point, 1-Point, Material & Factory Calibration options
- Three user programmable calibration memories
- User selectable measurement rate; 4, 8, 16 readings per second
- User selectable reading resolution; 0.1mm (0.01") or 0.01mm (0.001")
- Scan Mode
- Readings, selected statistics, Bar Graph, Run Chart, B-Scan & Differential Mode
- Gauge memory; stores up to 100,000 readings in up to 1,000 sequential or grid batches
- User definable upper and lower limits with audible & visual pass/fail warnings
- USB and Bluetooth® data output to DakMaster™
Dakota PCX Precision Thickness Gauge Application Notes
Explore how to get the most out of your Dakota PCX Gauge.
-
- Principales caractéristiques
-
Principales caractéristiques
Dakota PCX8-DL Precision Thickness Gauge (PTG)
Customisable
Choose & customise the reading display
The Dakota PCX8-DL Precision Thickness Gauge has a choice of display modes allowing the user to select the most appropriate for their needs; Readings, Selected Statistics, Bar Graph, Run Chart & Differential Mode.
Measurement Modes
Interface Echo (IE); The total thickness from the top of any coating through to the material density boundary (typically the back-wall) is measured. Suitable for measurement of materials between 1.65mm and 25.4mm (0.065” to 1”) thick.
Echo Echo (EE); ideal for measuring thin materials, the material thickness from the top surface of the material to the material density boundary (typically the backwall) is measured. Suitable for measurement of materials between 0.15mm and 10.15mm (0.006” to 0.4”) thick.
Plastic Mode (PLAS); specifically used for measuring very thin plastics between 0.15mm and 5mm (0.006” to 0.197”) thick. A graphite delay line is required when using this mode.
User Definable Upper and Lower Limits
The Dakota PCX8-DL Precision Thickness Gauge has user definable upper and lower limits with audible and visual pass/fail warnings allowing the user to compare readings to predefined values. The Dakota PCX8-DL Precision Thickness Gauge can store up to 40 pre-programmed limits which can be set for individual readings or for each batch.
If a measurement is taken which falls outside set limits, the reading value and the limit icon turn red, the red LED flashes and the alarm beeps providing immediate indication of problem areas.
Calibration Options
The Dakota PCX8-DL Precision Thickness Gauge has a number of calibration options including the 1-Point & 2-Point method and Velocity. Alternatively, the user can select one of 39 pre-set materials stored within the gauge including; aluminium, steel, stainless steel, cast iron, plexiglass, PVC, polystyrene and polyurethane.
The Dakota PCX8-DL Precision Thickness Gauge allows users to store into memory up to three calibrations. Once saved the user can select a calibration without the need to re-calibrate the gauge. Using the gauge’s alpha-numeric function, calibration memories can be re-named to suit the calibration setting.
-
- caractéristiques du produit
-
caractéristiques du produitDakota PCX8-DL Precision Thickness Gauge (PTG)
Model PCX8-DL PT Easy to use menu structure in multiple languages Robuste, résistant à l’eau, à la poussière et aux chocs: équivalent à l’IP54 PT Bright colour screen with permanent backlight Capteur de lumière ambiante avec luminosité réglable PT Scratch and solvent resistant display; 2.4" (6cm) TFT PT Large positive feedback buttons Prise d’alimentation USB: via PC PT Gauge software updates via ElcoMaster® Software Jauge garantie 2 ans2 PT Limits: 40 definable audible & visual pass/fail warnings Mode de mesure Écho-Écho (E-E) Interface Écho (I-E) Mode Plastique (PLAS) Taux de mesure 4, 8, 16Hz 4, 8, 16Hz3Plage d’épaisseur4 E-E 0,15 - 10,15mm (0,006 - 0,400") I-E 1,65 - 25,40mm (0,065 - 1,000") PLAS 0,15 - 5,000mm (0,006 - 0,197") Unités de mesure mm ou inches m/s, inch/μs Témoin de stabilité / répétabilité Mode d’affichage Mesures Statistiques sélectionnées Barre graphique d'épaisseur scannée Mesures et Différentiel Graphe de séquence Vue transversale B-Scan Résolution de lecture au choix Basse; 0,1mm, 0,01 Inch, 10m/s, ou 0,001 in/μs Haute; 0,01mm, 0,001 Inch, 1m/s, ou 0,0001 in/μs PTG Statistics Nombre de mesures, n ; Valeur moyenne, x ; Ecart type, σ. Valeur mini, Lo ; Valeur maxi, Hi Valeur de limite basse haute Valeur de lecture de plage Valeur nominale Nombre de mesures inférieures à la limite basse Nombre de mesures supérieures à la limite haute Options de calibration Zéro (à l'aide du disque Zéro intégré) 1 - point 2 - points Sélection du matériau; 39 matériaux pré-sélectionnés Usine: retour à la calibration Usine Vélocité (vitesse du son) Valeur d'épaisseur connue Caractéristiques de calibration Verrou Calibration; grâce au 'Blocage PIN' en option Fonction 'Test calibration' Mémoire calibration: 3 modèles de calibration programmables Avertissement mesure hors calibration Acquisition de données Nombre de mesures 100 000Nombre de lots 1 000Lot séquentiel Lot en grille Mode Lot taille fixe; avec liaison vers lot Fonction 'Obstruct': pour entrer 'Obst' dans un emplacement de la grille Supprimer la dernière mesure Horodatage Revoir, effacer et supprimer les lots Mode d’affichage Nom de lot alphanumérique; choix utilisateur Revoir lot sous forme graphique Sortie de données USB; vers PC Bluetooth® vers PC, Android™ et iOS devices Logiciel DakMaster™ Type de sonde Mono-composant Reconnaissance auto sonde
-
- Informations techniques
-
Spécifications techniquesDakota PCX8-DL Precision Thickness Gauge (PTG)
Numéro d'article La description Certificat PCX8-DL Dakota PCX8-DL Precision Thickness Gauge
Measurement Range1 Interface Écho (I-E) 1,65 - 25,40mm (0,065 - 1,00”) Écho-Écho (E-E) 0,15 - 10,15mm (0,006 - 0,400”) Measurement Accuracy2 Mode Plastique (PLAS) 0,15 - 5,00mm (0,006 - 0,197”) Interface Écho (I-E) ±0,015mm (1,65-2,99mm), ±0,5%(3,00-25,4mm) Mode Plastique (PLAS) ±0,015mm (0,15-2,99mm), ±0,5% (3,00-5,00mm) Température de fonctionnement -10 à 50°C (14 à 122°F) Type de pile 2 x piles AA Autonomie des piles3 Alcaline: 15 heures Lithium: 28 heures Poids de la jauge 210g (7,4oz) - avec piles, sans sonde Dimensions de la jauge 145 x 73 x 37mm (5,7 x 2,87 x 1,46”) - sans sonde Colisage Dakota PCX8-DL Ultrasonic Precision Thickness Gauge, 15MHz transducer (TXC15M0CM), ultrasonic couplant, 3 x screen protectors, wrist harness, 2 x AA batteries, plastic transit case, calibration certificate, USB cable, DakMaster™ Software, operating instructions 1 Dependent on material being measured & transducer being used.
2 On steel.
3 Approximate battery life, when in Continuous Reading Mode at a reading rate of 4Hz. Rechargeable batteries may differ.
● Calibration Certificate supplied as standard.
-
- Normes
-
NormesDakota PCX8-DL Precision Thickness Gauge (PTG)
EN 14127, EN 15317
-
- Téléchargements
-
Téléchargements
-
Elcometer PTG Jauge d'épaisseur de précision à ultrasons - Mode d’emploi
-
Elcometer PTG Jauge d'épaisseur de précision à ultrasons - Fiche technique
-
Elcometer PTG8 Jauge d'épaisseur de précision à ultrasons - Déclaration de Conformité
-
Elcometer Ultrasonic Couplant (Clear) Material Safety Data Sheet
-
Elcometer Ultrasonic Couplant (Blue) Material Safety Data Sheet
-
Elcometer Ultrasonic Couplant (High Temperature) Material Safety Data Sheet; Part Number T92015874X
-
Elcometer Ultrasonic Couplant (High Temperature) Material Safety Data Sheet; Part Number T92024034-9
- Numéro d'article
-
Numéro d'articleDakota PCX8-DL Precision Thickness Gauge (PTG)
-
Dakota PCX8-DL Precision Thickness Gauge- Numéro d'article : PCX8-DL
Dakota PCX8-DL Precision Thickness Gauge (PTG)
The Dakota PCX8-DL Precision Thickness Gauge comes with all the features and functionality necessary for precisely measuring material thickness on virtually any material.
Accurate
Measures thin materials with pinpoint accuracy
Flexible & easy to use, the Dakota PCX8-DL Precision Thickness Gauge has a measurement range from 0.15mm (0.006”) to 25.40mm (1.000”) with up to ±1% accuracy, across three measurement modes; Interface Echo (IE), Echo Echo (EE) & Plastic mode (PLAS).
Powerful
Store each measurement for further analysis
Up to 100,000 readings can be saved into the gauge memory as each measurement is taken, which can be downloaded later into an inspection application or into DakMaster™ for further analysis and reporting.
Wireless Connectivity
Seamlessly connect to PC
Connect the Dakota PCX8-DL Precision Thickness Gauge via Bluetooth® or USB to a PC & download the data into an inspection application or into DakMaster™ Software for instant report generation.
Sommaire
Dakota PCX8-DL Precision Thickness Gauge (PTG)
Features:
- Interface Echo (I-E) Echo-Echo (E-E) & Plastic Mode (PLAS) measurement modes
- Measurement range from 0.15mm (0.006") to 25.40mm (1.00")
- 2-Point, 1-Point, Material & Factory Calibration options
- Three user programmable calibration memories
- User selectable measurement rate; 4, 8, 16 readings per second
- User selectable reading resolution; 0.1mm (0.01") or 0.01mm (0.001")
- Scan Mode
- Readings, selected statistics, Bar Graph, Run Chart, B-Scan & Differential Mode
- Gauge memory; stores up to 100,000 readings in up to 1,000 sequential or grid batches
- User definable upper and lower limits with audible & visual pass/fail warnings
- USB and Bluetooth® data output to DakMaster™
Dakota PCX Precision Thickness Gauge Application Notes
Explore how to get the most out of your Dakota PCX Gauge.
Téléchargements-
Elcometer PTG Jauge d'épaisseur de précision à ultrasons - Mode d’emploi
-
Elcometer PTG Jauge d'épaisseur de précision à ultrasons - Fiche technique
-
Elcometer PTG8 Jauge d'épaisseur de précision à ultrasons - Déclaration de Conformité
-
Elcometer Ultrasonic Couplant (Clear) Material Safety Data Sheet
-
Elcometer Ultrasonic Couplant (Blue) Material Safety Data Sheet
-
Elcometer Ultrasonic Couplant (High Temperature) Material Safety Data Sheet; Part Number T92015874X
-
Elcometer Ultrasonic Couplant (High Temperature) Material Safety Data Sheet; Part Number T92024034-9
Principales caractéristiques
Dakota PCX8-DL Precision Thickness Gauge (PTG)
Customisable
Choose & customise the reading display
The Dakota PCX8-DL Precision Thickness Gauge has a choice of display modes allowing the user to select the most appropriate for their needs; Readings, Selected Statistics, Bar Graph, Run Chart & Differential Mode.
Measurement Modes
Interface Echo (IE); The total thickness from the top of any coating through to the material density boundary (typically the back-wall) is measured. Suitable for measurement of materials between 1.65mm and 25.4mm (0.065” to 1”) thick.
Echo Echo (EE); ideal for measuring thin materials, the material thickness from the top surface of the material to the material density boundary (typically the backwall) is measured. Suitable for measurement of materials between 0.15mm and 10.15mm (0.006” to 0.4”) thick.
Plastic Mode (PLAS); specifically used for measuring very thin plastics between 0.15mm and 5mm (0.006” to 0.197”) thick. A graphite delay line is required when using this mode.User Definable Upper and Lower Limits
The Dakota PCX8-DL Precision Thickness Gauge has user definable upper and lower limits with audible and visual pass/fail warnings allowing the user to compare readings to predefined values. The Dakota PCX8-DL Precision Thickness Gauge can store up to 40 pre-programmed limits which can be set for individual readings or for each batch.
If a measurement is taken which falls outside set limits, the reading value and the limit icon turn red, the red LED flashes and the alarm beeps providing immediate indication of problem areas.
Calibration Options
The Dakota PCX8-DL Precision Thickness Gauge has a number of calibration options including the 1-Point & 2-Point method and Velocity. Alternatively, the user can select one of 39 pre-set materials stored within the gauge including; aluminium, steel, stainless steel, cast iron, plexiglass, PVC, polystyrene and polyurethane.
The Dakota PCX8-DL Precision Thickness Gauge allows users to store into memory up to three calibrations. Once saved the user can select a calibration without the need to re-calibrate the gauge. Using the gauge’s alpha-numeric function, calibration memories can be re-named to suit the calibration setting.
caractéristiques du produitDakota PCX8-DL Precision Thickness Gauge (PTG)Model PCX8-DL PT Easy to use menu structure in multiple languages Robuste, résistant à l’eau, à la poussière et aux chocs: équivalent à l’IP54 PT Bright colour screen with permanent backlight Capteur de lumière ambiante avec luminosité réglable PT Scratch and solvent resistant display; 2.4" (6cm) TFT PT Large positive feedback buttons Prise d’alimentation USB: via PC PT Gauge software updates via ElcoMaster® Software Jauge garantie 2 ans2 PT Limits: 40 definable audible & visual pass/fail warnings Mode de mesure Écho-Écho (E-E) Interface Écho (I-E) Mode Plastique (PLAS) Taux de mesure 4, 8, 16Hz 4, 8, 16Hz3Plage d’épaisseur4 E-E 0,15 - 10,15mm (0,006 - 0,400") I-E 1,65 - 25,40mm (0,065 - 1,000") PLAS 0,15 - 5,000mm (0,006 - 0,197") Unités de mesure mm ou inches m/s, inch/μs Témoin de stabilité / répétabilité Mode d’affichage Mesures Statistiques sélectionnées Barre graphique d'épaisseur scannée Mesures et Différentiel Graphe de séquence Vue transversale B-Scan Résolution de lecture au choix Basse; 0,1mm, 0,01 Inch, 10m/s, ou 0,001 in/μs Haute; 0,01mm, 0,001 Inch, 1m/s, ou 0,0001 in/μs PTG Statistics Nombre de mesures, n ; Valeur moyenne, x ; Ecart type, σ. Valeur mini, Lo ; Valeur maxi, Hi Valeur de limite basse haute Valeur de lecture de plage Valeur nominale Nombre de mesures inférieures à la limite basse Nombre de mesures supérieures à la limite haute Options de calibration Zéro (à l'aide du disque Zéro intégré) 1 - point 2 - points Sélection du matériau; 39 matériaux pré-sélectionnés Usine: retour à la calibration Usine Vélocité (vitesse du son) Valeur d'épaisseur connue Caractéristiques de calibration Verrou Calibration; grâce au 'Blocage PIN' en option Fonction 'Test calibration' Mémoire calibration: 3 modèles de calibration programmables Avertissement mesure hors calibration Acquisition de données Nombre de mesures 100 000Nombre de lots 1 000Lot séquentiel Lot en grille Mode Lot taille fixe; avec liaison vers lot Fonction 'Obstruct': pour entrer 'Obst' dans un emplacement de la grille Supprimer la dernière mesure Horodatage Revoir, effacer et supprimer les lots Mode d’affichage Nom de lot alphanumérique; choix utilisateur Revoir lot sous forme graphique Sortie de données USB; vers PC Bluetooth® vers PC, Android™ et iOS devices Logiciel DakMaster™ Type de sonde Mono-composant Reconnaissance auto sonde Spécifications techniquesDakota PCX8-DL Precision Thickness Gauge (PTG)Numéro d'article La description Certificat PCX8-DL Dakota PCX8-DL Precision Thickness Gauge Measurement Range1 Interface Écho (I-E) 1,65 - 25,40mm (0,065 - 1,00”) Écho-Écho (E-E) 0,15 - 10,15mm (0,006 - 0,400”) Measurement Accuracy2 Mode Plastique (PLAS) 0,15 - 5,00mm (0,006 - 0,197”) Interface Écho (I-E) ±0,015mm (1,65-2,99mm), ±0,5%(3,00-25,4mm) Mode Plastique (PLAS) ±0,015mm (0,15-2,99mm), ±0,5% (3,00-5,00mm) Température de fonctionnement -10 à 50°C (14 à 122°F) Type de pile 2 x piles AA Autonomie des piles3 Alcaline: 15 heures Lithium: 28 heures Poids de la jauge 210g (7,4oz) - avec piles, sans sonde Dimensions de la jauge 145 x 73 x 37mm (5,7 x 2,87 x 1,46”) - sans sonde Colisage Dakota PCX8-DL Ultrasonic Precision Thickness Gauge, 15MHz transducer (TXC15M0CM), ultrasonic couplant, 3 x screen protectors, wrist harness, 2 x AA batteries, plastic transit case, calibration certificate, USB cable, DakMaster™ Software, operating instructions 1 Dependent on material being measured & transducer being used.
2 On steel.
3 Approximate battery life, when in Continuous Reading Mode at a reading rate of 4Hz. Rechargeable batteries may differ.
● Calibration Certificate supplied as standard. -
-
